T-BERD/MTS 5800 Portable Network Tester
Q UI CK CA RD
Measuring the Time Delay of a Satellite Antenna and Cable System
This quick card approximates the time delay from a satellite antenna and cable system to
an Edge Grand Master (EGM) or router operating as an EGM.
E Q U IP ME N T R E Q U I R E ME N T S
► T-BERD/MTS 5800 with Transport Software
Release V31.2.1 or greater
► Timing Expansion Module V2 (TEM V2)
► GNSS Antenna with known delay
(VIAVI provided Taoglas A.171,Taoglas
AA.162, Tallysman TW7882, or Maxtena
M9706CWT recommended)
► SMA Male Adapter to adapt to the connector
type on the antenna system under test.
C O N N E C T A N T E N N A U N D E R T E S T A N D C O MP L E T E S U R V E Y
1. Identify the connector type of the Satellite
Antenna system. If the connector is not SMA
male, connect an SMA male adapter to the cable
The TEM uses an SMA Female connector.
2. Connect the antenna cable system under test to
the female SMA connector on the TEM V2
(labeled Antenna).
3. Tighten the connector until the antenna is
securely attached.
4. Press the power button
set.
5. Activate the TEM V2 Timing Module, setup the
GNSS Receiver, Complete a survey, and verify
GNSS Reception as described in the following
quick card. When you configure the Antenna
Time Bias, select the Antenna Type for the VIAVI
supplied reference antenna, not the antenna
system under test:
•
T-BERD/MTS-5800 - Enabling the TEM V2
Timing Expansion Module
6. Wait for survey to complete and for Tuning
Status to reach at least Intermediate Tune.
T-BERD/MTS 5800 Portable Network Tester
to turn o, n the test
https://www.viavisolutions.com/en-us/products/timing-expansion-module-v2-tem-v2
VIAVI//Public

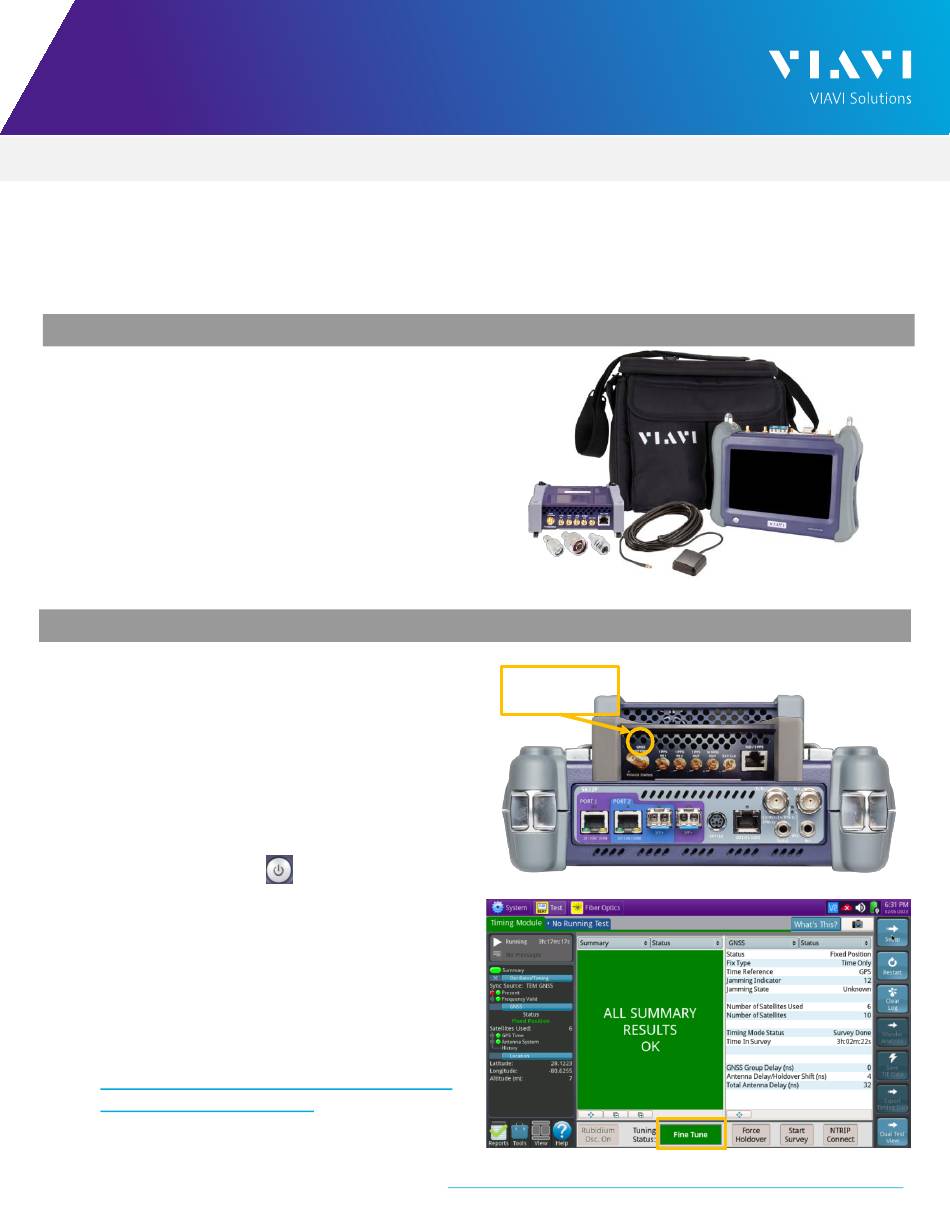

Figure 1: Equipment Requirements
TEM V2 GNSS
Antenna
Figure 2: TEM V2
Figure 3: TEM V2 Results Screen
