T-BERD/MTS 5800 Portable Network Tester
Q UI CK CA RD
Ethernet Y.1564 Layer 2 Multiple Stream Test
This quick card describes how to configure and run a Y.1564 Layer 2 Multiple Stream
Traffic Test for Metro Ethernet service activation.
•
T-BERD 5800 equipped with the following:
BERT software release V30.1.0 or greater
o
C5COS for multiple steam traffic generation
o
C510M1GE test option for 10/100/1000 Megabit
o
and 1 Gigabit Ethernet
C510GELAN test option for 10 Gigabit Ethernet
o
C525GE test option for 25 Gigabit Ethernet
o
C540GE test option for 40 Gigabit Ethernet
o
C550GE test option for 50 Gigabit Ethernet
o
C5100GE test option for 100 Gigabit Ethernet
o
•
Optical Transceiver supporting the speed to be tested (SFP or QSFP)
•
Cables to match the optical transceiver and the line under test
•
Fiber optic inspection microscope (P5000i or FiberChek Probe)
•
Fiber optic cleaning supplies
L A U N C H T E S T
Press the Power button
1.
T-BERD.
Press the Test icon
2.
screen to display the Launch Screen.
Using the Select Test menu, Quick Launch
3.
menu, or Job Manager, launch the Ethernet
Y.1564 SAMComplete Multiple Streams test on
Port 1 for the desired rate. For Example:
Ethernet ►1GigE Optical ►Y.1564 SAMComplete
►L2 Multiple Streams ►P1 Terminate.
Tap the
4.
Configuration (reset to defaults)"
T-BERD/MTS 5800 Portable Network Tester
to turn on the
at the top of the
button next to "Start a New
Figure 3: Y.1564 SAMComplete test
VIAVI//Public

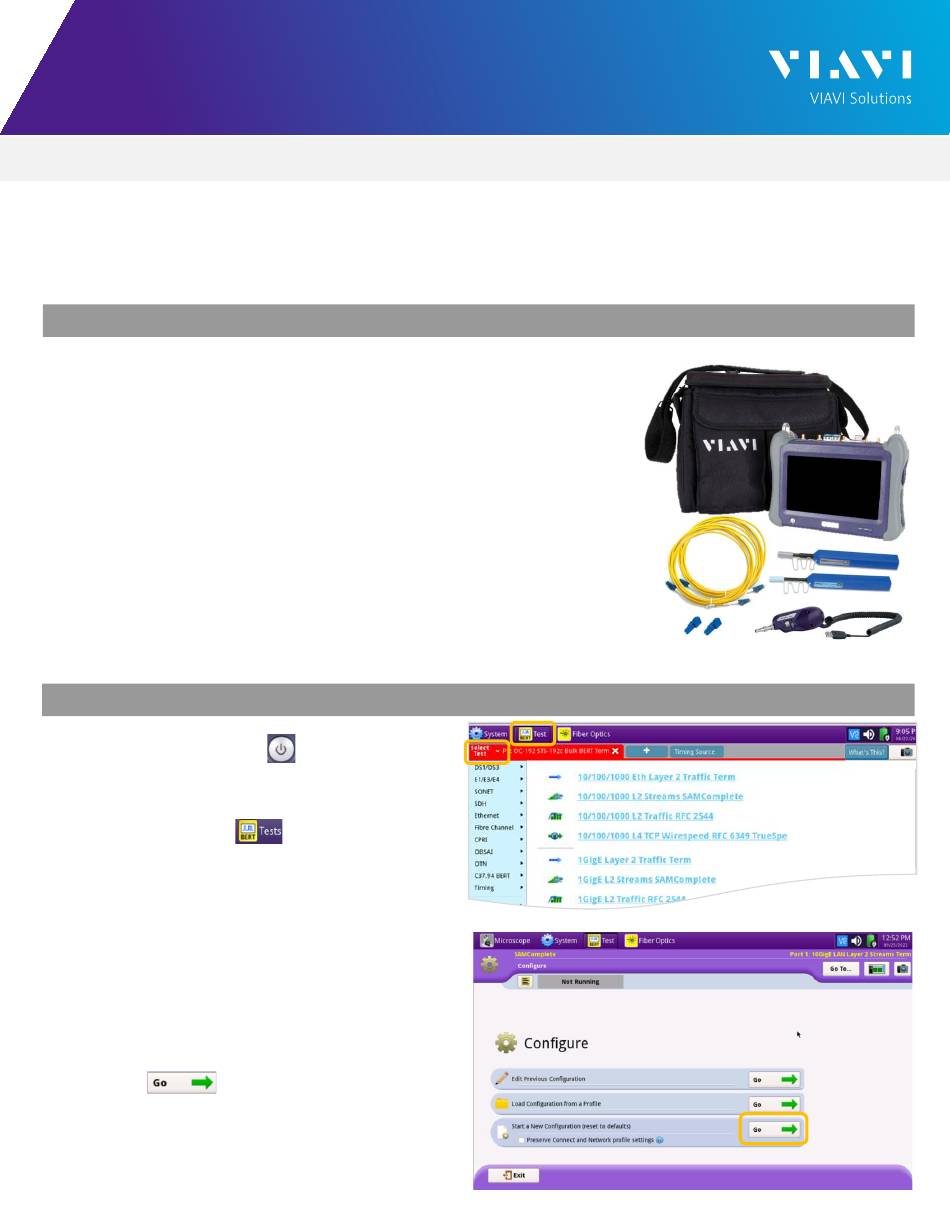

Figure 1: Equipment Requirements
Figure 2: Launch Screen
