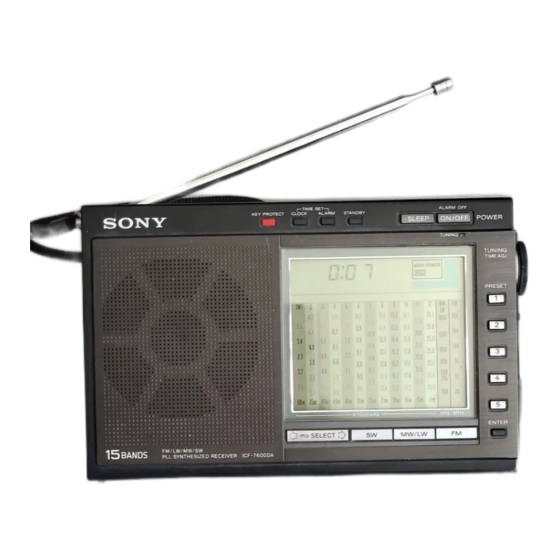

Sony ICF-7600DA Service Manual

Circuit system
Frequency range
Antennas
Speaker
Power output
Outputs
Power requirements
Battery life
mm
MICROFILM
AEP Model
UK Model
E Model
AUS Model
ICF-7600DA:
US Model
Canadian Model
ICF-7700:
SPECIFICATIONS
FM: Superheterodyne Dimensions Approx. 191.5 x 117 x 31.5 mm (w/h/d)
LW/MW/SW: Dual conversion superheterodyne (7° x 4° x 1% inches)
FM: US, Canadian model: 76.0—108.0 MHz including projecting parts and controls
Weight 607 g (1 Ib 5% oz)
AEP, UK, E, AUS model: 87.5—108.0 MHz
Supplied accessories Earphone (1) LW: 150-285 kHz aid ea
SW (1-12 SW broadcast bands): 3,050- 26,100 kHz jort wave guide (1)
Carrying case (1)
FM/SW: Telescopic antenna
MW/LW: Built-in ferrite bar antenna SW compact antenna (1)
Approx. 7.7 cm (3% inches) dia.
400 mW (at 10% harmonic distortion)
Recording output jack (minijack)
output level 0.775 mV (—60 dB)
output impedance 1 kilohm
Earphone jack (minijack) for 8 ohm earphone
6V DC
Four size AA (R6) batteries
OC IN 6 V jack accepts:
Sony AC-D4S AC power adaptor (optional) for use on 120 V
AC, 60 Hz
Sony DCC-127A or DCC-240 car battery cord (optional) for
use with 12 V or 24 V car battery, respectively
Sony EBP-6 battery case (optional) for use with four size C
(R14) batteries.
Approx. 19 hours of listening for four hours a day at a normal
volume, using Sony batteries SUM-3 (NS)
FM/LW/MW/SW
PLL SYNTHESIZED RECEIVER
SONY.
