Battery Level:
While using the system, regardless of the level of assistance selected, it
will be possible to check the battery charge level.

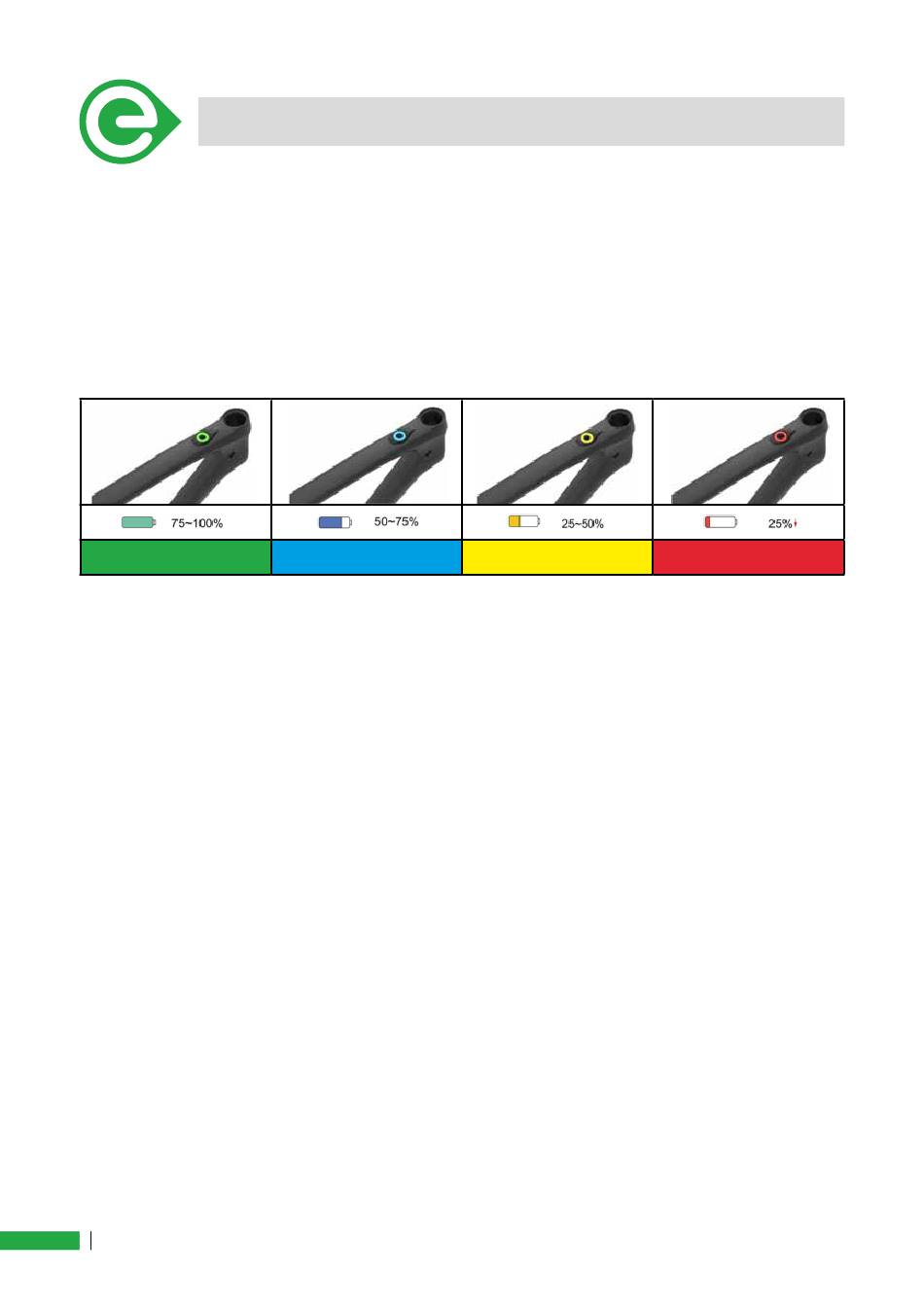

A flash of light, will be displayed every 2 seconds, indicating the state of
charge of the battery. An accurate reading of the battery charge level can
be made via the APP.
Green Flash
Recharge Battery step:
Connect the battery charger to the main socket and connect the battery
charger to the e-bike charging socket. The battery charger will automati-
cally switch on and the e-bike button will start flashing every 2 seconds.
(0.5 sec. ON; 1.5 sec. OFF).
Battery charger indicator.
• Red: Charging. (Flashing e-bike button with color level battery; See
above, as battery level).
• Green: Full charge.
Error/fault condition report:
Any error of system or protections (use out of the limits or faults) are
signaled by a flashing of the button.
• Yellow: Temporary error (0.5 sec. ON; 0.5 sec OFF).
• Red:
1. The battery is not connect to controller or CAN-bus. No data
reading (0.5 sec. ON; 9.5 sec OFF).
2. The battery is charging. The level of charge is at the minimum
(0.5 sec. ON; 4.5 sec OFF).
3. Permanent failure, disconnect the battery, isolate it and return
(0.5 sec. ON; 0.5 sec OFF).
10 10
4. POWER ON / OFF
Blue Flash Yellow Flash Red Flash
