TTM MAG 250

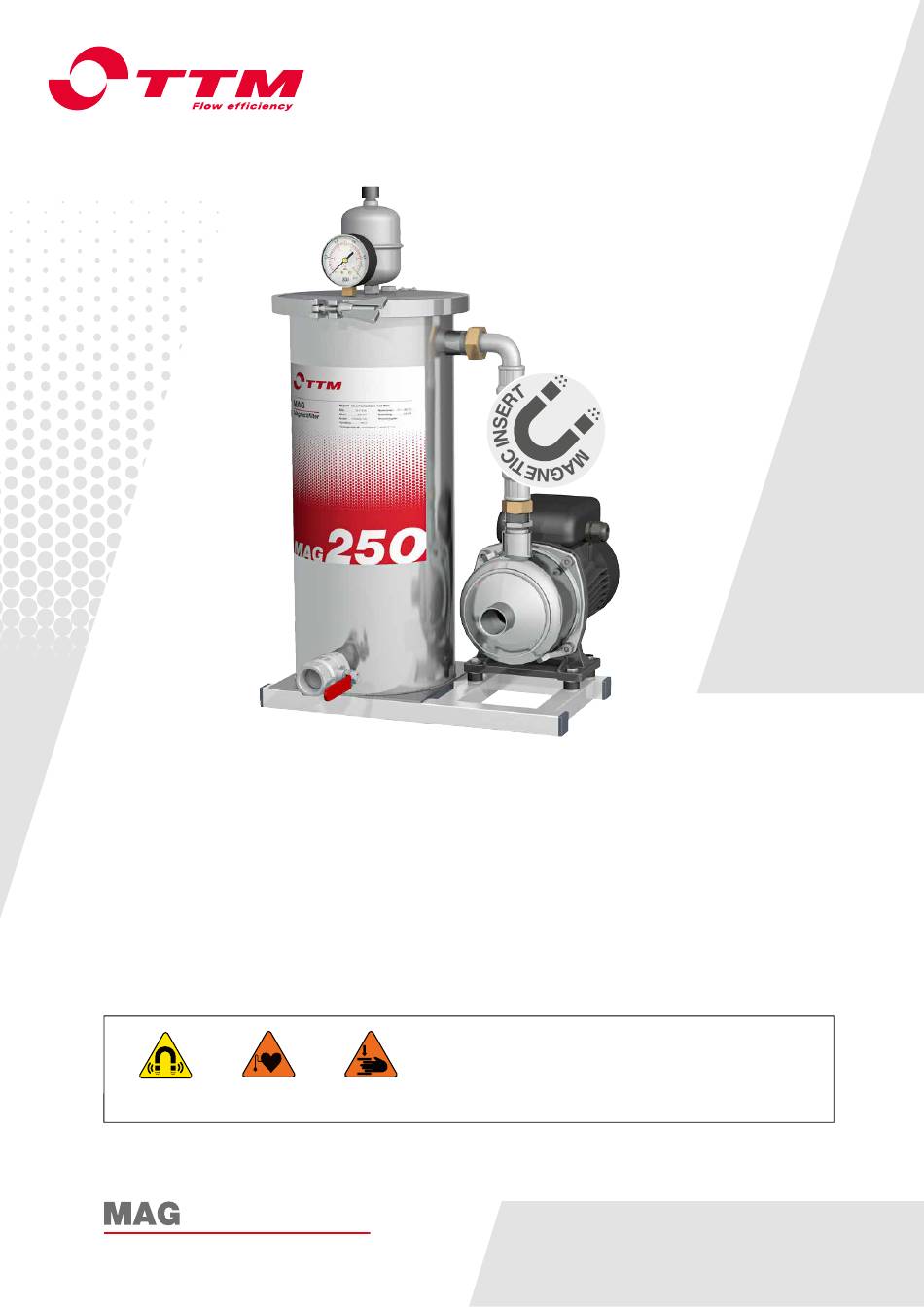

Large system filter that removes magnetite
Installation, operating and maintenance instructions
titfälla med partikelfilter
Strong magnetic
Can affect
field
pacemaker/ICD
Magnetite/air separator
Also be aware that the magnet may interfere with
electronic equipment and pacemakers.
Risk of
pinching
TTM Energiprodukter AB
Slöjdaregatan 1, SE-393 66 Kalmar, Sweden | Tel. +46 480 41 77 40
info@ttmenergi.se | www.ttmenergi.com
magne-
Advertisement
Related Manuals for TTM MAG 250
Summary of Contents for TTM MAG 250
- Page 1 TTM MAG 250 Large system filter that removes magnetite Installation, operating and maintenance instructions magne- titfälla med partikelfilter Also be aware that the magnet may interfere with electronic equipment and pacemakers. Strong magnetic Can affect Risk of field pacemaker/ICD pinching...
- Page 2 2.34 A c/c min. 500 mm Installation The filter is connected with TTM Connection hoses on the Return flow system’s return conduit. Two bifurcations with ball valves with minimum dimensions DN20 and a spacing of at least 500 mm are DN20 - 25 installed on the bottom side of the conduit.
- Page 3 7. Replace the cover. 8. Install the clamp ring and NB! Make sure you tighten. Now TTM MAG 250 is once again don’t damage the filter. ready for use. Note: Copper paste/silicone grease must be applied to the thread of the clamp ring once per year or every time the filter is opened.
- Page 4 The butyl hose is steel-covered and rated for pressures up to 10 bar. The connection hose is used to connect the TTM MAG 250 to the HVAC system with a brass traveling nut (R25) with internal threads at both ends.
