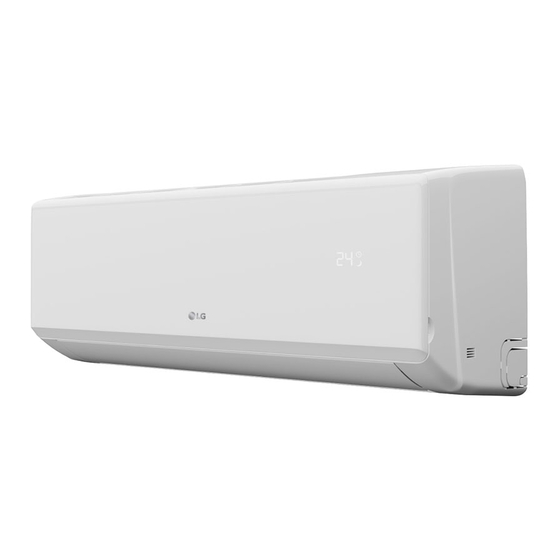

OWNER'S MANUAL
AIR CONDITIONER
In order to use the product safely and conveniently, please
read the owner's manual before using the product.
ENGLISH BAHASA INDONESIA
TYPE: WALL MOUNTED
H05TN4, H07TN4, H09TN4
MFL70205415
Rev.00_092623
Copyright © 2023 LG Electronics Inc. All Rights Reserved
www.lg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H05TN4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LG H05TN4

  • Page 1 AIR CONDITIONER In order to use the product safely and conveniently, please read the owner’s manual before using the product. ENGLISH BAHASA INDONESIA TYPE: WALL MOUNTED H05TN4, H07TN4, H09TN4 MFL70205415 www.lg.com Rev.00_092623 Copyright © 2023 LG Electronics Inc. All Rights Reserved...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS This manual may contain images or content that may be different from the model you purchased. This manual is subject to revision by the manufacturer. SAFETY INSTRUCTIONS ............3 READ ALL INSTRUCTIONS BEFORE USE ............3 OPERATION ................11 SEE MORE INFORMATION ................
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk.
  • Page 4 SAFETY INSTRUCTIONS Notes for Flammable Refrigerant The following symbols are displayed on units. This symbol indicates that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. This symbol indicates that the Owner's Manual should be read carefully.
  • Page 5 SAFETY INSTRUCTIONS • The information contained in the manual is intended for use by a qualified service technician who is familiar with the safety procedures and equipped with the proper tools and test instruments. • Failure to read and follow all instructions in this manual can result in equipment malfunction, property damage, personal injury and/or death.
  • Page 6 SAFETY INSTRUCTIONS • Do not install the air conditioner on an unstable surface or in a place where there is danger of it falling. • Do not install the unit in potentially explosive atmospheres. • Do not install the air conditioner in a place where flammable liquids or gases such as gasoline, propane, paint thinner, etc., are stored.
  • Page 7 SAFETY INSTRUCTIONS • Take care to ensure that the power cable could not be pulled out or damaged during operation. • Never touch, operate, or repair the air conditioner with wet hands. • Do not insert hands or other objects through the air inlet or outlet while the air conditioner is operating.
  • Page 8 SAFETY INSTRUCTIONS • Stop using the remote control if there is a fluid leak in the battery. If your clothes or skin is exposed to the leaking battery fluid, wash off with clean water. • If the leaking battery fluid has been swallowed, rinse the inside of the mouth thoroughly and consult a doctor.
  • Page 9 SAFETY INSTRUCTIONS • Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
  • Page 10 SAFETY INSTRUCTIONS • Install the air conditioner in a place where the noise from the outdoor unit or the exhaust fumes will not inconvenience the neighbours. Failure to do so may result in conflict with the neighbours. • Safely dispose of packing materials such as screws, nails, plastic bags or batteries using proper packaging after installation or repair.
  • Page 11: Operation

    OPERATION OPERATION SEE MORE INFORMATION Check the model name on the label. Label Search for the model name at www.lg.com. NOTE • The image may differ depending on the product. OWNER’S MANUAL Online manuals for sustainable manual content updates. Search bar...
  • Page 12: Wireless Remote Control

    OPERATION WIRELESS REMOTE CONTROL You can operate the appliance more conveniently with the wireless remote control. For more detailed instructions, please refer to the Web-manual. Display Screen You can watch the product setting status. Comfort Air Adjusts the airflow to deflect wind. Light Off You can avoid direct winds.
  • Page 13: Helpful Tip

    OPERATION HELPFUL TIP Sleep Function (On Some Manual Operation Models) If your wireless remote control is unavailable, you can turn the appliance on and off by pressing the You can set the appliance to turn off automatically Power button on the indoor unit. after a set time.
  • Page 14: Product Overviews

    PRODUCT OVERVIEWS PRODUCT OVERVIEWS Wall Mounted Type 1 Type 2 Air Filter Air Deflector (Up-Down Vane) Air Intake Vents Air Deflector (Left-Right Louver) Front Cover Power Button Air Outlet Vents NOTE • The number and location of parts may vary depending on the model of the appliance. •...
  • Page 15: Maintenance

    MAINTENANCE MAINTENANCE Removing and Replacing the Air Filter Type 1 Push the hooks down until they click into place. Turn off the power to the appliance. Locate the knobs of the air filter on the top front of the appliance. To make sure the filter is assembled properly, press down along the entire front length of the filter.
  • Page 16: Cleaning The Air Filter

    MAINTENANCE Insert the hooks on the air filters into the front cover. Check the side of the front cover to make sure that the air filters are assembled correctly. Cleaning the Air Filter Remove the air filter from the appliance. Clean the air filter with a vacuum cleaner or wash it with lukewarm water and a mild detergent.
  • Page 17: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING Before Calling for Service Please check the following before you contact the service centre. If the problem persists, contact your local service centre. Self-Diagnosis Function This appliance has a built-in self-diagnosis function. If an error occurs, the lamp of the indoor unit will flash in 2-second intervals.
  • Page 18 TROUBLESHOOTING The appliance does not emit cool air. • Air is not circulating properly. − Make sure that there are no curtains, blinds, or pieces of furniture blocking the front of the appliance. • The air filter is dirty. − Clean the air filter once every 2 weeks. −...
  • Page 19: Appendix

    LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
  • Page 20 MEMO...
  • Page 21 BUKU PANDUAN PEMILIK PENDINGIN RUANGAN (AC) Agar produk dapat digunakan dengan aman dan nyaman, harap baca buku panduan pemilik sebelum menggunakan produk. TIPE: WALL MOUNTED H05TN4, H07TN4, H09TN4 www.lg.com Hak cipta © 2023 LG Electronics. Seluruh hak cipta dilindung undang-undang...
  • Page 22 DAFTAR ISI Panduan ini dapat berisi gambar atau isi yang berbeda dari model yang Anda beli. Buku panduan ini dapat diubah oleh pabrik. PETUNJUK KESELAMATAN ............3 BACA SELURUH PETUNJUK SEBELUM PENGGUNAAN ....... 3 PENGOPERASIAN ..............11 LIHAT INFORMASI SELENGKAPNYA ............. 11 BUKU PANDUAN PEMILIK ................
  • Page 23: Petunjuk Keselamatan

    PETUNJUK KESELAMATAN PETUNJUK KESELAMATAN BACA SELURUH PETUNJUK SEBELUM PENGGUNAAN Panduan keselamatan berikut ditujukan untuk mencegah risiko tak terduga atau kerusakan akibat pengoperasian produk yang salah atau tidak aman. Panduan ini dibagi menjadi 'PERINGATAN' dan 'PERHATIAN' seperti yang dijelaskan di bawah. Pesan Keselamatan Simbol yang ditampilkan menunjukkan masalah dan pengoperasian yang berisiko.
  • Page 24 PETUNJUK KESELAMATAN Catatan untuk Zat Pendingin yang Mudah Terbakar Simbol berikut ditampilkan pada unit. Simbol ini menunjukkan bahwa alat ini menggunakan zat pendingin yang mudah terbakar. Jika zat pendingin bocor dan terkena sumber pengapian eksternal, ada risiko kebakaran. Simbol ini menunjukkan bahwa Buku Panduan Pemilik harus dibaca dengan cermat.
  • Page 25 PETUNJUK KESELAMATAN • Informasi yang ada dalam buku panduan ini ditujukan untuk penggunaan oleh teknisi servis resmi yang memahami prosedur keselamatan dan dilengkapi alat yang memadai serta instrumen pengujian. • Jika tidak membaca dan mengikuti petunjuk dalam buku panduan ini dapat menyebabkan kegagalan peralatan, kerusakan properti, cedera dan/atau kematian.
  • Page 26 PETUNJUK KESELAMATAN • Jangan memasang AC pada permukaan yang tidak stabil atau di tempat yang berisiko alat jatuh. • Jangan pasang unit ini di lingkungan yang berpotensi ledakan. • Jangan memasang AC di sekitar tempat penyimpanan cairan yang mudah terbakar atau gas seperti bensin, propana, tiner, dll. •...
  • Page 27 PETUNJUK KESELAMATAN • Berhati-hatilah jangan sampai kabel listrik tertarik atau rusak selama pengoperasian. • Jangan pernah menyentuh, mengoperasikan, atau memperbaiki AC jika tangan basah. • Jangan memasukkan tangan atau benda lainnya melalui saluran masuk atau keluar udara saat AC beroperasi. •...
  • Page 28 PETUNJUK KESELAMATAN • Hentikan penggunaan kontrol jarak jauh jika ada kebocoran cairan pada baterai. Jika pakaian atau kulit Anda terkena cairan baterai yang bocor, bilas menggunakan air bersih. • Jika cairan baterai yang bocor tertelan, bilas bagian dalam mulut secara menyeluruh dan hubungi dokter. •...
  • Page 29 PETUNJUK KESELAMATAN • Servis hanya boleh dilakukan seperti yang disarankan oleh produsen peralatan. Pemeliharaan dan perbaikan yang membutuhkan bantuan tenaga terampil lainnya harus dilakukan di bawah pengawasan orang yang kompeten dalam menggunakan zat pendingin yang mudah terbakar. • Alat harus disimpan di area yang berventilasi baik di mana ukuran ruangan sesuai dengan area ruangan yang digunakan untuk pengoperasian alat.
  • Page 30 PETUNJUK KESELAMATAN • Pasang AC di tempat suara bising dari unit luar ruang atau asap buang tidak akan mengganggu tetangga. Apabila tidak dilakukan dapat menimbulkan konflik dengan tetangga. • Sisihkan material seperti sekrup, paku, kantong plastik, atau baterai dengan aman menggunakan wadah yang sesuai setelah pemasangan maupun perbaikan.
  • Page 31: Pengoperasian

    PENGOPERASIAN PENGOPERASIAN LIHAT INFORMASI SELENGKAPNYA Memeriksa nama model pada label. Label Mencari nama model di www.lg.com. CATATAN • Gambar mungkin berbeda tergantung pada produk. BUKU PANDUAN PEMILIK Buku panduan online untuk pembaruan konten buku panduan yang berkelanjutan. Bilah pencarian Bahasa Pindai kode QR untuk melihat manual.
  • Page 32: Remote Control Jarak Jauh

    PENGOPERASIAN REMOTE CONTROL JARAK JAUH Anda dapat mengoperasikan alat dengan lebih nyaman menggunakan remote control nirkabel. Untuk mengetahui petunjuk yang lebih terperinci, lihat ke buku panduan Web. Layar Tampilan Anda dapat melihat status pengaturan produk. Comfort Air Menyesuaikan aliran udara guna Light Off mengarahkan angin.
  • Page 33: Kiat Bermanfaat

    PENGOPERASIAN KIAT BERMANFAAT Fungsi Tidur (Pada Buku Panduan Operasi Beberapa Model) Jika kendali remote control nirkabel Anda tidak tersedia, Anda dapat menghidupkan dan Anda dapat menyetel alat untuk mati secara mematikan alat dengan menekan tombol Daya otomatis setelah waktu yang ditentukan. Alat akan pada unit dalam ruang.
  • Page 34: Gambaran Produk

    GAMBARAN PRODUK GAMBARAN PRODUK Wall Mounted Tipe 1 Tipe 2 Deflektor Udara (Baling-Baling Atas- Filter Udara Bawah) Ventilasi Udara Masuk Deflektor Udara (Kisi Kiri-Kanan) Penutup Depan Tombol Daya Ventilasi Udara Keluar CATATAN • Jumlah dan lokasi komponen dapat berbeda tergantung pada model alat. •...
  • Page 35: Pemeliharaan

    PEMELIHARAAN PEMELIHARAAN Melepas dan Mengganti Filter Udara Tipe 1 Dorong kait ke bawah hingga terpasang dengan kencang pada tempatnya. Matikan aliran daya ke alat. Temukan kenop filter udara di bagian depan atas alat. Untuk memastikan filter terpasang dengan benar, tekan ke bawah di sepanjang bagian depan filter.
  • Page 36: Membersihkan Filter Udara

    GAMBARAN PRODUK Masukkan kait filter udara ke dalam tutup depan. Periksa sisi penutup depan untuk memastikan filter udara terpasang dengan benar. Membersihkan Filter Udara Lepaskan filter udara dari alat. Bersihkan filter udara dengan penyedot debu atau cuci dengan air hangat dan detergen lembut.
  • Page 37: Pemecahan Masalah

    PEMECAHAN MASALAH PEMECAHAN MASALAH Sebelum Menghubungi Layanan Harap periksa hal-hal berikut sebelum Anda menghubungi pusat servis. Jika masalah berlanjut, hubungi pusat servis setempat. Fungsi Diagnosis Mandiri Alat ini memiliki fungsi diagnosis mandiri bawaan. Jika terjadi kesalahan, lampu unit dalam ruang akan berkedip dalam interval 2 detik.
  • Page 38 PEMECAHAN MASALAH Alat tidak mengeluarkan udara dingin. • Udara tidak bersirkulasi dengan benar. − Pastikan bahwa tidak ada gorden, tirai, atau bagian furnitur yang menghalangi bagian depan alat. • Filter udara kotor. − Bersihkan filter udara 2 minggu sekali. − Lihat “Membersihkan Filter Udara" untuk informasi selengkapnya. •...
  • Page 39: Apendiks

    LG Electronics juga akan memberi Anda kode open source pada CD-ROM dengan harga yang meliputi biaya pelaksanaan distribusi tersebut (seperti biaya media, pengiriman, dan penanganan) berdasarkan permintaan melalui email ke opensource@lge.com.
  • Page 40 Lokasi Pabrik : Jln Tabri No 1, Desa/Kelurahan Cirarab, Kec. Legok, Kab. Tangerang, Provinsi Banten PT. LG Electronics Indonesia Gandaria 8 Office Tower LT.29 BC&31 ABCD, JL.Sul- tan Iskandar Muda, Desa/Kelurahan Kebayoran Lama Utara, Kec. Kebayoran Lama, Kota Adm. Jakarta...
