Summary of Contents for La Crosse 616-146v4

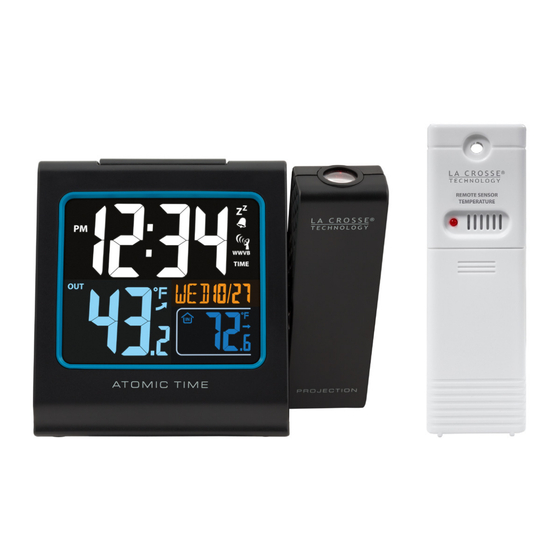

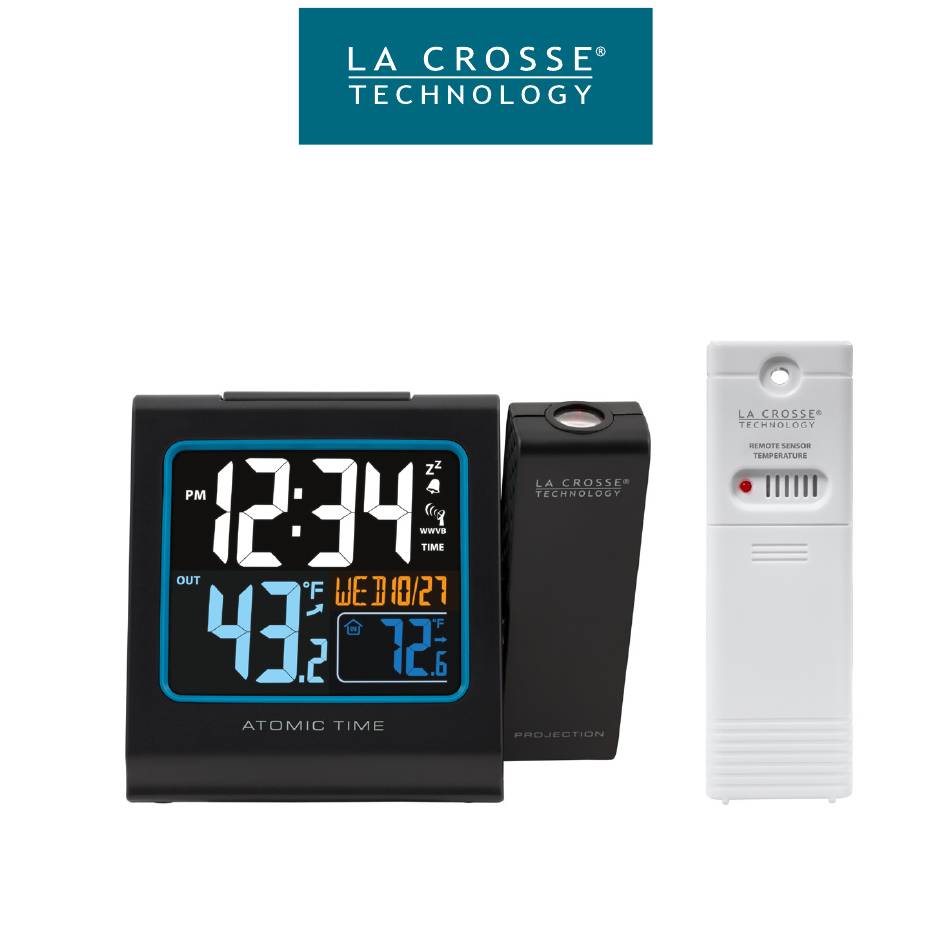

- Page 1 Atomic Projection Alarm Clock with Indoor/Outdoor Temperature SET UP GUIDE MODEL: 616-146v4...
-
Page 2: Atomic Time
Once the sensor is reading to your clock, place the sensor outside in a shaded location. View our sensor mounting video here: bit.ly/th_sensor_mounting TX141v4 Outdoor Sensor 616-146v4 Projection Clock Atomic Time • The Atomic Time Signal icon will flash while searching, and be solid when connected. -
Page 3: Settings Menu
Settings Menu IMPORTANT: Only press or hold one button at a time. Hold the SET/°F/°C button until the display changes to enter the Settings Menu. +/TEMP -/TIME Press and release the buttons to adjust values. Press and release the SET/°F/°C to confirm values. - Page 4 Fahenheit or Celsius Press and release the SET/°F/°C button to select between a Fahrenheit or • Celsius temperature display. Backlight & Projection Intensity • Press and release the SNOOZE/LIGHT button to adjust both the backlight and projection intensity HIGH / LOW / OFF. •...
-
Page 5: Time Alarm
Time Alarm Set Alarm: Hold the ALARM button to enter the Alarm Settings Menu. Use the +/TEMP -/TIME buttons to adjust the flashing values. Press the ALARM button to confirm and move forward. Activate/Deactivate Alarm: Press the ALARM button to view alarm time. Press and release again to activate or deactivate the alarm. -
Page 6: Charging Port
Charging Port Connect your device’s USB charging cable (not included) to the 1 Amp USB Charging Port on the back of the clock. • Charge 1A devices or those that are self-regulating • 1A maximum current | Charging times will vary Temperature Trend Arrows Both the Indoor and Outdoor Temperatures have Trend Arrows to indicate temperature changes (2°F / 1°C) over the past one hour period. -
Page 7: Stay In Touch
Install a new set of alkaline batteries into the sensor, then into your clock. For additional help visit: bit.ly/basic_restart Stay in Touch! Ask questions, watch setup videos, and provide feedback on our social media outlets. Follow La Crosse Technology on YouTube, Twitter, Facebook and Instagram. -
Page 8: We're Here To Help
For more information, go to: www.P65Warnings.ca.gov Warranty & Patents La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. La Crosse Technology, Ltd, 2830 S. -
Page 9: Specifications
Specifications Projection Clock (616-146v4) Outdoor Sensor (TX141v4) Temperature Range: 32°F to 122°F (0°C to 60°C) Temperature Range: -40°F to 140°F (-40°C to 60°C) Power Requirements: 5 volt Power cord Transmission Range: Over 330 ft. open air AC6: HX12R-0501500-AU (100 meters) RF 433MHz... - Page 10 Care & Maintenance FCC Statment Battery Replacement Instructions This equipment has been tested and found to comply with When batteries of different brand or type are used together, the limits for a Class B digital device, pursuant to part 15 or new and old batteries are used together, some batteries of the FCC Rules.
