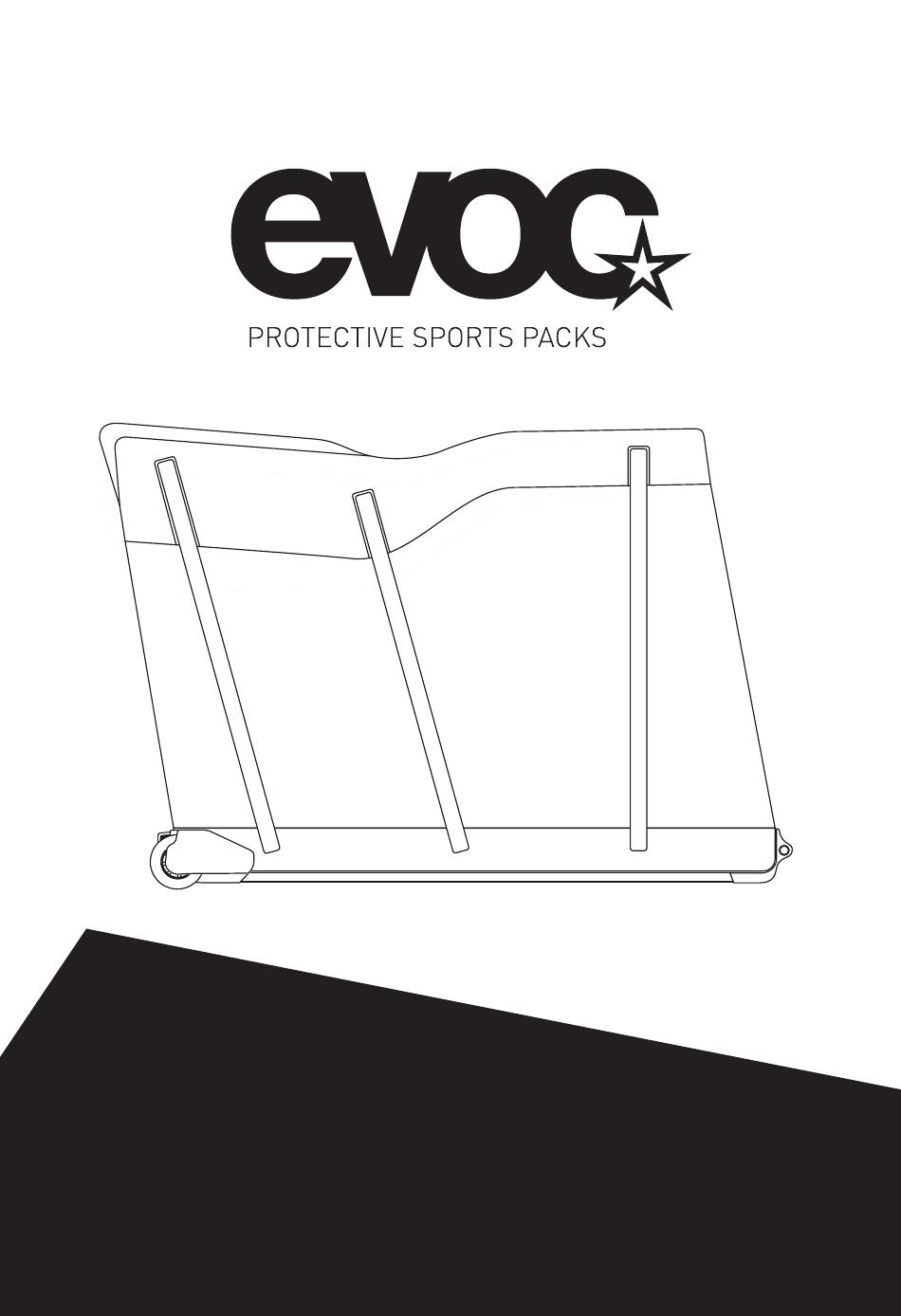

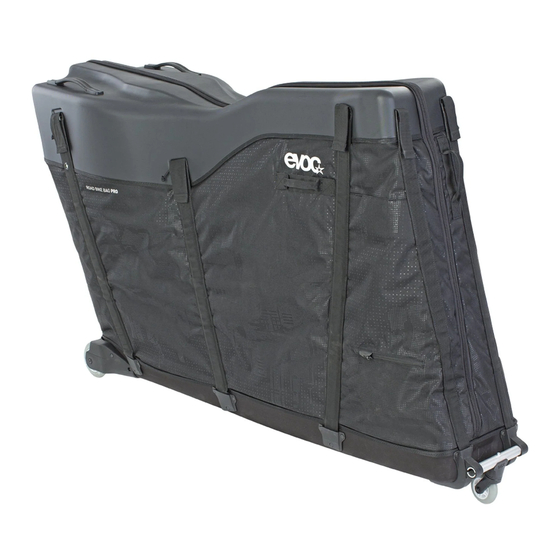

- Page 1 INSTRUCTION MANUAL FOR PACKING A ROAD- OR TRIATHLON BIKE IN YOUR ROAD BIKE BAG PRO...
-
Page 2: Tools Needed
ENCLOSED PARTS ROAD BIKE BAG PRO 2 x TUBE STICKS 5 x STABILIZER 70.5cm STICKS WITH 77cm PULL-TAG 66cm 80cm 81cm 81cm 5 x STABILIZER STICKS WITH 80cm PULL-CORD 66cm 77cm 70.5cm (10) 4 x WEBBING LOOPS 1 x CLIP-ON WHEEL... - Page 3 ENCLOSED PARTS BIKE STAND 2 x ALUMINIUM RAILS 2 HUBS ENCLOSED PARTS BIKE STAND LOWER AXLE ADAPTERS: 2 x QR 5 mm 2 x Thru axle 12 mm UPPER AXLE ADAPTERS: 5 x 100mm 5 x 130 mm 12 x 100mm 12 x 142 mm 12 x 135 mm...
- Page 4 ROAD BIKE BAG PRO STABILIZER STICKS WEBBING LOOPS BACK SIDE PEDAL POCKET TUBE STICKS WEBBING LOOPS FRONT SIDE ROAD BIKE STAND...
- Page 5 HOW TO ASSEMBLE YOUR ROAD BIKE BAG PRO // 01 // 02 Insert stabilizer sticks with pull-tag, on frontside. Insert the sticks complety to give the bag its full stability.
- Page 6 Now insert stabilizer sticks with pull-cord, around the back of your bag, in the order pictured on the enclosed parts list. HOW TO OPEN YOUR ROAD BIKE BAG PRO // 04 To open your ROAD BIKE BAG PRO pull the stabilizer sticks with pull-tag out 1/3 of their lengh.
- Page 7 BIKE PREPARATION // 05 // 06 // 07 If needed lower, or remove Chain on smallest sprocket Remove both wheels your bicycle saddle // 08 // 09 // 10 Place wheels in Remove both pedals Put pedals in pedal pocket wheel bags HOW TO ASSEMBLE YOUR ROAD BIKE STAND // 11...
- Page 8 MOUNTING YOUR BIKE ON ROAD BIKE STAND // 12 Place fork on front hub with correct front axle adapters. Tighten your front axle. // 13 a) Top level b) Low level // 14 c) Adjust position of rear hub according to your wheel base. Place rear drop-outs on rear hub with correct rear axle adapter.
- Page 9 // 15 Fix COCKPIT PAD // 16 Place your bike and WHEEL BAGS in your ROAD BIKE BAG PRO (one WHEEL BAG behind and one in front of your bike)
- Page 10 Fix your bike with red straps...
- Page 11 ROAD BIKE BAG PRO // 17 Looks like this? Almost done!
-
Page 12: Warranty And After-Sales Service
Click CLIP-ON WHEEL to ALUMINIUM FRONT HANDLE SYSTEM. Pin has to go into feed holes! Remove CLIP-ON WHEEL before luggage drop and put back into the outside pocket at the front of your ROAD BIKE BAG PRO WARRANTY AND AFTER SALES SERVICE WARRANTY www.evocsports.com/service/warranty...
