- Page 1 XT2-XT4 FDS 433-868 XT2-XT4 FDS BD 433-868...
-
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION TO THIS INSTRUCTIONS MANUAL ..........3 1.1 MEANING OF SYMBOLS USED ............................3 2. PRODUCT INFORMATION ..................4 2.1 PRODUCT IDENTIFICATION ..............................4 2.2 TECHNICAL CHARACTERISTICS ............................5 3. FDS MODE ......................... 6 3.1 MEMORISING THE TRANSMITTER ........................... 6 3.2 MEMORISING OTHER FDS TRANSMITTERS ........................ -
Page 3: Introduction To This Instructions Manual
1. INTRODUCTION TO THE INSTRUCTION MANUAL 1.1 MEANING OF THE SYMBOLS USED ATTENTION - Indicates an important note. REPEAT - Repeat an operation or a sequence. TIME - Perform the operation within the time indicated. BASKET - Throw away. » CLOCK - Indicates the duration of the operation (in seconds) FINGER - Press one or more buttons DOTTED FINGER - Release one or more buttons... -
Page 4: Product Information

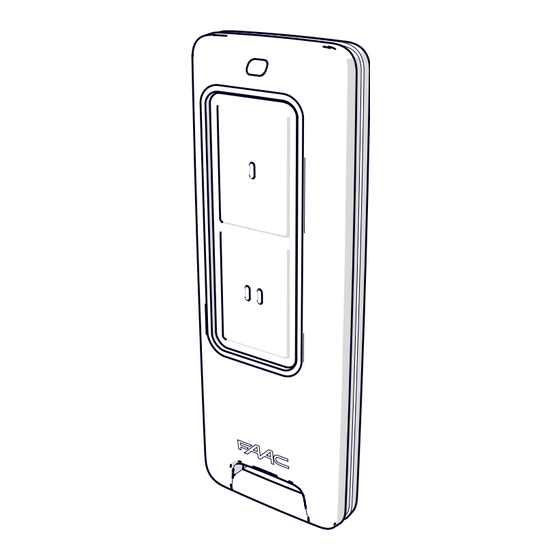

2. PRODUCT INFORMATION The XT2-XT4 FDS 433-868 and XT2-XT4 FDS BD 433-868 transmitters are available in two button (XT2) or four button (XT4) versions. 2.1 PRODUCT IDENTIFICATION Fig.1 Pos Description Slot for opening the transmitter Button P1 Button P2 Button P3 Button P4 532402web - Rev.A... -
Page 5: Technical Characteristics
• Use the receiver to indicate the gate status (closed/not closed) BD transmitters are also fitted with an RFID tag compatible with XTRB FAAC readers. The new FDS transmitters are compatible with the previous SLH model (“secondary” version only), and can therefore also be used with old systems which are already equipped with SLH transmitters. -
Page 6: Fds Mode
3. FDS MODE The procedures described below are valid for both the basic version FDS and the two-way version FDS BD (the two-way version vibrates to confirm that an operation has been performed). 3.1 MEMORISING THE TRANSMITTER Refer to the receiver or the electronic equipment instructions to identify the buttons and LEDs described below. - Page 7 » » = 2 S = 20 S Whenever a code is memorised, the If the memorisation was completed receiver/electronic equipment LED lights successfully, the LED flashes green and red. up steadily for 2 seconds and then flashes for 20 seconds, during which the user can memorise the new code.
-
Page 8: Memorising Other Fds Transmitters
3.2 MEMORISING OTHER FDS TRANSMITTERS ALREADY MEMORISED Press the button (P...) of the transmitter that has already been memorised for 10 sec. until the LED flashes quickly red/green in sequence and then release it. The LED flashes for 20 secs. While the LED is still flashing, bring the new transmitter you want to register to a distance of less than 5 cm from it and keep one in front of the other. -
Page 9: Opening Request
3.3 OPENING REQUEST This procedure is only available on the two-way transmitters XT2-XT4 FDS Press and release the button on the transmitter within 5 seconds. The LED starts to flash green. If the command was received correctly, the LED flashes green and the transmitter vibrates. Fig.5 532402web - Rev.A... -
Page 10: Status Request
3.4 STATUS REQUEST This procedure can only be carried out with XT2-XT4 FDS BD 433-868 transmitters and on boards with an integrated two-channel decoding system that are compatible with the XF FDS radio module. Press the button (P...) on the transmitter. Keep it pressed until the LED turns steady green. -
Page 11: Slh Mode
4. SLH MODE 4.1 CONVERTING THE TRANSMITTER FROM FDS TO SECONDARY SLH » = 2 S Press buttons P1 and P2 simultaneously for When released, the LED flashes slowly 2 seconds. green. Press the P1 button 3 times in sequence. The LED flashes red twice. -
Page 12: Converting The Transmitter Back From Slh To Fds
4.2 CONVERTING THE TRANSMITTER BACK FROM SLH TO FDS A transmitter that was converted into a Secondary SLH can no longer be memorised on the receiver or by other transmitters. Press any button on a transmitter converted into a secondary device, the LED immediately lights up steadily. -
Page 13: Memorising An Slh Transmitter
4.3 MEMORISING AN SLH TRANSMITTER An FDS transmitter modified to Secondary SLH mode operates on the 433/868 MHz frequency band transmitted by the Primary SLH transmitter during memorisation. » = 2 S Primary SLH: Press and hold the button to be transferred. -
Page 14: Fds Mode - Non-Reversible Procedures
5. FDS MODE - NON-REVERSIBLE PROCEDURES 5.1 RANDOMISATION PROCEDURE This procedure generates new radio codes on all buttons of the transmitter. After randomisation, the transmitter will no longer work in the systems in which it had been memorised. » = 2 S Press buttons P1 and P2 simultaneously for When released, the LED flashes slowly 2 seconds. - Page 15 » = 5 S Press the buttons in the following If the procedure has been carried out sequence: correctly, the LED turns on steady red for 5 seconds. Fig.11 532402web - Rev.A...
-
Page 16: Procedure For Enabling The Lock Function
5.2 PROCEDURE FOR ENABLING THE LOCK FUNCTION A transmitter with the lock function enabled can no longer carry out the memorisation procedure on the receiver or other transmitters. The code has to be randomised in order to unlock the transmitter. »... - Page 17 Press buttons P1 and P2 in the following If the procedure has been carried out sequence: correctly, the LED turns on steady red for 5 seconds. Fig.13 532402web - Rev.A...
-
Page 18: Maintenance
6. MAINTENANCE 6.1 REPLACING THE BATTERIES If the LED flashes red when you press any button on the remote control, it means that the battery is low and should be replaced. lithium 3V CR2032 Fig.14 This product contains a button cell battery. If the button cell battery is swallowed, it can cause severe internal burns in as little as 2 hours and can lead to death. - Page 19 FAAC S.p.A. Soc. Unipersonale Via Calari, 10 - 40069 Zola Predosa BOLOGNA - ITALY Tel. +39 051 61724 - Fax +39 051 09 57 820 www.faac.it - www.faactechnologies.com 532402web - Rev.A...
