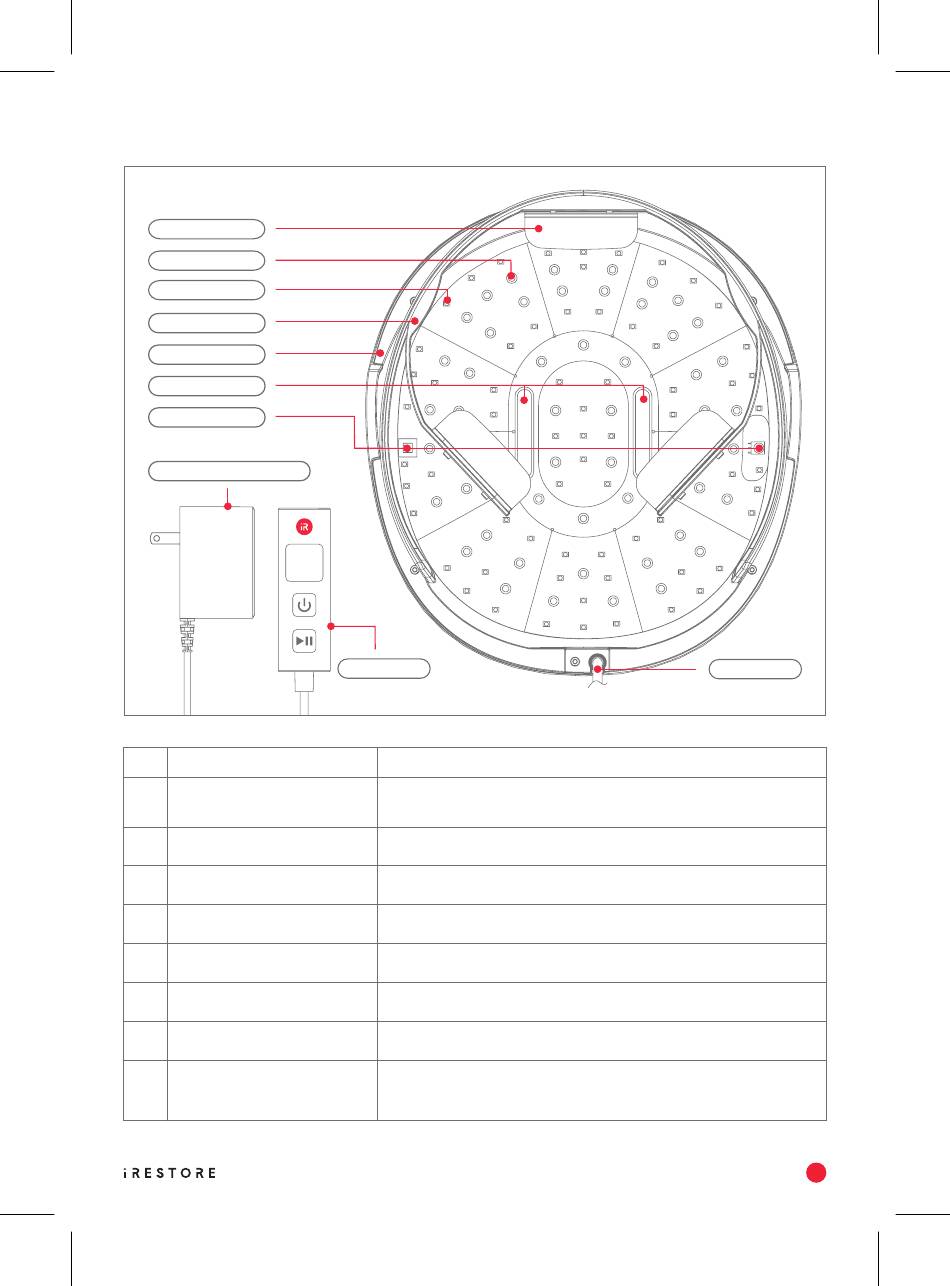

PRODUCT DIAGRAM

SILICONE PAD
LASER
LED
HEADBAND
LASER DOME
SILICONE PAD
SAFETY SENSOR
DC 5V POWER ADAPTER
Description
1 Laser Dome Housing
2 Stretcher Housing
3 Power Wire
4 Controller
5 Silicone Pad
6 Light Emitting Diode (LED)
7 Laser Diode (Class 3R)
8 Safety Sensor
CONTROLLER
Function
Plastic laser dome configured with 51 Class 3R lasers (<5mW) and 69
LEDs (655nm) to provide low-level light therapy treatment to the scalp
Plastic headband-used as mounting base for laser dome housing
Connect device and controller
External system control to operate on/off, built-in timer and start/pause
Padding around the protective shield to increase comfort
69 LEDs (655nm) are the light source for treatment
51 lasers (<5mW) are the light source for treatment
An electronic sensor that permits use of the iRestore only when it
is placed on the head in the recommended position
