Add Call Accounting Capabilities to
The CA-4 provides a cost effective way
to add call accounting features to any
phone system.
The CA-4 monitors up to four analog
telephone lines for inbound and
outbound call duration, time, date, and
number dialed.
The CA-4 buffers up to 1820 call records
for later retrieval.
formatted
formatted in ASCII delimited text to be downloaded to a PC via a RS-232 port. It can
also be output to a serial printer in a tabular format.
Features
• Easy parallel wiring to analog lines/PABX
extensions.
• Monitors up to four C.O. lines or analog
PABX/KSU stations
• 1820 call record buffer
• Data button for on demand downloading
• Download data to a PC or print to a serial printer
• Download data remotely via modem
• Can output an ASCII delimited text file for use
with spread sheet and database programs
• LED indicates operational mode
• Control manually or from a PC
• Battery back-up for memory
• Built-in clock/calendar with automatic leap year
compensation
Telecommunication Peripheral Products
Nearly Any Phone System!
The data can be
http://www.VikingElectronics.com
E-mail...Sales@VikingElectronics.com
Applications
• Monitor call activity in small offices and
businesses
• Determine traffic patterns
• Verify long distance carrier charges
• Track down phone system hacking
Sales...(715) 386 - 8861
Made in the U.S.A.
Specifications
Power: 120V AC/13.8V AC, 1.25A UL listed adapter provided
Dimensions: 133mm x 130mm x 38mm (5.25" x 5.1" x 1.5")
Shipping Weight: 0.9 kg (2 lbs)
Environmental: 0 C to 32 C (32 F to 90 F) with 5% to 95% non-
condensing humidity
Connections: (2) RJ14 jacks, (1) RS-232 serial port
Clock Battery Back-up: Approximately 24 hours using a 9V
standard or rechargeable battery (not included)
Time Base: 60Hz AC Power

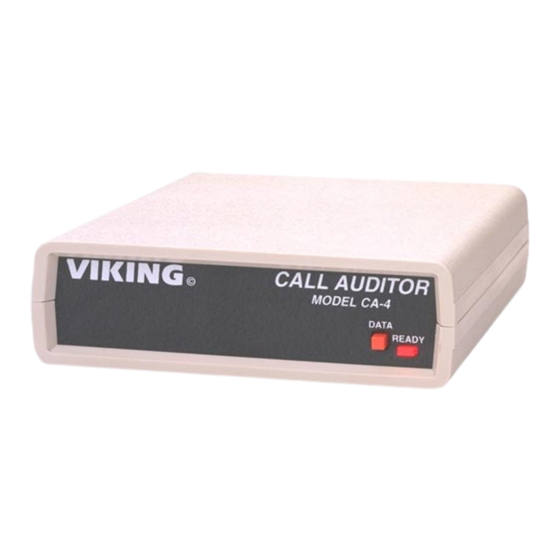

CA-4
Four Line Call Auditor
March 15, 2000
