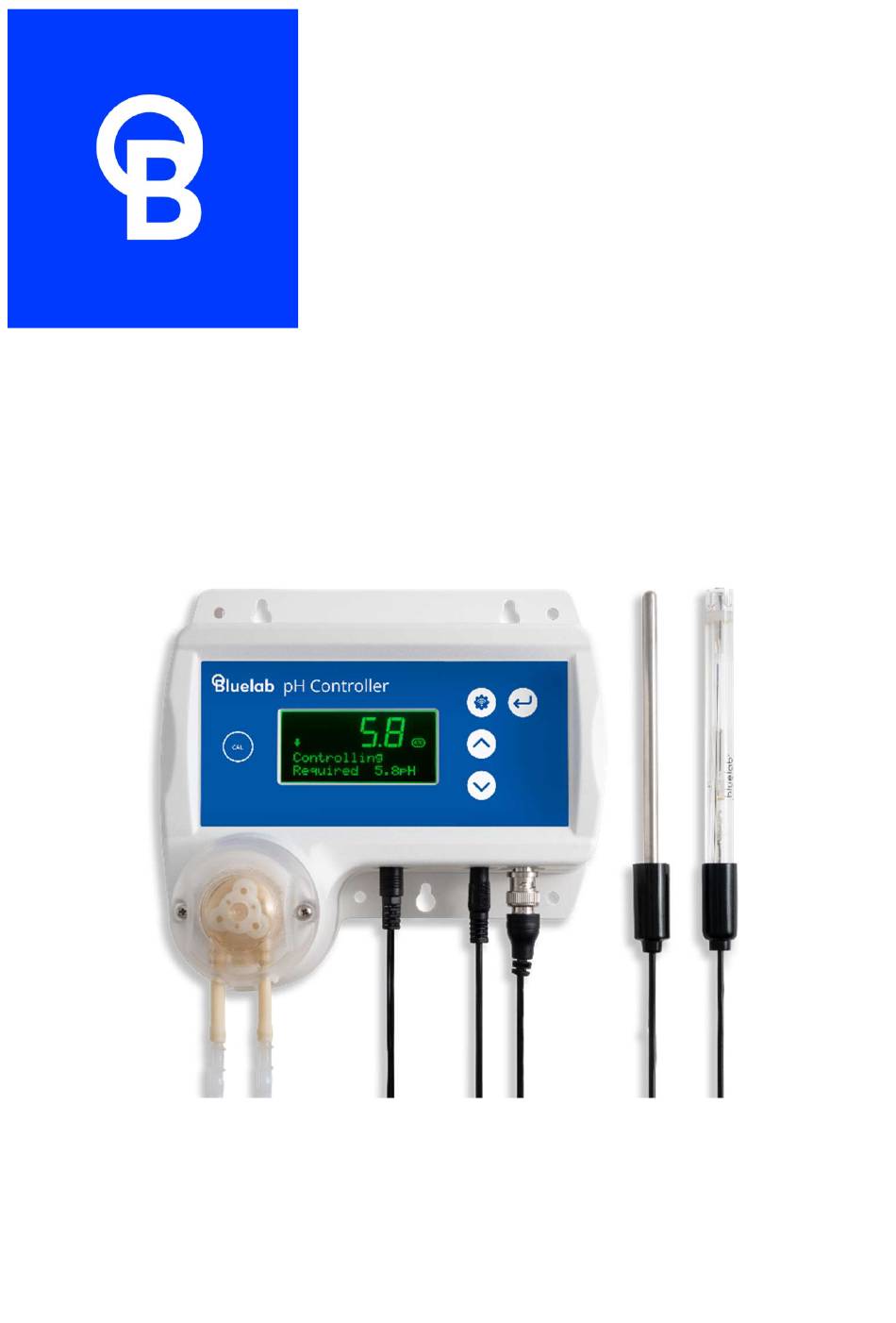

- Page 1 Controller Wi-Fi User Manual English...
-
Page 2: Table Of Contents
2.5 Bluelab pH Controller Menu ..9 6.1 Bluelab pH Probe care ....25 2.5.1 Set the mode ......10 6.2 Cleaning the Bluelab pH Probe .. 27 2.5.2 Set the required pH ....10 6.3 Hydrating the pH probe ....28 2.5.3 Alarms (optional) ..... -
Page 3: Introduction & Overview
1.0 Introduction & Overview 1.1 Features Local and remote adjustment of control Built-in Wi-Fi (with option to disable) settings via Edenic by Bluelab software Data logging capability (via Edenic by Automatic control and monitoring of Bluelab software) system pH with reservoirs up to 2,000 US... -
Page 4: How It Works
0.1 pH points. IMPORTANT If the OnTime is too short, it is possible that the Bluelab pH Controller won’t be able to dose enough to keep up with the changing pH levels, even if it doses every dosing cycle. - Page 5 “ur” or “or” in the affected measurement type. Dosing will immediately stop. Alarms When alarms are turned on, and the Bluelab pH Controller senses that either pH is beyond the set high or low alarm values, pH dosing will stop. IMPORTANT Alarms are not just warnings that values have shifted away from the required value - they stop dosing.
- Page 6 This is called the ineffective control lockout, and is enabled by default, but can be disabled via Edenic. The Bluelab pH Controller will indicate it is in ineffective control lockout by flashing the display and displaying ‘HELP Ineffective Control’.
-
Page 7: Bluelab Ph Controller

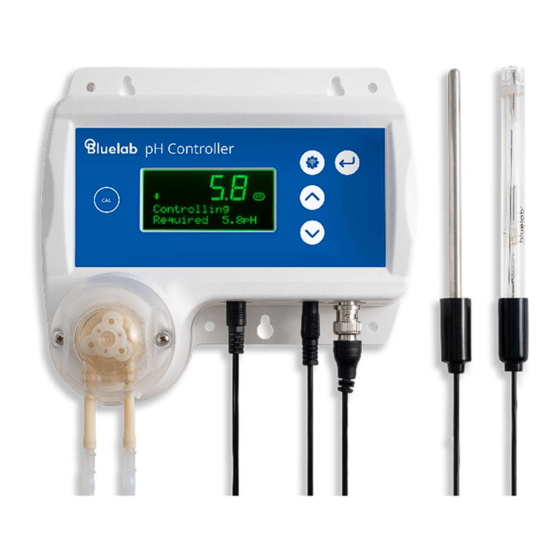

2.0 Bluelab pH Controller 2.1 Bluelab pH Controller overview Enter button Display Settings button pH calibration Up button button Down button Peristaltic pump with cover pH probe BNC connector Inlet tube Temperature probe input Outlet tube Power input 2.2 Bluelab pH Controller display... -
Page 8: Connect The Probes
2.3 Connect the probes It is recommended to test the Bluelab pH Controller prior to mounting. Attach both the pH and Temperature probes to the controller, plug in the power adaptor, place probes into solution and wait a few minutes for the readings to stabilise. -
Page 9: Bluelab Ph Controller Menu
2.5 Bluelab pH Controller Menu The ‘Settings’ button will take you into the menu. To exit the menu, press ‘Settings’ again. Changes will not be saved. The ‘∧’ (up arrow) button allows you to move up the menu items or increase a value shown. -
Page 10: Set The Mode
2.5.1 Set the mode The Bluelab pH Controller has two modes of operation (monitor and control). Monitor mode displays the current solution pH reading. Control mode allows the pH controller to dose pH solution to the set values. Dosing will NOT occur when: The pH controller is in ‘monitor’... -
Page 11: Alarms (Optional)
2.5.3 Alarms (optional) The alarm function alerts you when the solution deviates too far from the desired pH. When an alarm condition is present, the pH value and the alarm symbol will flash on the screen. This is an ‘alarm lockout’ state. All dosing will stop. If the measurement changes back to within the limits you have chosen, the ... -
Page 12: Dosing Ontime And Offtime
OffTime’ the delay time between each dose. This gives the system time to mix the stock solution into the reservoir thoroughly, so the Bluelab pH Controller measures the solution accurately. From 1 to 60 minutes. 2.5.6 Pump Speed To change the pump speed: Use the menu item ‘Pump Speed’... -
Page 13: Screen Backlight And/Or Contrast
2.5.7 Screen backlight and/or contrast To change the screen backlight: Use the menu item ‘Backlight’ Can be set at 0%, 25%, 50%, 75% or 100%. To change the screen contrast: Use the menu item ‘Contrast’ Can be set between 0 and 30. 2.5.8 Number of calibration points If you are calibrating to TWO solutions, remember: If a reading below pH 7.0 is expected, use pH 7.0 and pH 4.0 calibration solutions. -
Page 14: Display Language
2.5.9 Display language Use the menu item ‘Language’... -
Page 15: View Current Settings / Status
2.6 View current settings / status Use this option to view your programmed settings at any time. Press ‘∨’ or ‘∧’ while in ‘monitor’ or ‘control’ mode. The setting for each value is displayed at the bottom of the screen. The display will revert to displaying ‘Required pH’... -
Page 16: Installing The Bluelab Ph Controller
3.2 Placement of the probes The tip of the Bluelab pH Probe must be submerged in the liquid for a measurement to occur. It is optional to use the Bluelab Temperature Probe, but it is required for automatic temperature compensation (ATC) to occur, or to enable ‘Earthlink’. -
Page 17: Set Up Inlet Dosing Tube
Cut the inlet dosing tube to the desired tube length. Use inlet tube cap supplied to place on Bluelab Up or Down 500ml or 1 Liter bottles. Inlet tube cap This will hold the tube in position. Insert the inlet dosing tube through the hole in the cap... -
Page 18: Set Up Outlet Dosing Tube
3.4 Set up outlet dosing tube Insert the remaining dosing tube with Outlet ‘’ arrow connector into the RIGHT peristaltic pump on pump cover tube. This is the ‘outlet dosing tube’. Right pump tube Connector Cut the outlet dosing tube so that the tube sits above the maximum solution level of the reservoir/tank. -
Page 19: Wi-Fi Connection (Optional)
Example: Have the security code QR image handy. When first powered on, the pH Controller Wi-Fi automatically starts in Provisioning mode. This allows Wi-Fi settings to be configured from a mobile device. Once the pH controller has been connected to a Wi-Fi network it will no longer start in Provisioning mode. -
Page 20: Connect To A Different Wi-Fi Network
4.2 Connect to a different Wi-Fi Network To reprovision: Use the menu item ‘Wi-Fi’. Press ‘’ to select ‘Provisioning’. The security code is displayed indicating that the device is ready to accept new Wi-Fi settings. Use the Edenic App on your mobile to complete the setup for a new network. -
Page 21: Ph Calibration
first use. It ensures pH measurements and/or pH stock solution dosing is accurate. The Bluelab Temperature Probe DOES NOT require calibration but is used for ATC. The pH calibration involves cleaning the pH probe tip and then calibrating in TWO or THREE SOLUTIONS. - Page 22 In several separate plastic containers, pH Probe prepare a small amount of: Temperature Probe fresh tap water pH 7.0 pH 4.0 and/or pH 10.0 calibration solutions. pH 7.0 calibration solution water pH 7.0 pH 4.0 pH 7.0 calibration Rinse and place both clean pH and Temperature probe tips in the pH 7.0 calibration solution.
- Page 23 pH 4.0 and/or pH 10.0 calibration Rinse both probe tips in fresh tap water, shake off excess water. Place the clean pH probe tip in either pH 4.0 or pH 10.0 calibration solution. Press ‘CAL’. rinse in tap water press cal button Calibration is complete when all the ‘...
-
Page 24: Ph Calibration Tips
5.2 pH calibration Tips For best pH calibration pH reading accuracy is dependent on the accuracy and age of the calibration solutions used and the use and cleanliness of the pH probe tip. Ensure the pH probe has been cleaned and rinse with clean water between ... -
Page 25: Probe Care
DO NOT last forever. They age through normal use and will eventually fail. The lifetime of a pH probe depends on the environment it is used in and the way that it is treated. To receive a long life from your Bluelab pH Probe, please ensure you follow the guide below. - Page 26 To prepare the pH probe for storage, add enough Bluelab pH Probe KCl Storage Solution to the storage cap so the probe tip is covered. Then replace the cap and store in a secure place. DO NOT use RO (Reverse...
-
Page 27: Cleaning The Bluelab Ph Probe
After cleaning, use the probe straight away, or place the storage cap on the probe tip. Always ensure the cap contains enough Bluelab pH Probe KCl Storage Solution to cover the probe tip. -
Page 28: Hydrating The Ph Probe
6.3 Hydrating the pH probe Hydrate the pH probe in Bluelab pH Probe KCl Storage Solution when: the probe tip has not always been stored in KCl storage solution, to improve the reading response speed. the probe tip has been accidentally allowed to dry out. -
Page 29: Troubleshooting & Faq
7.0 Troubleshooting & FAQ 7.1 Troubleshooting guide Trouble Reason Correction pH probe not plugged in. Connect pH probe. Check pH probe connection. Using factory default calibration. Calibrate pH probe. Contaminated pH probe / glassware not clean. Clean pH probe, then calibrate. pH reading Broken glass bulb, tube or connector. - Page 30 The Wi-Fi menu displays; Err2 – No internet available The Wi-Fi menu displays; Issue with the Bluelab server, if the problem persists Err3 – Edenic service not reachable for more than 2 hours please contact Bluelab support. The Wi-Fi menu displays;...
-
Page 31: Frequently Asked Questions
• The pH reading does not change after 15 dose cycles. Can Ineffective lockout be Ineffective Lockout can only be disabled via the Edenic by Bluelab software. disabled? You can omit use of the ATC probe if: You do not use EarthLink On setting to stabilise the pH value... -
Page 32: Specifications
8.0 Specifications 8.1 Technical specifications Control parameter pH - user selectable single direction (up or down) Control range 0.1 – 13.9 pH Dose rate 120 ml per minute Resolution 0.1 pH Accuracy at 25°C/77°F ±0.1 pH Two or three point Calibration (pH 7.0 and pH 4.0, and/or pH 10.0) Temperature... -
Page 33: Ph Adjuster Compatibility For Tubing
Many leading brands of pH Up and pH Down are appropriate for use without dilution. As a guide Bluelab recommends the following maximum concentration for commonly used acids and alkalines;... -
Page 34: Accessories & Warranty
Dosing tube comes with barbs included to make replacement easy. 9.5 pH Probe KCl Storage Solution The best solution to store and hydrate your Bluelab pH products. Bluelab pH Probe KCl Storage Solution increases response time and maximizes the life of Bluelab pH... -
Page 35: Bluelab Limited Warranty
This warranty does not apply to equipment, component or part that was not manufactured or sold by Bluelab and shall be void if any such item is installed on a Product. Further, this warranty does not apply to replacement of items subject to normal use, wear and tear and expressly excludes: •... -
Page 36: Get In Touch
This warranty is governed by the laws of the state of country where Product is purchased, without regard to its choice of law principles. Except as allowed by law, Bluelab does not limit or exclude other rights a consumer may have with regard to the Product. No Bluelab distributor, employee or agent is authorised to modify, extend, or otherwise change the terms of this warranty.
