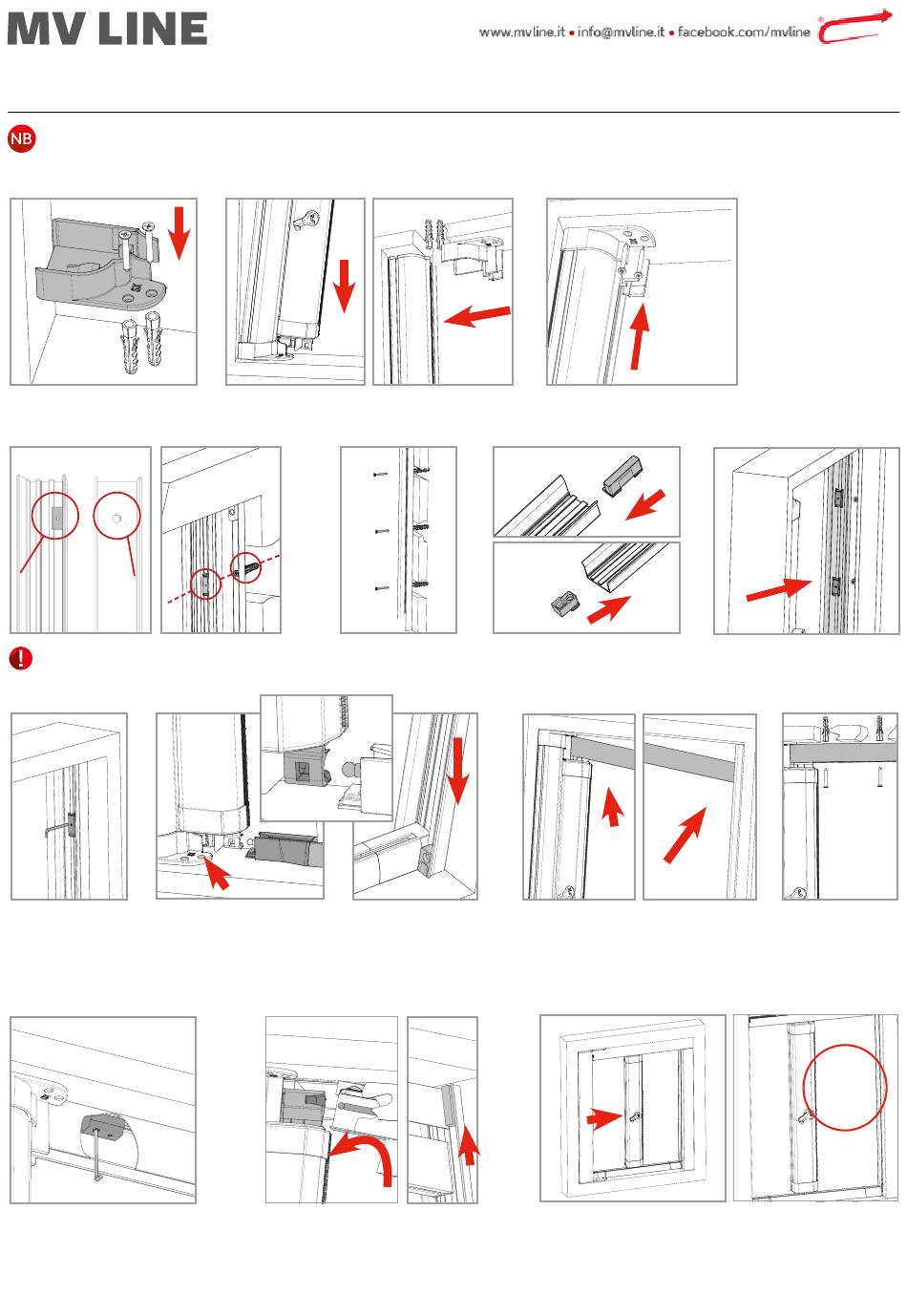

MV LINE LATERAL IRENE Installation Instructions

Please note: pictures
shown are simulating
inner room view.
1
Fix one of the two head-caps
to the wall.
REGULATOR
HOLE
compensating
profile
Warning: drill the compensating profile ma-
king holes in line with the regulators located
onto telescopic profile.
7 8
Screw the
grub-screws on
the closure pro-
file to adjust
the possible
irregularities of
the wall.
11
Screw the grub screws
on the upper compensa-
ting profile to adjust the
possible irregularities of
the wall.
INSTALLATION INSTRUCTIONS
The installation of the flyscreen should be made by qualified personnel following the instructions listed below. Use screws or
anchors suitable for the type of wall on which the flyscreen will be installed. Make sure that the jambs are parallel and at right-
angle; in case of out of square walls make the necessary adjustments to ensure parallelism to the profiles of the flyscreen.
2
Hook the box to the head-cap. Hook the other
head-cap to the box and apply into the window
recess.
4
Insert the bottom guide in the latch-guide of the box:
with the help of the paper tab, be sure that the latch
for mesh enters the cylindrical seat of the slider. Insert
the closure profile. Insert the opposite side of the bot-
tom guide in the closure profile and block it with the
appropriate latch-guide.
12
Insert the top guide in the
latch-guide of the box: with
the help of the paper tab, be
sure that the latch for mesh
enters the cylindrical seat of
the slider.
Use the paper tab to enter it.
LATERAL IRENE
UP
DOWN
5
Fix the compen- Insert the latches-guide in the
sating profile to closure profile and fix them.
the wall
9
3
Fix the other head-cap to the
wall.
Insert the compensating profile in the
box first, then in the closure profile.
13
Verify the proper operation. If the insect screen doesn't
flow, please repeat the procedure to insert the guides.
ATTENTION! To open the insect screen, turn the handle in
the direction indicated by the arrow.
Let the handlebar flowing and return the handle to its po-
sition to lock it.
6
Insert the clorure profile in
the compensating one.
10
Fix the com-
pensating
profile.
