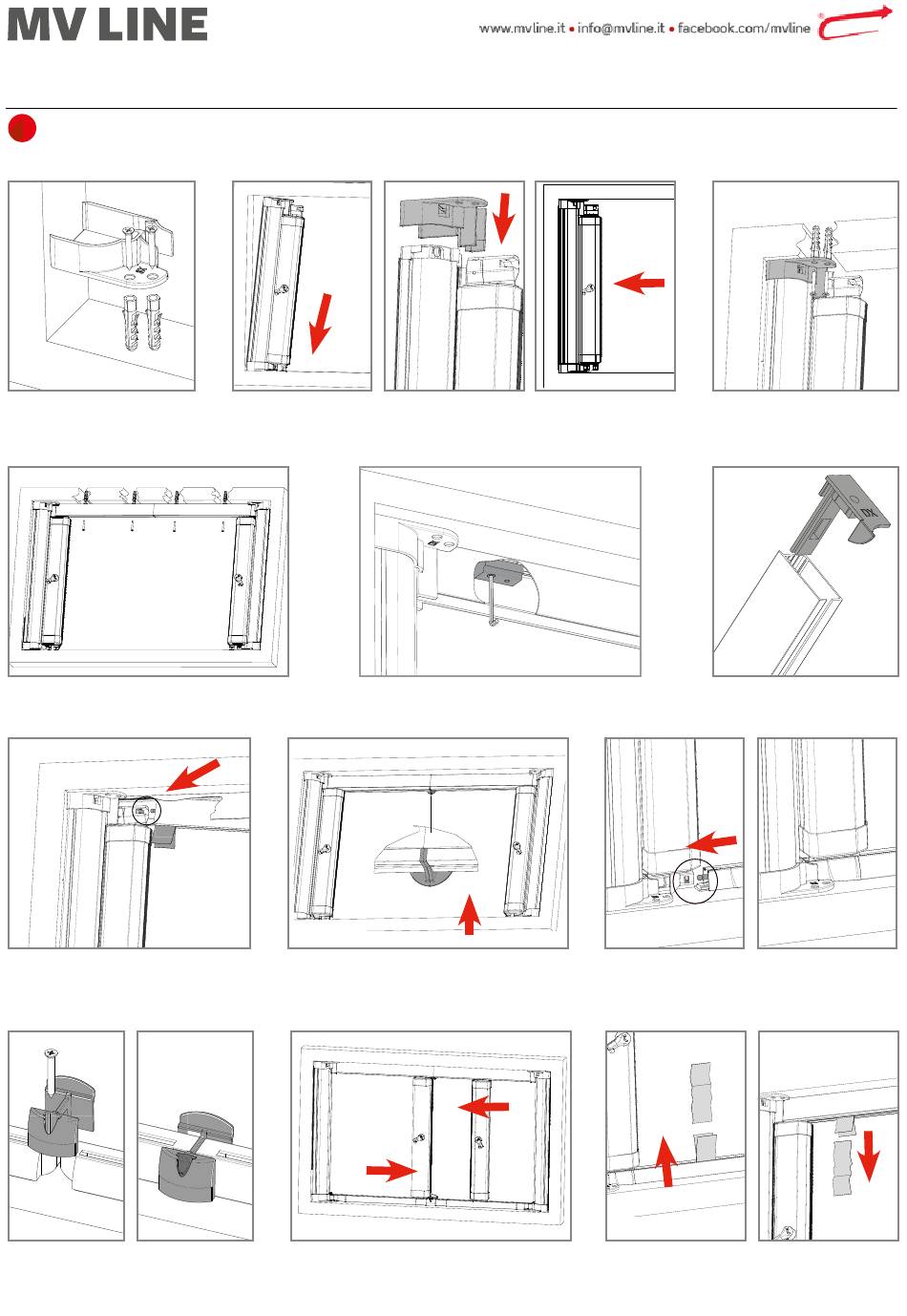

MV LINE IRENE DOUBLE Assembling Instructions

Note: all images repre-
!
sent an inner view.
1
Fix the lower end-cap to the
wall.
4
Insert the compensating profiles and fix them
to the upper wall.
7
Insert the upper rails using the paper tab
to get the conveyor of the mesh in the
cylindrical space of the slider.
A B
10
Repeat the step nr. 9 with the other
lower rail and insert the central joint.
Fix it in the floor (A) and insert the cap
for the screw (B).
ASSEMBLING INSTRUCTIONS
The installation of the insect screen should be made by qualified personnel following the instructions listed below.
Use screws or anchors suitable for the type of wall on which the insect screen will be installed.
Make sure that the jambs are parallel and at right-angle; in case of out of square walls make the necessary adjustments to ensure
parallelism to the profiles of the insect screen.
A
2
(A) Insert the cassette in the lower end-cap. (B) IInsert the upper end-cap in
the cassette and place everything to the wall (C).
5
8
Insert the upper rails in the caps of the cas-
sette and join them in the middle with the cen-
tral joint.
11
Carefully verify the proper winding to make
sure that the conveyors are properly insert-
ed in their sliders.
IRENE DOUBLE
B
Adjust any irregularities of the window tight-
ening the screw in the upper compensating
profile.
C
3
Fix the upper end-cap and re-
peat the first three steps on
the opposite cassette.
6
Insert the right and left hook
in the upper rails respecting
their way of insertion.
9
Insert the lower rail under the handlebar, using
the paper tab to get the conveyor of the mesh in
its cylindrical space of the slider.
12
Rip and remove the paper tabs (only after veri-
fying the proper functioning).
