Moisture in Oil Transmitter IFO510
The
with two analog outputs for different
measured variables and RS 485 Modbus interface as standard, enables reliable and
long-term stable measurement in technical oils. Designed for measurements such as
moisture content in transformer oil, motor oil, lubricating oil, hydraulic oil and diesel
fuels. In addition to a highly accurate measurement of water activity (aw) as well as
temperature (T), the FO 510 calculates the absolute water content (x) in PPM.
Advertisement
Table of Contents
Related Manuals for ICS Schneider Messtechnik IFO510
Summary of Contents for ICS Schneider Messtechnik IFO510

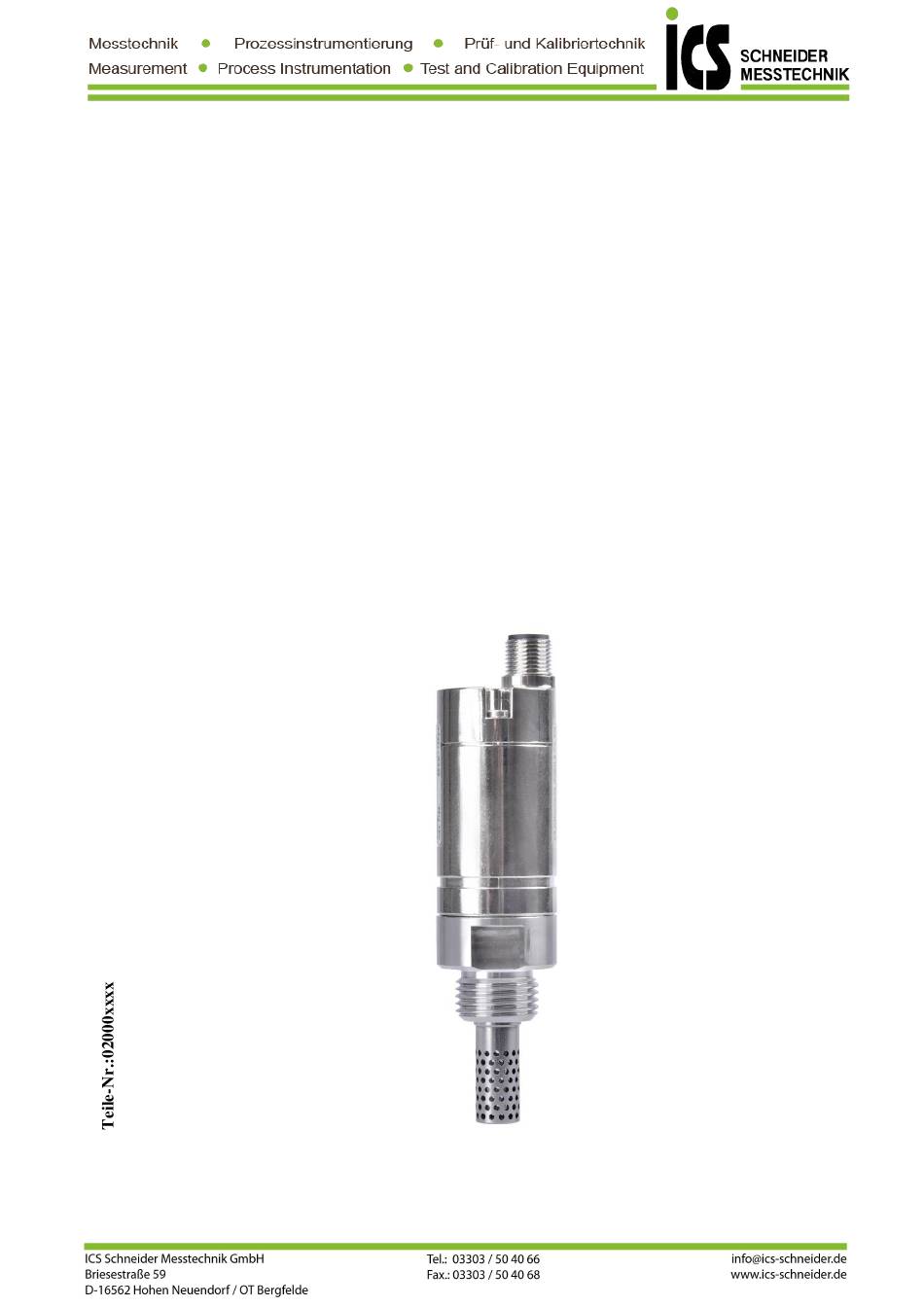

- Page 1 IFO510 Moisture in Oil Transmitter IFO510 with two analog outputs for different measured variables and RS 485 Modbus interface as standard, enables reliable and long-term stable measurement in technical oils. Designed for measurements such as moisture content in transformer oil, motor oil, lubricating oil, hydraulic oil and diesel fuels.
-
Page 2: Table Of Contents
Installationshinweise ......................8 Modbus ..........................9 Register Mapping der Werte-Register: ................ 9 Geräte Einstellungs-Register ..................10 Modbus Settings (2001…2006) ..................10 Analog Scaling Settings (2007…2011) ..............10 Kalibrierung / Justage ....................... 11 10 Garantie ..............Fehler! Textmarke nicht definiert. IFO510 V1.00... -
Page 3: Foreword
Water content (x) in PPM. Intended use The IFO510 is intended for measuring moisture in technical oils. A check whether the device is suitable for the selected application must be carried out by the user. It must be ensured that the medium is compatible with the wetted parts. The technical data listed in the data sheet are binding. -
Page 4: Safety Instructions
The calculation of the water content x from the measured values for aw and T is oil- specific and requires special parameters for the respective oil. We offer the possibility to adapt these oil specific parameters for different oil types. IFO510 V1.00... - Page 5 Programming by software. With the Service Software incl. USB / Modbus adapter settings like Modbus settings can be changed, analog output can be rescaled and measured values can be assigned.ility to adapt these oil specific parameters for different oil types. IFO510 V1.00...
-
Page 6: Technical Data
< 500 Ohm Screw in thread: G 1/2" Optional: NPT ½“ Material case Zinc die casting Wetted parts: Sensor protection Perforated cap 1.4301 (SS304) Process connection (screw-in thread) 1.4404 (SS 316L) Electr. connection: M12, 8-pin, A-Coding EMC: DIN EN 61326-1 IFO510 V1.00... -
Page 7: Abmessungen / Elektr. Anschluss
Positive 4...20 mA Signal ** not connected Measuring value assignment for 4-20mA signal selectable M12 Connector Connection diagram + VB - VB RS 485 A RS 485 B Remark: The sensor must be connected in strainless state only IFO510 V1.00... -
Page 8: Installationshinweise
Place the sensor tip (hole cap) as deep as possible in the oil (> 40% of the sensor tip length). To obtain the shortest possible response time, there should be a continuous flow of oil. IFO510 V1.00... -
Page 9: Modbus
1007 1006 Float xs PPM 1009 1008 Float xs PPM static temperature 1011 1010 Float relative Humidity for DS400 / DS 500 / Handheld devices - Modbus Sensor Datatyp: „ Data Type R4-32“ match with „Data Type Float“ IFO510 V1.00... -
Page 10: Geräte Einstellungs-Register
13 = Atmospheric DewPoint [°F] 2009 2008 float 4mA Scale Low 2011 2010 float 20mA Scale High Modbus installation, Modbus settings and further information refer to the manual CS Instruments "Modbus Installation and Operating Instructions IFA 5xx sensors" IFO510 V1.00... -
Page 11: Kalibrierung / Justage
Calibration / Adjustment At the manufacturer Within the scope of DIN ISO certification, we recommend having the measuring instruments calibrated and, if necessary, adjusted by the manufacturer at regular intervals. The calibration cycles should be based on your internal specifications. Within the scope of DIN ISO certification, we recommend a calibration cycle of one year for the FO 510.
