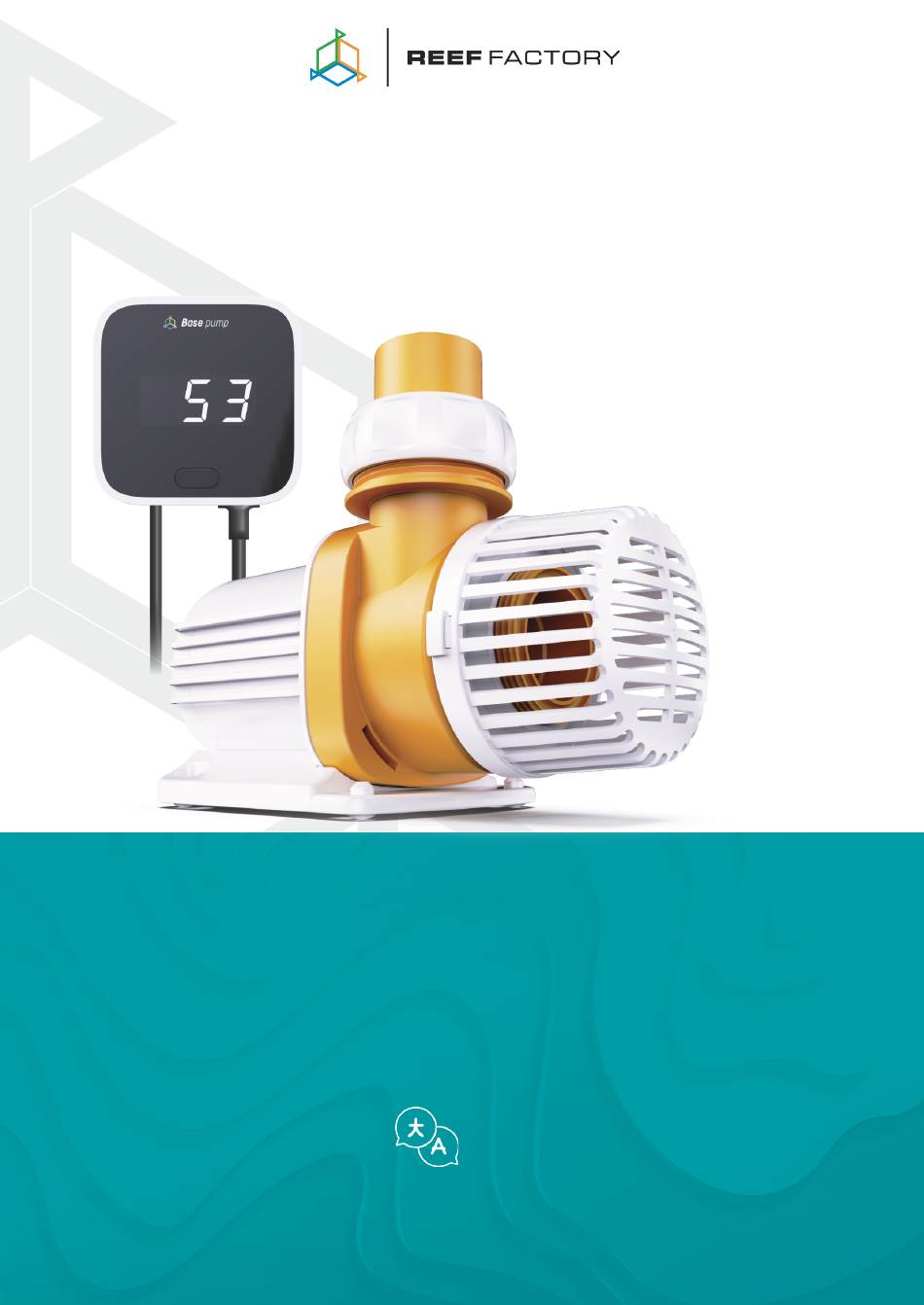

- Page 1 ver. 2.0.1 Base pump Manual instruction Dear customer, thank you for your purchase. ENGLISH www.reeffactory.com...
-
Page 2: Table Of Contents
IMPORTANT INFORMATION! Before setting up and using the device, read the entire manual very carefully. There may be slight differences in content between what is presented on the screen of the device and the descriptions in the manual Reef Factory 2023 Base pump user manual ©... -
Page 3: The Kit
I. Composition of the kit Pump 6. Connection to PVC pipe* 2. Controller 7. Hose connection* 3. Power supply 8. Rubber O-ring seal 4. Mains cable 9. DIN rail for mounting the controller 5. Fixing nut Reef Factory 2023 Base pump user manual ©... - Page 4 Reef Factory 2023 Base pump user manual ©...
-
Page 5: Assembly Of The Device
II. Device assembly Insert the rubber O-ring into the slot, then select a suitable connection for the hose or PVC pipe and tighten with the fixing nut. Reef Factory 2023 Base pump user manual ©... - Page 6 Fit a hose or insert a PVC pipe. Reef Factory 2023 Base pump user manual ©...
- Page 7 Once the cables are connected and the pump is in place you can connect the unit to the power supply. Reef Factory 2023 Base pump user manual ©...
- Page 8 You can also fit a pump to suck water through the pipe. To do this, unscrew the safety cover, insert the rubber O-ring into the slot, then select a suitable connection for the hose or PVC pipe and tighten with the retaining nut. Insert the hose or PVC pipe. Reef Factory 2023 Base pump user manual ©...
-
Page 9: Initial Configuration
“Add an aquarium” in the lower left corner of the screen and provide the necessary information. If you already have your aquarium in the Smart Reef app, proceed to the next step. Reef Factory 2023 Base pump user manual ©... - Page 10 This allows the app to connect devices to Wi-Fi networks more easily. Select from the scrolling list the device you want to add to your Smart Reef account and press “NEXT”. Reef Factory 2023 Base pump user manual ©...
- Page 11 NOTE: Reef Factory devices only support the 2.4 GHz Wi-Fi network band. If your router generates 2.4 GHz and 5 GHz bands, indicate the name of the 2.4 GHz network.
- Page 12 Allow the Smart Reef app, to temporarily connect to set up a Wi-Fi network. Congratulations! The device has been correctly added to your Smart Reef account and will appear in the list of devices within 60 seconds. Reef Factory 2023 Base pump user manual ©...
-
Page 13: Configuration Of Device Operation
Wi-Fi Reset restores Wi-Fi visibility for 10 minutes. Factory reset resets the device to factory settings. Once the unit has been reset to factory settings, a reconfiguration is required. Reef Factory 2023 Base pump user manual ©... -
Page 14: Control Button
V. Control button Switching the device on and off Press the button for 1 second until "On" appears on the screen. Then press the button by clicking once to confirm the selection. Reef Factory 2023 Base pump user manual ©... - Page 15 Feeding mode Press and hold the button for 3 seconds until "F" appears on the screen. Then press the button by clicking once to confirm the selection. Reef Factory 2023 Base pump user manual ©...
- Page 16 Each time you click, the power increases by 5%. If you want to change the power of the device in steps of less than 5%, you can do so in the app or web interface. Reef Factory 2023 Base pump user manual...
- Page 17 Use this option if, for example, you are changing your WiFi network password. The device will retain the settings. To add the device to the WiFi network, follow the description in section III. Reef Factory 2023 Base pump user manual...
- Page 18 Press and hold the button for 15 seconds until 'res' appears on the screen. Then press the button by clicking once to confirm the selection. After resetting the device to factory settings, a reconfiguration is necessary and all settings will be deleted. Reef Factory 2023 Base pump user manual ©...
-
Page 19: Light Indicator
On the top of the device, there is an LED indicating the status of the device. Its on/off mode can be managed in the device settings tab. Its different colours indicate: orange light- device operation Steady Red light- device error Flashing Orange light- device reset Reef Factory 2023 Base pump user manual ©... -
Page 20: Device Maintenance
VII. Device maintenance Before cleaning the device, be sure to disconnect it from the power supply! Disconnect the pump from the controller. Reef Factory 2023 Base pump user manual ©... - Page 21 Unscrew the hose connection and pull the pump out of the sump. Then unscrew the cover. Slide out the pump base. Reef Factory 2023 Base pump user manual ©...
- Page 22 When inserting the impeller, ensure that it is pushed all the way in. Under no circumstances connect the pump to the power supply without the impeller correctly positioned. Continue to assemble the unit in the opposite order to disassembly. Reef Factory 2023 Base pump user manual ©...
-
Page 23: Device Update
If the update does not complete within 30 minutes, reset the device. After the update, check your device's settings, in some cases as a result of the update I may change or revert to factory settings. Reef Factory 2023 Base pump user manual ©... -
Page 24: Error Codes
(greater than 90 deg. C) check that you have used the correct power maximum pump current exceeded supply and controller for your pump Reef Factory 2023 Base pump user manual ©... -
Page 25: Information And Warnings
Proper handling of waste electrical and electronic equipment contributes to avoiding harmful consequences for human health and the environment, resulting from the presence of hazardous components and improper storage and handling of such equipment. Reef Factory 2023 Base pump user manual ©... - Page 26 The full text of the EU Declaration of Conformity is available at the following web address: https://download.reeffactory.com/instructions/thermocontrol/ThermoControlCE.pdf. 4 The equipment manufactured by Reef Factory is intended for domestic use or aquarium shops only, it is not dedicated to industrial applications.
-
Page 27: Warranty Conditions
XI. Warranty conditions Reef Factory Ltd. does not guarantee uninterrupted or error-free operation of this product. The warranty covers only technical hardware problems that occurred during the warranty period and under normal conditions of use. 1. equipment manufactured by Reef Factory is guaranteed for a period of: 24 months for individual and business customers using consumer products. - Page 28 Customer. This applies in particular to network devices, the configuration of which may limit the connectivity and data exchange between the device and the server. Reef Factory 2023 Base pump user manual ©...
- Page 29 21. The guarantor is not liable for direct or indirect damage caused by a malfunction or breakdown of the unit or for damage occurring during the period of repair or replacement of the unit due to inability to use the unit. Reef Factory 2023 Base pump user manual ©...
-
Page 30: Technical Information
Name of device capacity class power consum "Input" temperature [l/h] ption Base pump 3000 - pump 3000 IPX8 24V DC 10°C - 50°C Base pump 5000 - pump 5000 IPX8 24V DC 10°C - 50°C Base pump 8000 - pump... -
Page 31: Knowledge Base And Technical Support
XIII. Knowledge base and technical support Need our help? Check out our knowledge base! Help Centre - Jira Service Management Do you have more questions? Use the form in the link above or email us -support@reeffactory.com Reef Factory 2023 Base pump user manual ©...
