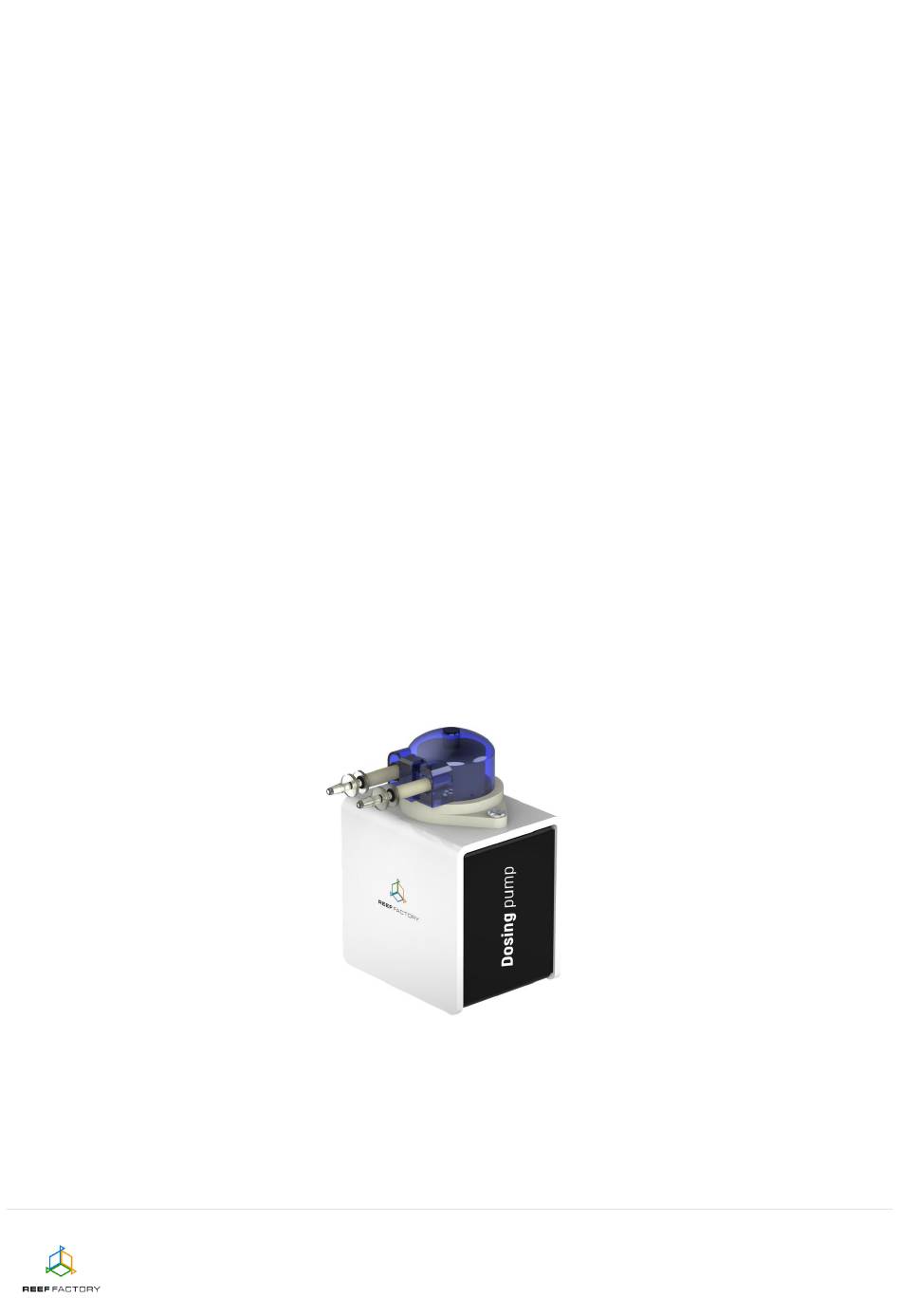

- Page 1 Thank you for purchasing our device Dosing pump Dosing pump device manual 1/16...
- Page 2 In order to set up the device correctly, follow the steps below. 1. See the figures below to learn how to connect the peripherals to the Dosing pump device correctly. Notice the designations of individual elements, so as not to confuse them while connecting.
- Page 3 Internet network (wired or wireless) is still active. Try to reconnect to the device and repeat the steps described above. Set up your device in five simple steps. Step one - choose the language you want to use when operating the device. Dosing pump device manual 3/16...
- Page 4 Dosing pump device manual 4/16...
- Page 5 Step two - set the amount of a selected liquid to be dosed during a day, the number of dosing cycles and the hour of the first dosing. Using this information, the pump will automatically calculate the size and frequency of doses. Dosing pump device manual 5/16...
- Page 6 The signal of your wireless network should be as strong as possible. Remember that in order to enable communication with the Smart Reef system, the network device which is connected to Dosing pump needs to have Internet access. Dosing pump device manual...
- Page 7 When the Dosing pump device successfully connects to your Wi-Fi network, its IP number will appear in the upper left corner of the screen. The appearance of the IP number means that everything is alright. Dosing pump device manual 7/16...
- Page 8 If you don’t need to manage your device remotely, you may ignore this step. However, by doing so you will miss out on several additional features, such as access to device updates. Dosing pump device manual 8/16...
- Page 9 Step five - congratulations, you have successfully set up your Dosing pump device. Dosing pump device manual 9/16...
- Page 10 6. After the setup procedure is finished (after pressing the “FINISH” button), the current status of your device will appear on the screen. Please note that your new smart dosing pump has some additional features. They will be described in the following sections of this instruction.
- Page 11 10. Next, you will have to check the amount of liquid poured into the prepared container (in milliliters). 11. In the next step enter the time after which the device should remind you to recalibrate the device. You will receive a reminder in the form of a Smart Reef system notification. Dosing pump device manual 11/16...
- Page 12 9 ml of liquid a day in 6 cycles 1.5 ml each; - after decreasing the daily dose (entering a negative dose value) by 3 ml, the pump will dose 3 ml of liquid a day in 6 cycles 0.5 ml each; Dosing pump device manual 12/16...
- Page 13 Editing options make it possible to manually set up the liquid container size and the amount of liquid currently held in it. Dosing pump device manual 13/16...
- Page 14 The information you provide will be used by the pump to automatically calculate and set the dosing hours and indicate a percentage share of each dose in relation to the scheduled daily dose of the liquid. Dosing pump device manual 14/16...
- Page 15 (included in the package) on the top part of its housing (near the light bar). Tip: move the magnet along the side of the device in accordance with the image below, to make it possible for the device to detect its presence. Dosing pump device manual 15/16...
- Page 16 18. Additional and up-to-date information about the device, its operation and setup can be found at our website www.reeffactory.com, in the relevant product tab. Dosing pump device manual 16/16...
