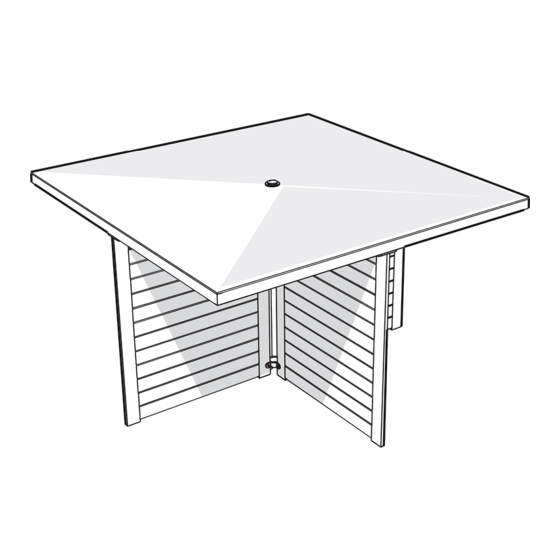

- Page 1 ASSEMBLY INSTRUCTIONS All manuals and user guides at all-guides.com ADRIA 4 SEAT CUBE SET SKU: TOMO125-123 / TOMO125-124 2021 V1.0 IMPORTANT NOTICE THIS BOOKLET CONTAINS USEFUL INFORMATION ABOUT WARRANTY & CARE INSTRUCTIONS. PLEASE KEEP FOR FUTURE REFERENCE.
-
Page 2: Parts List
ASSEMBLY INSTRUCTIONS All manuals and user guides at all-guides.com PARTS LIST Part Part Name Adria Cube Table Glass Adria Chair Base Cushion Back Cushion Footstool Cushion Centre Bracket Footstool... - Page 3 ASSEMBLY INSTRUCTIONS All manuals and user guides at all-guides.com PARTS LIST Part Part Name M6 x 35mm Screw Washer M6 x 12mm Screw Suction Ring Parasol Ring Spanner Allen Key...
-
Page 4: Safety Advice
• Please only use this product for its intended purpose as outdoor furniture within a residential environment. Failure to do so will void your warranty. • Westminster Outdoor Living holds no responsibility for any damages caused due to normal wear and tear, incorrect assembly, misuse and/or negligence •... - Page 5 ASSEMBLY INSTRUCTIONS All manuals and user guides at all-guides.com ASSEMBLY STEP 1 Secure 2 x centre brackets (G) between the table legs (A) using 8 x M6 x 35mm screws (I), 8 x washers (J) and 8 x nuts (K). Tighten all the screws using the allen key (P) and spanner provided (O).
- Page 6 ASSEMBLY INSTRUCTIONS All manuals and user guides at all-guides.com ASSEMBLY STEP 2 Secure the suctions rings (M) onto the table frame (A).
- Page 7 ASSEMBLY INSTRUCTIONS All manuals and user guides at all-guides.com ASSEMBLY STEP 3 Position the glass (B) onto the suctions rings (M). Ensure the suctions rings are flat.
- Page 8 ASSEMBLY INSTRUCTIONS All manuals and user guides at all-guides.com ASSEMBLY STEP 4 Position the parasol ring (N) into the centre of the glass (B). To secure the parasol, position the 2 x M6 x 12mm screws (L) and 2 x washers (J) into the brackets (G). Tighten using the allen key (P).
- Page 9 ASSEMBLY INSTRUCTIONS All manuals and user guides at all-guides.com ASSEMBLY STEP 5 Add 4 x footstool cushions (F) to the 4 x footstools (H). For storage slide the footstool into the space underneath the chair (C).
- Page 10 ASSEMBLY INSTRUCTIONS All manuals and user guides at all-guides.com ASSEMBLY STEP 6 Add 4 x base cushions (D) and 4 x back cushions (E) to 4 x chairs (C). Store the chair (C) by pushing down the back support, then sliding it into the space underneath the table (A).
-
Page 11: Warranty Information
ASSEMBLY INSTRUCTIONS All manuals and user guides at all-guides.com CARE, MAINTENANCE & WARRANTY INFORMATION Our range of aluminium furniture is designed for continual outdoor use. The aluminium frame ensures that you can leave it outside all year round. ALUMINIUM CARE The aluminium framework is incredibly low maintenance and is resistant to UV rays, salt water, frost and snow and requires only basic care to keep it clean. - Page 12 All manuals and user guides at all-guides.com...
