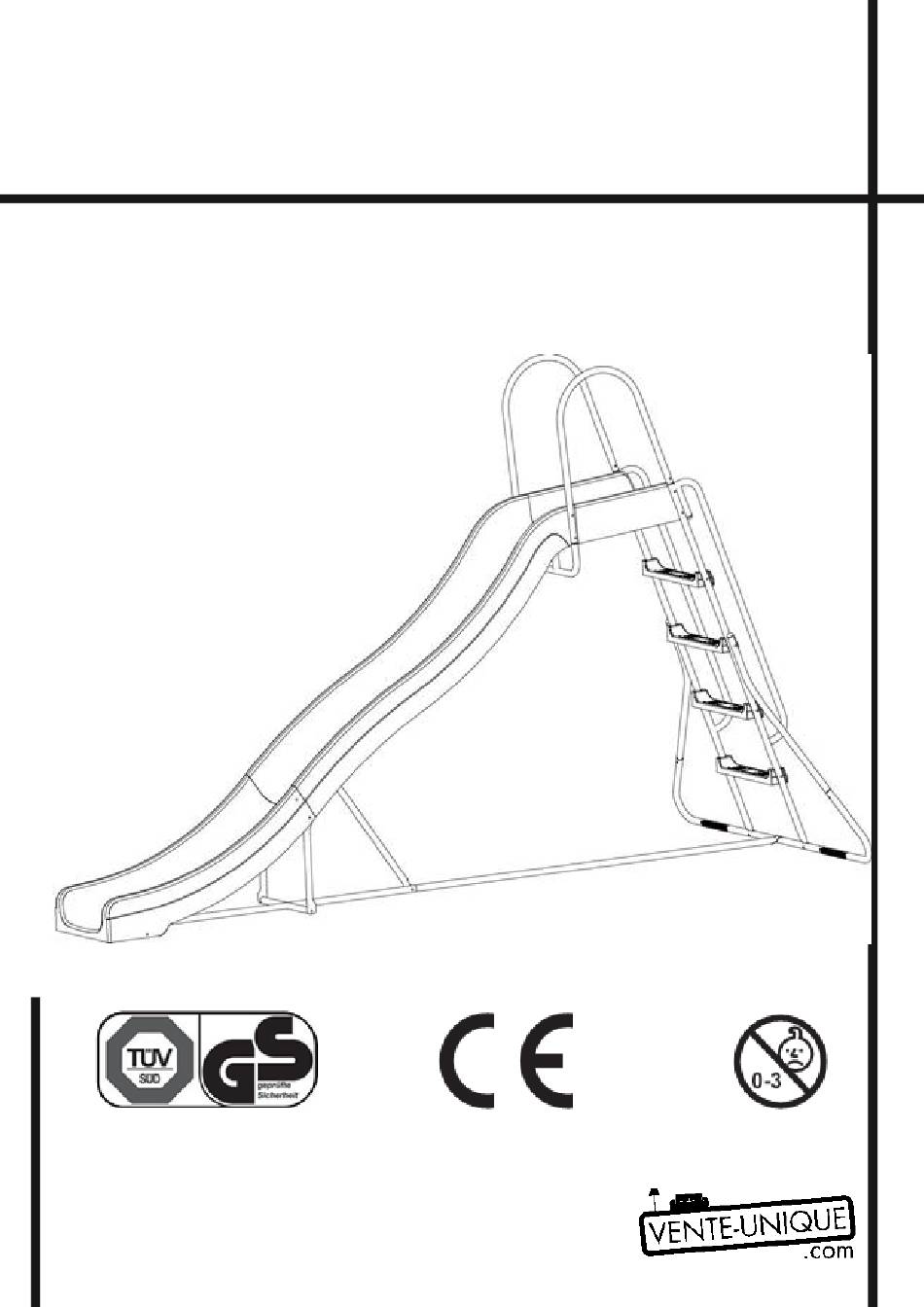

- Page 1 FR Description du produit IT Descrizione del prodotto EN Product description NL Productomschrijving ES Descripción del producto PT Descrição do produto DE Produktbeschreibung SURFY Toboggan...
- Page 2 Meuble à usage domestique / Domestic furniture / Meuble a uso domestico / Möbel für den häuslichen Wohngebrauch/ Mobili per la casa/ Huishoudmeubilair / Mobiliário doméstico 158186ORAN ORANGE/ ORANGE/ ANARANJADO/ ORANJE 3517920743544 ORANGE/ ORANGE/ ANARANJADO/ ORANJE 1. Reperez les pieces constituant votre meuble. 2.
- Page 3 1. Bitte überprüfen Sie, ob alle Einzelteile lhres Möbelstücks vorhanden sind. 2. Bitte überprüfen Sie, ob alle Schrauben und Verbindungsteile für die Montage vorhanden sind. 3. Halten sie alle notwendigen Montage-Werkzeuge für ihren Einsatz gebrauchsbereit. 4. Bereiten Sie einen passen Ort für die Montage vor. Ein Teppichboden oder ähnliches schützt vor Kratzern. 5.
- Page 4 IMPORTANT, A CONSERVEZ-LES POUR UNE REFERENCE ULTERIEURE: LIRE ATTENTIVEMENT IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY IMPORTANTE, CONSERVAR PARA FUTURAS CONSULTAS: LEER ATENTAMENTE WICHTIG, FÜR SPÄTERES NACHSCHLAGEN AUFBEWAHREN: SORGFÄLTIG LESEN IMPORTANTE, CONSERVARE PER RIFERIMENTO FUTURO, LEGGERE CON ATTENZIONE BELANGRIJK, BEWAARALS EVENTUEEL NASLAGWERK, ZORGVULDIG LEZEN IMPORTANTE, GUARDAR PARA REFERÊNCIA...
-
Page 5: Safety Notes
SAFETY NOTES To prevent damage and accidents to persons and/or property, the following instructions and advice must be followed: 1. Read these instructions carefully & strictly follow the instructions before assembling the product or using it for the first time. 2. -
Page 6: Component List
21. Failure to assemble this item as per the instruction may cause injury to the user. 22. Age suitability: 3-10 years. 23. Do not put your hand near moving parts. 24. Please note that changes in temperature may affect the surface of the slide. Please store away in adverse weather conditions. - Page 7 COMPONENT LIST Description Illustration Tie bar Cross tie bar Ladder stabilizer bar L/R support bar Main handrail tube Top handrail tube Support-frame of top slide chute Support bar for Top slide chute L/R support bar for bottom slide chute Support bar for bottom slide chute Spanner Ground anchor Plastic end-cap...
- Page 8 SL-03 screw & domenut placement E=M6x15mm x 6pcs A=M6x60mm x 2pcs, I=square domenut x 2pcs D=M6x20mm x 2pcs C=M6x35mm x 6pcs, I=square domenut x 6pcs B=M6x50mm x 4pcs C=M6x35mm x 13pcs...
- Page 9 Wavy Slide Assembly For ease of installation, it is recommended two adults assemble the wavy slide while one adult is connecting the relevant pieces, the other adult can assist by supporting the slide chute and holding the connecting pieces in the appropriate position. Step 1 35MM ￭...
- Page 10 ￭ Turn the back side of Bottom wavy slide chute (M) upward and connect the Support bar for bottom slide chute (W) onto the Bottom wavy slide chute (M) with bolt Ex1. Step 3 Upper screw hole Lower screw hole figure 1 Upper screw * Tools recommendation for figure 1:...
- Page 11 ￭ Connect the Top wavy slide chute (K) and Middle wavy slide chute (L) by embedding tongue-and-groove joint firmly, ensure the connection meet closely and without any gap between the chutes. Step 5 * Tools recommendation for figure 1: figure 1 Using the long nose pilers to fix the nut for the small area.
- Page 12 ￭ Embedding the 1st, 2nd and 4th Ladder step (J) to Main handrail (R) with bolt Cx1 + spring washer Gx1 + square domenut Ix1 as figure 1 and leave the 3rd ladder step unassembled. ￭ Insert the Plastic end-cap (Z) into the end of short steel tube close to the 4th step.
- Page 13 ￭ Place straight side of the support bar (V) outward to the bottom hole of the middle wavy slide chute (L) and bottom wavy slide chute (M). ￭ Secure the top of (V) to the bottom hole of (L) & (M) with bolt Dx1 + washer Fx1 + spring washer Gx1 + domenut Hx1.
- Page 14 the back side of middle slide chute (L) as figure 2. ￭ Thread (O), (N) and (U) with bolt Cx1 + washer Fx1 + spring washer Gx1 + domenut Hx1 as figure 3. Step 11 ￭ Connect the Support bar (Q) into the Ladder stablilizer bar (P) with bolt Cx1 + washer Fx1 + spring washer Gx1 + domenut Hx1) Step 12...
- Page 15 ￭ Thread the Support bar (Q) and Main handrail tube (R) and the 3rd step (J) with bolt Ax1 + spring washer Gx1 + square domenut Ix1. ￭ Insert the Plastic end-cap (Z) into the end of Support bar (Q). Step 13 ￭...
-
Page 16: Care And Maintenance
Care and Maintenance 1. This equipment must be assembled and checked by an adult. 2. Regularly check all nuts and bolts for tightness before use and replace any worn, defective or missing parts. DO NOT try to repair broken parts. 3. - Page 17 VS-Jul-2017 Imported by - Importé par CAFOM DISTRIBUTION 9 Rue Jacquart 93310 Le Pré-Saint-Gervais Made in China/ Fabriqué en Chine...
