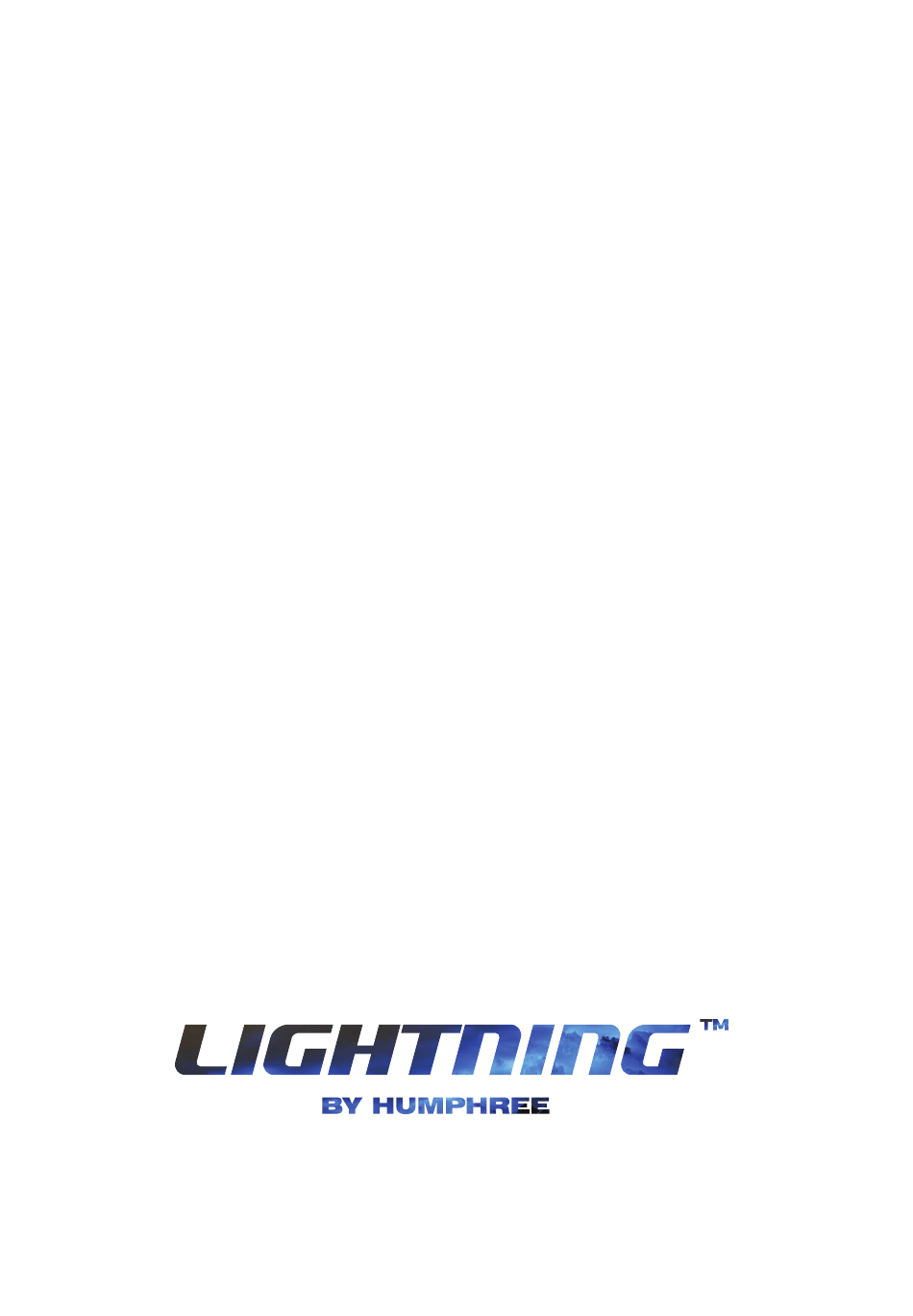

  • Page 1 O PE RATO R M AN U AL I N T ERC E PTOR...

  • Page 2: Safety Information

    1. SAFETY INFORMATION 1.1 WARN IN GS A N D I MP ORTA N T N OT I C ES TE C H NI CAL D OCUM EN TAT I O N T he i n fo rmat ion in t he follow in g d ocu me n t wa s correct a t the ti m e i t was pro duc ed. How ever, Hum phree ca nn o t ac ce pt l iab ilit y for a ny in accu ra ci es or omi ssi on s i t m ay c onta in .

  • Page 3: About This Manual

    2. ABOUT THIS MANUAL The purpose of this manual is to give instructions on how to operate the LIGHTNING by Humphree system. This manual is available digitally as a PDF file, and can be downloaded in the following ways: •...

  • Page 4: Table Of Contents

    CONTENTS 1. SAFETY INFORMATION 1.1 WARNINGS AND IMPORTANT NOTICES 2. ABOUT THIS MANUAL 2.1 INTENDED PRODUCT USE 2.2 INTENDED AUDIENCE 3. SYSTEM OVERVIEW 4. FUNCTION PACKAGES 4.1 DISPLAY FUNCTION 4.2 DESCRIPTION OF FUNCTION 5. CONTROL PANEL 5.1 TOUCH SCREEN GESTURES 5.2 DISPLAY FEATURES 5.3 DISPLAY SETTINGS 6.
  • Page 5 8. COORDINATED TURN 8.1 ABOUT FUNCTION 9. PITCH & ROLL STABILIZATION 9.1 ABOUT FUNCTION 9.2 HOW TO USE 10. MANUAL CONTROL 11. RESET 12. MAINTENANCE 13. TROUBLESHOOT 13.1 ALARM ALERT 13.2 CLEAR ALARM...

  • Page 6: System Overview

    3 .TYP ICAL SYSTEM OVERVIEW CONTROL PANEL ETHERNET SWITCH (OPTIONAL) (OPTIONAL) BATTERY EXTBUS (NOT INCLUDED) NMEA2000 (OPTIONAL) CONTROL UNIT (LCU) FUSE (NOT INCLUDED) G P S IN P U T INTERCEPTOR INTERCEPTOR...

  • Page 7: Function Packages

    4.FU NCTI ON PACK AGES 4.1 DISPLAY AVAILA BL E F U N CT I O N S FUNCTIONS INCLUDED Pitch Roll FUNCTION PACKAGES C-Turn Auto Trim Auto List Stabilization Control √ √ √ Comfort √ √ √ √ Comfort PLUS √...

  • Page 8: Control Panel

    5. C ON TROL PANEL 5.1 TO U CH SCRE E N GE ST U R E S Tap. Tap one Tap and drag. Tap Swipe. Move one finger lightly and drag with one finger across the on the screen. finger.

  • Page 9: Display Features

    5. CON T RO L PA NE L 5.2 DISPLAY F E AT U R ES MAIN SCREEN Drop down menu GPS speed Auto functions ON/OFF Page indicator UNDERWATER LIGHTS Underwater lights ON/OFF Selected color Select color DROP DOWN Lights intensity Brightness Settings menu Detailed view...
  • Page 10 5. CO NT RO L PA NEL 5 .2 D ISPLAY F E AT UR E S DETAILED CONTROLS OFF Bow down List to List to port starboard Bow up DETAILED CONTROLS ON Trim List angle angle Port Starboard interceptor interceptor Port Starboard...

  • Page 11: Display Settings

    5. CON T RO L PA NE L 5. 3 DISPL AY SE T TIN GS Find the display settings in SETTINGS/ SYSTEM SETUP/DISPLAY. ORIENTATION There are three available options for display orientation; PORTRAIT, LANDSCAPE, and REVERSE LANDSCAPE. Portrait mode Landscape mode DISPLAY THEME Choose between DARK MODE or LIGHT MODE.

  • Page 12: Auto Trim

    If your vessel runs with high trim it is likely that you are using too much fuel and not getting the speed that you could do. With Humphree Automatic Trim Control you will always have the optimum trim on your boat, with out the need of adjusting the trim system manually.

  • Page 13: How To Use

    6. AUTO TRI M 6.2 H OW TO U SE T H E F U N CT I O N AUTO TRIM is turned on by default. However, it is possible to deactivate. If deactivated, the function tile will turn grey. It is possible to manually adjust the trim angle to compensate for different conditions, e.g.

  • Page 14: Auto List

    7. AUTO L I ST 7.1 ABO UT T H E F U NCT I ON Due to uneven loading or cross winds, the boat will often lean to one side. When running in a straight course, AUTO LIST automatically prevents the boat from heeling.

  • Page 15: How To Use

    7. AUTO L I ST 7.2 H OW TO U SE T H E F U N CT I O N AUTO LIST is turned on by default. However, it is possible to deactivate. If deactivated, the function tile will turn grey. It is possible to manually adjust the list command to compensate for different loading conditions.
  • Page 16 8. C OORD IN AT ED T U RN 8.1 ABO UT T H E F U NCT I ON TURN CONTROL Thanks to the coordination between the rudder and interceptors, the COORDINATED TURN automatically controls the heeling angle of the boat during turns to reduce the side forces for the people on board.
  • Page 17 PITCH CONTROLL instructs the Lightning system to reduce unwanted pitching which eliminates sea sickness and fatigue. Since the Humphree RCU system will retract the Interceptors automatically when not needed, there is no added hull resistance when the system is deactivated. This is unique among marine stabilization systems.
  • Page 18 10. MA NUAL CO NTROL Bow down Both starboard and port interceptors deploy simultaneously and the bow of the vessel trims down. Tap and hold for faster deployment. Bow up Both port and starboard interceptors retract simultaneously and the bow of the vessel trims up. Tap and hold for faster retraction.
  • Page 19 10. M ANUA L CONT ROL Trim/list angle The trim/list angle indicators show the current boat trim and list angles. If the list indicator is not close to 0.0º angle when the boat is floating at even keel at zero speed. That means that the list angle need to be reset.
  • Page 20 11. RESE T RESET ANGLE CALIBRATION Go to: SETTINGS/SYSTEM SETUP/SENSOR SETUP/ANGLE CALIBRATION...
  • Page 21 12. M AI NTENAN CE To increase the durability of the system: • Apply antifouling to the parts that are exposed to water for more than two weeks at a time. • Brush the interceptors regularly to avoid marine growth is best practice. TASK INTERVAL Visual inspection and function test of the system...
  • Page 22 13. TROUB LESHOOTING If you are experiencing issues, visit the website below: https://humphree.com/aftermarket-support/diagnostic-trouble-codes/ 13 . 1 ALARM ALE RT Main screen Status bar...
  • Page 23 13. TROUB LESHOOTIN G 13 . 2 CLE A R A LA RM Tap and drag down to get to the drop-down menu. Go to SETTINGS. Select ALARMS. A list of the current alarms will be visible. Select the alarm. Follow the instruction on the screen to clear the alarm.
