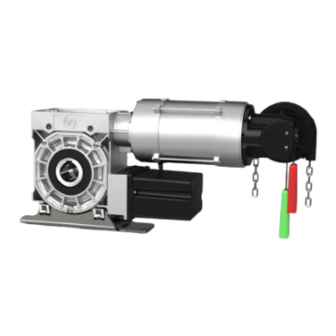

- Page 1 Installation Instructions ELEKTROMAT SI 40.10-40,00 Model: 10002367 10012 -en- Status: 02.02.2022...
- Page 2 GfA ELEKTROMATEN GmbH & Co. KG Wiesenstraße 81 D-40549 Düsseldorf www.gfa-elektromaten.de info@gfa-elektromaten.de...
-
Page 3: Table Of Contents
Table of contents General safety information ....................4 Technical data ........................ 6 Integrated safety brake ....................7 Mechanical installation ....................8 Electrical installation ..................... 12 Limit switch setting ......................13 ... -
Page 4: General Safety Information
The safe operation of the product can only be ensured if it is used as specified. Follow the installation instructions. Observe all specifications, especially warnings, when installing the product in the overall system. GfA is not liable for damage resulting from non-observance of the installation instructions. The resulting overall system must be reassessed for its safety in accordance with applicable standards and directives (e.g. - Page 5 Warning - Failure to follow these installation instructions may result in severe injury or death. Please read these instructions before using the product. Keep these instructions handy. Include these instructions when passing on the product to third parties. Warning - Danger from improper use of the product! ...
-
Page 6: Technical Data
2 Technical data Designation Unit Output speed Output torque 400 (320) Output / hollow shaft 40,00 Series SG 85F Limit switch range (maximum revolutions of the output / hollow shaft) Supply voltage 3N~ 400 Operating current 2,95 Operating frequency Power factor cos φ 0,58 Safety circuit Degree of protection... -
Page 7: Integrated Safety Brake
3 Integrated safety brake A safety brake is integrated into the gearbox of this ELEKTROMATEN. The safety brake protects against the door dropping due to breakage or wear of the gear teeth. The safety brake works regardless of the mounting position, speed and rotating direction. It is maintenance-free. -
Page 8: Mechanical Installation
4 Mechanical installation Prerequisites The permissible loads on walls, fastenings, mountings and transmission elements must not be exceeded, even for maximum holding torques or locking torques (▶ refer to technical data). Connection elements ▶ Self-locking connection ▶ Utilize the hole diameter ▶... - Page 9 Mounting Two elongated holes are provided for mounting. BAGAD0 3 0 0 1 _Z0 0 3...
- Page 10 Installation The descriptions below apply to general door specifications. The specifications of the door manufacturer must also be observed during installation. Warning - Potential injury or danger to life! During installation, be sure to use a lifting device that has a sufficient load- carrying capacity.
- Page 11 ▶ Attach the drive unit. BAGAE0 3 0 0 5 _Z0 0 2 ▶ Tighten all connection elements (M12) to BAGAE0 3 0 1 0 _Z0 0 2 75 Nm. Install all other connection elements according to the specifications of the door manufacturer.
-
Page 12: Electrical Installation
5 Electrical installation Warning - Danger to life from electric current! Switch the mains OFF and check that the cables are de-energised Observe the applicable regulations and standards Make a proper electrical connection Use suitable tools Performing electrical installation Remove the cover. -
Page 13: Limit Switch Setting
6 Limit switch setting The setting of the final limit positions OPEN and CLOSE is described in the instructions for the door control. The door control must meet Performance Level c! Use only door controls that evaluate the limit switch according to EN 12543 and meet Performance Level c. -
Page 14: Motor Connection
7 Motor connection Motor X13 Motor plug 8 Alternative motor connection Motor X13 Motor plug... -
Page 15: Limit Switch Connection
9 Limit switch connection Thermal contact S10 Emergency manual operation X12 DES connection Safety circuit Channel B (RS485) Ground Channel A (RS485) Safety circuit Supply voltage... -
Page 16: Emergency Manual Operation (Hand Chain Operator)
10 Emergency manual operation (hand chain operator) Emergency manual operation is designed for opening or closing the door without power supply. Its activation interrupts the control voltage. Electrical operation is no longer possible. Warning – Injuries due to incorrect operation! ... - Page 17 Switch on by pulling the red handle. Open or close by pulling the chain. Switch off by pulling the green handle.
-
Page 18: Completion Of Commissioning / Testing
11 Completion of commissioning / testing Check the following components and after that, mount all covers. Gearbox Check drive unit for oil loss (a few drops are not critical). Protect output shaft permanently against corrosion. Safety brake in the gearbox The safety brake requires no maintenance or inspection. - Page 19 Emergency manual operation Function to be checked in a de-energised state. Carry out functional test only between final limit positions. Limit switches Check the final limit positions by opening and closing the door completely. The safety zone must not be reached. Entire drive unit Note! ...
-
Page 20: Disposal
Dispose of old devices properly according to local legal regulations. Return old devices to the return and collection systems available. You can also return GfA products free of charge. Please apply enough postage to the package and mark it as "old devices". -
Page 21: Declaration Of Incorporation / Declaration Of Conformity
EMC Directive 2014/30/EU within the meaning of RoHS Directive 2011/65/EU The following requirements from Appendix I of GfA ELEKTROMATEN GmbH & Co. KG the Machinery Directive 2006/42/EC are met: declare under our sole responsibility that the 1.1.2, 1.1.3, 1.1.5, 1.2.2, 1.2.3, 1.2.6, 1.3.2,...
