UNDER-MOUNT HOOD
MODEL : UC200-2036D
INSTALLATION GUIDE / USE AND CARE MANUAL
IMPORTANT: Read and save these instructions.
Installer: Leave this manual with the owner.
Owner: Keep this guide for future reference.
2023
A

Advertisement

loading

Summary of Contents for Adexa UC200-2036D

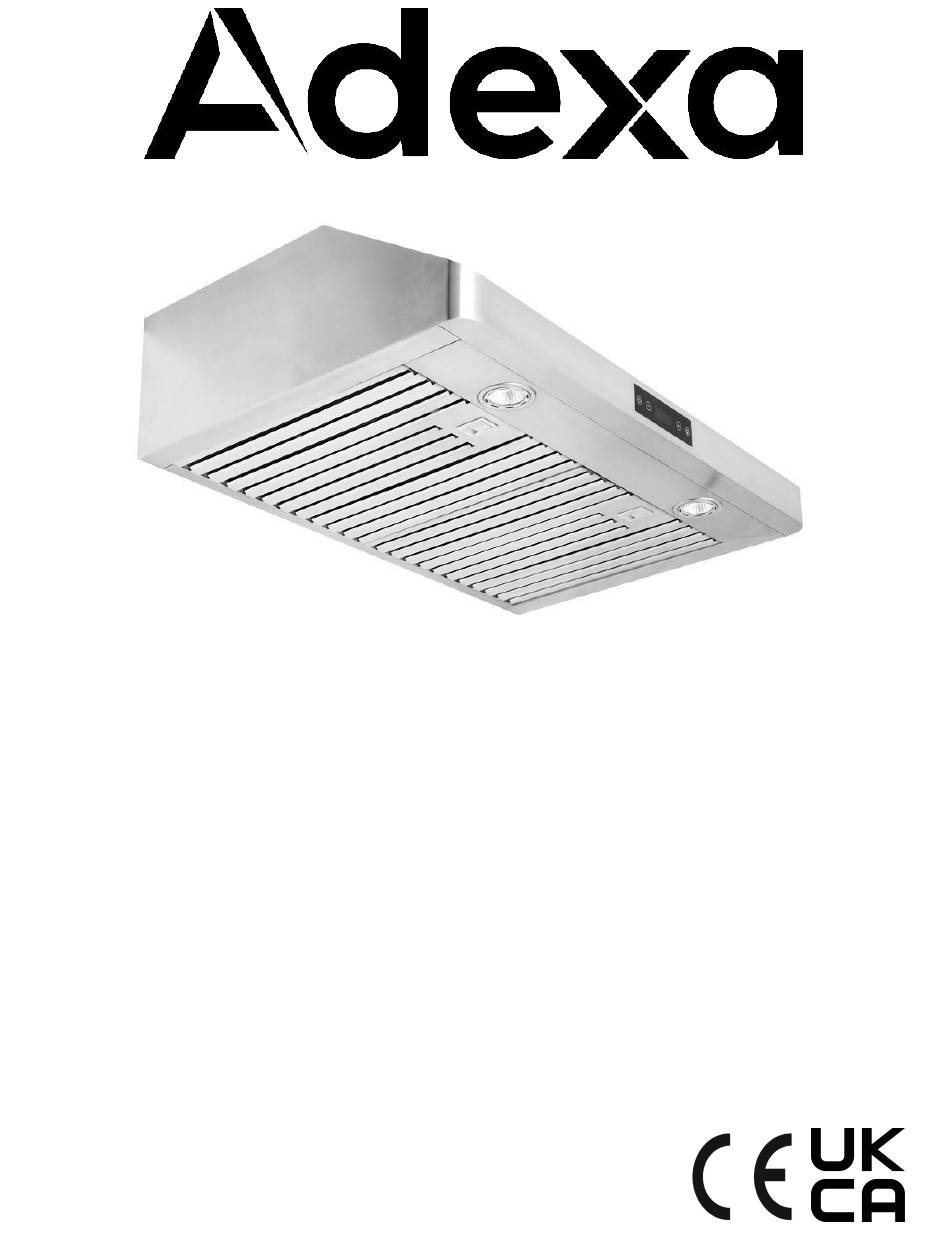

  • Page 1 UNDER-MOUNT HOOD MODEL : UC200-2036D INSTALLATION GUIDE / USE AND CARE MANUAL IMPORTANT: Read and save these instructions. Installer: Leave this manual with the owner. Owner: Keep this guide for future reference. 2023...
  • Page 3: Table Of Contents

    Table of Contents IMPORTANT SAFETY PRECAUTIONS ..............4-5 INSTALLATION INSTRUCTIONS ................6-13 OPERATING THE HOOD ..................14-16 MAINTENANCE......................17-18 WARRANTY......................... 19 APPROVED FOR APPLIANCES OF INDOOR USE ONLY. READ AND SAVE THESE INSTRUCTIONS. PLEASE READ THE ENTIRE INSTRUCTIONS BEFORE YOU BEGIN. INSTALLATION OF THE UNIT MUST RESPECT ALL CODES.
  • Page 4: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS READ AND SAVE THESE INSTRUCTIONS CAUTION: For indoor use only. Do not use to exhaust hazardous or explosive materials and/or vapors. CAUTION: Range hood may have very sharp edges; please wear protective gloves when installing, cleaning or servicing the unit.
  • Page 5 WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. WARNING TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:  Never leave a range unattended.  Boil-overs cause smoke and greasy spillovers that may ignite. Heat oils slowly on low or medium setting. Always turn hood ON when cooking at high heat.
  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS TOOLS NEEDED TO INSTALL THE RANGE HOOD Needle nose pliers Safety gloves and goggles   Scissors (to cut duct tape) Electrical drill   Duct tape Phillips screwdriver   Marker or pencil Flathead screwdriver   Level Hammer ...
  • Page 7 DIMENSIONS FOR 36’’ HOOD Overall View Back View Installation Floor to ceiling height variable Floor to counter top height 36" (standard) Recommended height between cooking surface and bottom of the 28"-30" hood Hood height 9.8" Cabinet height The information contained herein is based on sources that we believe to be reliable, but is not guaranteed by us, may be incomplete and/or may change without notice...
  • Page 8 BEFORE INSTALLING THE HOOD For the most efficient airflow exhaust, use a straight run or as few elbows as possible.  Vent unit to the exterior only.  At least two people are required for installation.  Remove the range hood from the carton packaging and place on a flat surface for assembly. ...
  • Page 9 Venting Requirements Height & Clearance • Vent system must evacuate to the exterior (through the roof or side wall). • DO NOT terminate the vent system in an attic or other enclosed area. • Use rigid metal/aluminum ventonly. • NEVER use plastic vent or plastic vent cover. Cabinet Cabinet •...
  • Page 10 IMPORTANT • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. • Use metal/aluminum duct work only. • Fasten all connections with sheet metal screws and tape all joints with certifed Silver Tape or Duct Tape. •...
  • Page 11 ELECTRICAL REQUIREMENTS AND INSTALLATION WARNING THIS RANGE HOOD MUST BE PROPERLY GROUNDED. TURN OFF ELECTRICAL POWER AT SERVICE ENTRANCE BEFORE WIRING. CHECK TO MAKE SURE THAT THE ELECTRIC CORD IS NOT IN CONTACT WITH THE SHARP EDGES OF THE APPLIANCE. IMPROPER GROUNDING CAN RESULT IN A RISK OF ELECTRIC SHOCK.
  • Page 12 INSTALLATION Measure the distance between the cooking surface and the bottom of the range hood. A distance of 24” to 30” is recommended*. Due to different ceiling height configurations, the recommended height may not be applicable Step 1: You have two options for installing this range hood (see INSTALLATION DIAGRAMS on page 7): A.
  • Page 13 INSTALLATION (continued) 2-2. Draw electrical wires through cabinet access opening on back of the range hood (refer to figure 6), center the hood beneath the cabinet and flush with the front of the cabinet. 3-2. From inside the hood, place hood mounting screws in the exact center of each knockout holes and secure to the cabinet bottom.
  • Page 14: Operating The Hood

    RANGE HOOD OPERATIONS Control Panel Layout and Buttons Configurations: Light Power Increase Value Digital Power-Off Delay Decrease Value Clock/ Digital Display BUTTON FUNCTIONS: • Power: Power ON/OFF the range hood and activate power-of delay timer. • Decrease Value: Blower (motor) speed decrease, timer value decrease, and enter timer mode. •...
  • Page 15 CIRCUIT DIAGRAM SPECIFICATIONS Specifications Body Design Seamless Stainless Steel, Satin Finish 220-240V/50Hz Power Rating General Input Power 126W Motor Input Power 120W(60W+60W) Ampere 1.5A Levels Of Speed Control Leves 560CFM Airflow(Max) 1.0Sone(40dB) / 2.8Sone(55dB) / 5.3Sone(64dB) Noise Level (dB / sone) Number Of Motors 2 Motors Single Chamber Ultra Quiet...
  • Page 16 RANGE HOOD ASSEMBLY Description Quantity Power Cord 6-inch Round Duct Connector Square Duct Plate Square Duct Connector Hood Body Control Panel LED Light Lid of Plastic box Main Circuit Board Capacitor Plastic box Protective Panel Motor Fan blade Protective Cover Baffle Filter...
  • Page 17: Maintenance

    MAINTENANCE SAFETY WARNING: NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN For optimal operation, clean range hood, surfaces and filters regularly. Regular care will help preserve the appearance of the range hood. CLEANING THE EXTERIOR SURFACES Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent or steel wool pads, which will scratch and damage the stainless-steel surface.
  • Page 18 REPLACING THE LED LIGHT BULBS CAUTION: LED lamps can only be replaced with a new LED lamp. The lamp rating must be equal to the one already used. Make sure all the control switches are off and the hood is unplugged, or the breaker is OFF. Replacing the LED light fixture: •...
  • Page 19: Warranty

    SERVICE AND WARRANTY LIMITED WARRANTY One Year Parts Warranty: For one year from the date of original purchase, your local reseller will provide free of charge, non-consumable replacement parts or components that failed due to manufacturing defects. Subject to the conditions and limitations set forth below, your local reseller will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials.
