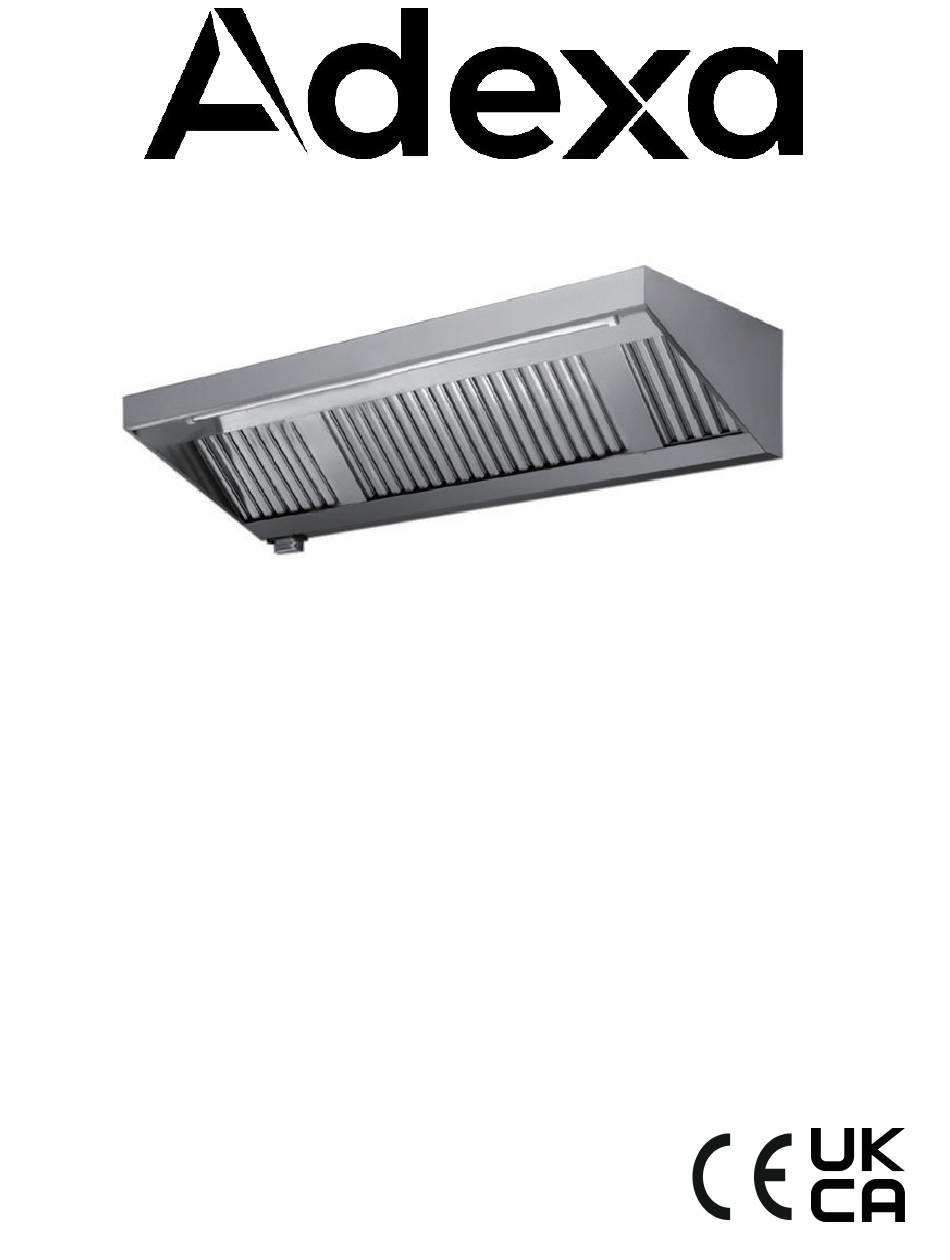

- Page 1 WALL-MOUNT HOOD MODEL : AP238-PS87-63D INSTALLATION GUIDE / USE AND CARE MANUAL IMPORTANT: Read and save these instructions. Installer: Leave this manual with the owner. Owner: Keep this guide for future reference. 2023...
-
Page 3: Table Of Contents
Table of Contents IMPORTANT SAFETY PRECAUTIONS ..............4-5 INSTALLATION INSTRUCTIONS ................6-10 OPERATING THE HOOD ..................11-13 MAINTENANCE........................14 WARRANTY......................... 15 APPROVED FOR APPLIANCES OF INDOOR USE ONLY. READ AND SAVE THESE INSTRUCTIONS. PLEASE READ THE ENTIRE INSTRUCTIONS BEFORE YOU BEGIN. INSTALLATION OF THE UNIT MUST RESPECT ALL CODES. -
Page 4: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS READ AND SAVE THESE INSTRUCTIONS CAUTION: For indoor use only. Do not use to exhaust hazardous or explosive materials and/or vapors. CAUTION: Range hood may have very sharp edges; please wear protective gloves when installing, cleaning or servicing the unit. - Page 5 WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. WARNING TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: Never leave a range unattended. Boil-overs cause smoke and greasy spillovers that may ignite. Heat oils slowly on low or medium setting. Always turn hood ON when cooking at high heat.
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS TOOLS NEEDED TO INSTALL THE RANGE HOOD Needle nose pliers Safety gloves and goggles Scissors (to cut duct tape) Electrical drill Duct tape Phillips screwdriver Marker or pencil Flathead screwdriver Level Hammer ... - Page 7 DIMENSIONS FOR 63’’ HOOD...
- Page 8 BEFORE INSTALLING THE HOOD For the most efficient airflow exhaust, use a straight run or as few elbows as possible. Vent unit to the exterior only. At least two people are required for installation. Remove the range hood from the carton packaging and place on a flat surface for assembly. ...
- Page 9 ELECTRICAL REQUIREMENTS AND INSTALLATION WARNING THIS RANGE HOOD MUST BE PROPERLY GROUNDED. TURN OFF ELECTRICAL POWER AT SERVICE ENTRANCE BEFORE WIRING. CHECK TO MAKE SURE THAT THE ELECTRIC CORD IS NOT IN CONTACT WITH THE SHARP EDGES OF THE APPLIANCE. IMPROPER GROUNDING CAN RESULT IN A RISK OF ELECTRIC SHOCK.
- Page 10 INSTALLATION Measure the distance between the cooking surface and the bottom of the range hood. A distance of 24” to 30” is recommended*. Due to different ceiling height configurations, the recommended height may not be applicable Step 1: You have two options for installing this range hood (see INSTALLATION DIAGRAMS on page 7): A.
-
Page 11: Operating The Hood
RANGE HOOD OPERATIONS Control Panel Layout and Buttons Configurations: Lamps/Light • Press the Light button once to turn on the lights, and once again to turn of the lights. • The lamps can be turned off manually, or automatically with the Delay Auto Shut Off Funtion. - Page 12 CIRCUIT DIAGRAM SPECIFICATIONS Specifications Body Design Seamless Stainless Steel, Satin Finish 220-240 V/50Hz Power Rating General Input Power 487W Motor Input Power 480W(240W+240W) Ampere Levels Of Speed Control 4 Leves 1000CFM for each motor Airflow(Max) 1.4Sone(45dB) / 3.5Sone(58dB) / 7.0Sone(68dB) / 8.0Sone(70dB) Noise Level (dB / sone) Number Of Motors 2 Motors...
- Page 13 RANGE HOOD ASSEMBLY Description Quantity Hood Body Light Control Panel Oil Cup Blower Assembly (Motor, Fan Blade, Protective Grill and Squirrel Cage) Electrical Assembly Baffle Filter Power Cord Ducting Transition BLOWER ASSEMBLY Description Description Screw Motor Right Squirrel Cage Air Flow Grill Right Locknut Left Locknut Left Squirrel Cage...
-
Page 14: Maintenance
MAINTENANCE SAFETY WARNING: NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN For optimal operation, clean range hood, surfaces and filters regularly. Regular care will help preserve the appearance of the range hood. CLEANING THE EXTERIOR SURFACES Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent or steel wool pads, which will scratch and damage the stainless-steel surface. -
Page 15: Warranty
SERVICE AND WARRANTY LIMITED WARRANTY One Year Parts Warranty: For one year from the date of original purchase, your local reseller will provide free of charge, non-consumable replacement parts or components that failed due to manufacturing defects. Subject to the conditions and limitations set forth below, your local reseller will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials.
