PCB Piezotronics IMI SENSORS TO604B91 Installation And Operating Manual page 29

PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
B
 
1.37 [ 34.8]
1.00 [25.4]
A
1 FOR METRIC RING TRIAXIAL ACCELEROMETER (MODEL TOM604B9x) USE MOUNTING BOLT MODEL
M081A68, M6 X 1.00-6g X .92[23.4] LONG.
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN INCHES
DECIMALS XX ±.03
XXX ±.010
ANGLES  2 DEGREES
CABLE TOLERANCES IN ENGLISH
1"≤ LENGTH < 1' = +1"/ - 0
1'≤ LENGTH < 5' = +2"/ - 0
5'≤ LENGTH < 100' = +6"/ - 0
100'≤ LENGTH = +1'/ - 0
FILLETS AND RADII
.003 - .005
2
2.01 [51.1]
MOUNTING BOLT
MODEL 081A68
1/4-28 UNF - 2A
.92 [23.4] LONG
(SUPPLIED)
DIMENSIONS IN MILLIMETERS
[ IN BRACKETS ]
DECIMALS X ± 0.8
XX ± 0.25
TITLE
ANGLES  2 DEGREES
CABLE TOLERANCES IN METRIC
2.54cm ≤ LENGTH < 30.5cm = +2.54cm/ - 0
30.5cm ≤ LENGTH < 1.5m = +5.1cm/ - 0
1.5m ≤ LENGTH < 30.5m = +15.2cm/ - 0
30.5m ≤ LENGTH = +30.5cm/ - 0
FILLETS AND RADII
0.07 - 0.13
2
REV
NR
ELECTRICAL CONNECTOR
5-PIN, M12
1
DRAWN CHECKED
JJF 4/13/23 JJF 4/13/23

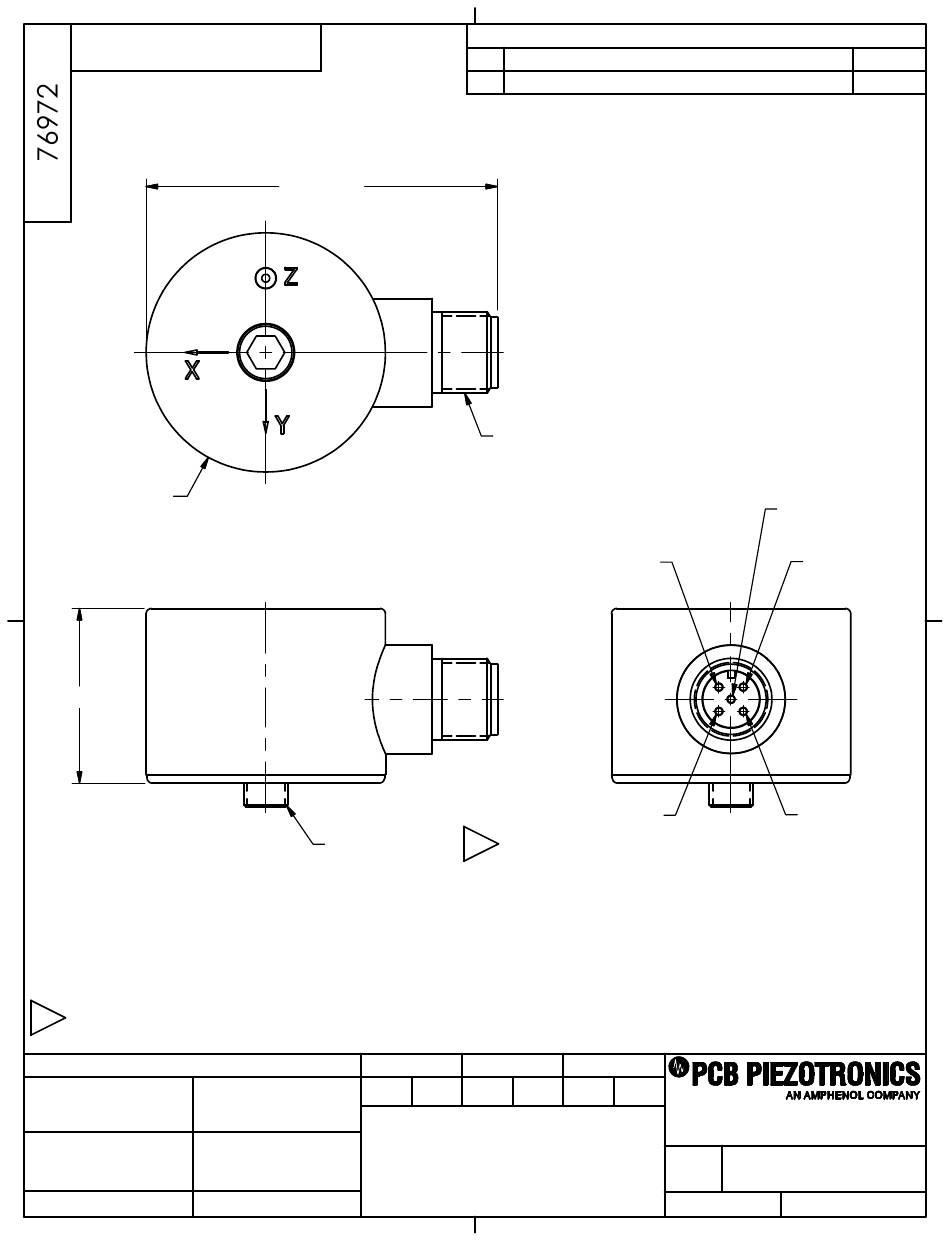

OUTLINE DRAWING
RING TRIAXIAL ACCELEROMETER
WITH TEMPERATURE OUTPUT
1
REVISIONS
DESCRIPTION
RELEASED TO DRAFTING
"Y" AXIS
SIGNAL
"Z" AXIS
SIGNAL
ENGINEER
GCD 4/13/23
3425 WALDEN AVE. DEPEW, NY 14043
(716) 684-0001 E-MAIL: sales@pcb.com
DWG. NO.
CODE
IDENT. NO.
52681
SCALE: 1.5X
1
DIN
53691
B
TEMPERATURE
OUTPUT
"X" AXIS
SIGNAL
GROUND
A
76972
SHEET 1 OF 1
