NCT M&H IRP40.02 Operating Instructions Manual

Infrared touch probe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

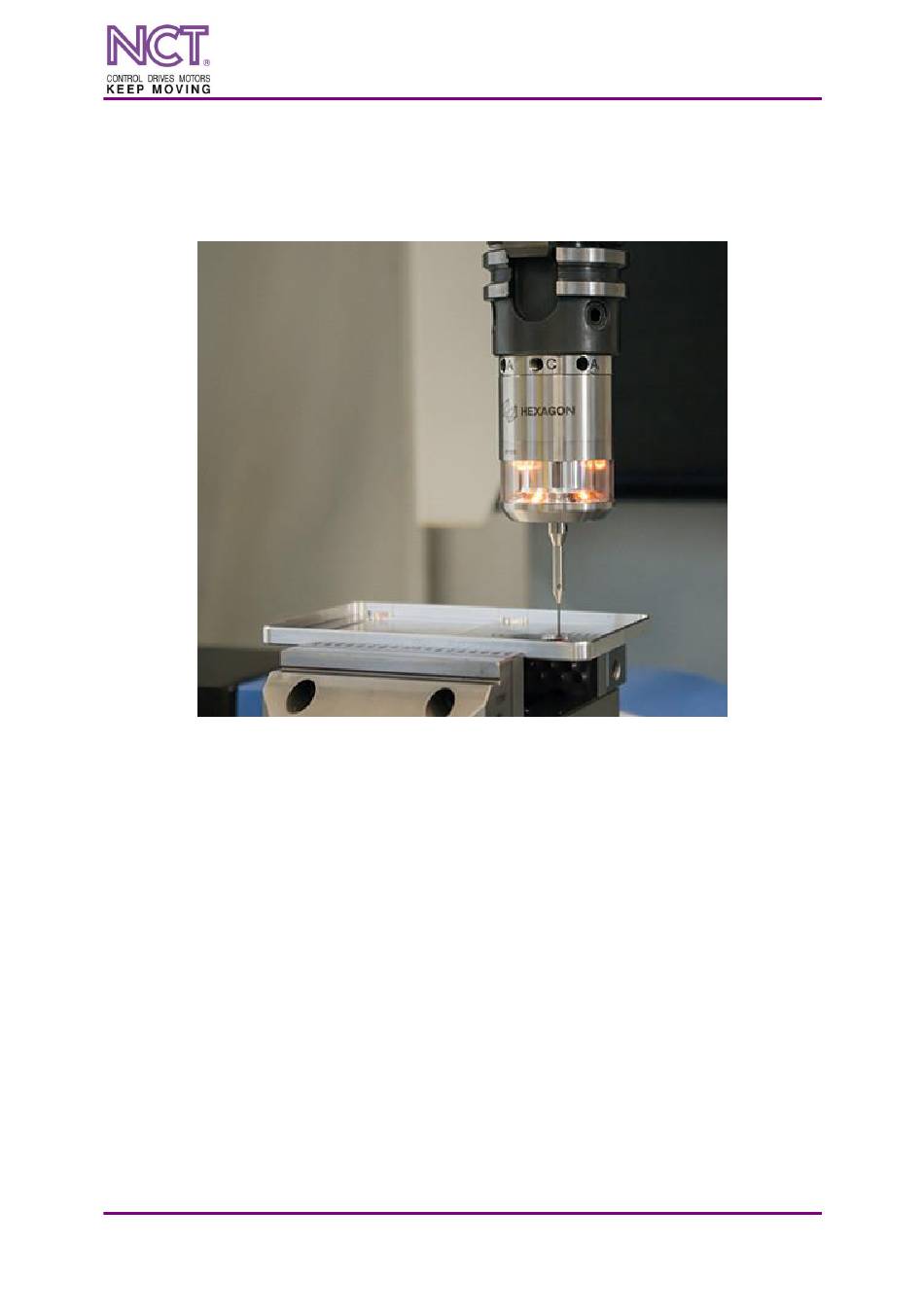

M&H IRP40.02
INFRARED TOUCH PROBE
OPERATING INSTRUCTIONS
M&H IRP40.02
INFRARED TOUCH PROBE
OPERATING INSTRUCTIONS
NCT Ipari Elektronikai Zrt.
1 / 25
23 May 2023
H-1148 Budapest, Fogarasi út 7.
Phone: +36 1 467 6300
www.nct.hu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M&H IRP40.02 and is the answer not in the manual?

Questions and answers

Related Manuals for NCT M&H IRP40.02

Summary of Contents for NCT M&H IRP40.02

  • Page 1 M&H IRP40.02 INFRARED TOUCH PROBE OPERATING INSTRUCTIONS M&H IRP40.02 INFRARED TOUCH PROBE OPERATING INSTRUCTIONS NCT Ipari Elektronikai Zrt. 1 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300 www.nct.hu...

  • Page 2: Table Of Contents

    Aligning Stylus to Spindle Centre ................22 Aligning Probe in Shank with 90° Adapter ............... 23 Optical Status Display ....................23 Maintenance and Cleaning of Infrared Touch Probe IRP40.02 ........ 24 NCT Ipari Elektronikai Zrt. 2 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7.

  • Page 3: Description

    INFORMATION The information given in this manual can be changed by the manufacturer at any time. The user is therefore responsible for regularly enquiring about updated information. NCT Ipari Elektronikai Zrt. 3 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7.

  • Page 4: Declaration Of Conformity

    The measurement signals from the touch probe are transmitted to the receiver via infrared transmission. System Components The components of the system are illustrated in figure below. Figure 1 System components NCT Ipari Elektronikai Zrt. 4 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300...

  • Page 5: Technical Data

    Trigger Force with 50 mm Stylus XY=1 N; Z=8 N Max. 1 µm (2 Sigma) with 50 mm stylus Unidirectional Repeatability –1 and 254 mm·min probing feedrate NCT Ipari Elektronikai Zrt. 5 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300 www.nct.hu...

  • Page 6: Dimensions

    M&H IRP40.02 INFRARED TOUCH PROBE OPERATING INSTRUCTIONS Dimensions Dimensions of the probe are shown in Figure 2. Figure 2 Dimensions NCT Ipari Elektronikai Zrt. 6 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300 www.nct.hu...

  • Page 7: Transmission-/Reception Angles

    INFORMATION The transmission/reception ranges shown below can be reduced by infrared components of the ambient light. Figure 3 Transmission angles of IRP40.02 NCT Ipari Elektronikai Zrt. 7 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300...

  • Page 8: Reception Angles

    Example (see red mark): Transmission range of receiver = 5 m, angle to receiver = 30°; reception power of probe at 30°= approx. 95% → reception range of probe = approx. 4,75 m. NCT Ipari Elektronikai Zrt. 8 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7.

  • Page 9: Delivery Contents, Accessories And Spares

    4x Battery (3,6 V / ½AA) (4316) Tool box (40.02-TB) 1.7.2 Styli M2 styli with shaft Ø3, tungsten carbide NCT Ipari Elektronikai Zrt. 9 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300 www.nct.hu...
  • Page 10 M&H IRP40.02 INFRARED TOUCH PROBE OPERATING INSTRUCTIONS M3 styli with shaft Ø4, tungsten carbide NCT Ipari Elektronikai Zrt. 10 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300 www.nct.hu...
  • Page 11 M&H IRP40.02 INFRARED TOUCH PROBE OPERATING INSTRUCTIONS M4 styli with shaft Ø7, ceramic M4-Styli with shaft Ø7, stainless steel NCT Ipari Elektronikai Zrt. 11 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300 www.nct.hu...

  • Page 12: Shanks

    Shanks Figure 5 shows the shanks to be used with infrared probe IRP40.02: Figure 5 Overview of the shanks (stylus not in the delivery contents) NCT Ipari Elektronikai Zrt. 12 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7.
  • Page 13 40.02-HSK100A DIN69893-HSK-A100 121.5 mm 40.02-HSK100A-121,5 Kennametal KM63 121.5 mm 40.02-KM63 Kennametal KM80 121.5 mm 40.02-KM80 Other Shanks Upon request NCT Ipari Elektronikai Zrt. 13 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300 www.nct.hu...
  • Page 14 111.5 mm 40.02-BT50 CAT40 96.5 mm 40.02-AN40 CAT40-70 120 mm 40.02-AN40-120 CAT50 96.5 mm 40.02-AN50 Other Shanks Upon request NCT Ipari Elektronikai Zrt. 14 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300 www.nct.hu...
  • Page 15 92 mm 40.02-C8 Coromant Capto C8 121.5 mm 40.02-C8-121,5 Coromant Capto C8-90° 102.5 mm 40.02-C8-90 Other Shanks Upon request NCT Ipari Elektronikai Zrt. 15 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300 www.nct.hu...
  • Page 16 65 mm 40.02-D8-L25 D20-D32-L100-B 62 mm 40.02-D32-L100 NIKKEN-NC5-46 115.5 mm 40.02-NC5-46 NIKKEN-NC5-63 115.5 mm 40.02-NC5-63 D20-Erowa-ITS 91 mm 40.02-ITS NCT Ipari Elektronikai Zrt. 16 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300 www.nct.hu...

  • Page 17: Accessories, General

    Clamping screw AF2,5 mm 1352 Adjustment screw DIN913 M4x8 (AF2 mm) 5773 Service cover 6161 O-Ring 23x1 Viton for service cover NCT Ipari Elektronikai Zrt. 17 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300 www.nct.hu...

  • Page 18: Operation

    2. Carefully screw the new stylus into the touch probe (Figure 6). 3. Align the stylus to spindle centre (refer to chapter 2.5). 4. Calibrate the probe. NCT Ipari Elektronikai Zrt. 18 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7.

  • Page 19: Mounting/Dismounting The Shank

     Insert both clamping screws C and tighten lightly.  Insert adjustment screws A and tighten lightly. 3. Align the stylus to spindle centre (refer to chapter 2.5). 4. Calibrate the probe. NCT Ipari Elektronikai Zrt. 19 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7.

  • Page 20: Mounting Shanks 28

     Insert the clamping screws and tighten to the torque specified in Figure 8. 3. Align the stylus to spindle center (refer to chapter 2.5). 4. Calibrate the probe. NCT Ipari Elektronikai Zrt. 20 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7.

  • Page 21: Replacing Battery

    4. Turn the battery cover lock clockwise to lock the battery compartment.  After inserting or replacing the batteries, the touch probe performs an initialization for about 5 s. During this time the LEDs light up blue. NCT Ipari Elektronikai Zrt. 21 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7.

  • Page 22: Aligning Stylus To Spindle Centre

    6. Tighten the adjustment screws A (4x) to the torque specified in Figure 10 against each other. 7. Check the alignment. 8. Calibrate the probe. NCT Ipari Elektronikai Zrt. 22 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7.

  • Page 23: Aligning Probe In Shank With 90° Adapter

    LED permanently red Wrong type of battery. LED blinking blue* Collision of the touch probe in Z probing direction (Z-Crash) NCT Ipari Elektronikai Zrt. 23 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300...

  • Page 24: Maintenance And Cleaning Of Infrared Touch Probe Irp40.02

    3. Clean probe and parts under running water. 4. Reassemble all parts. 5. Align the stylus to spindle centre. 6. Calibrate the probe. NCT Ipari Elektronikai Zrt. 24 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300...
  • Page 25 M&H IRP40.02 INFRARED TOUCH PROBE OPERATING INSTRUCTIONS NCT Ipari Elektronikai Zrt. 25 / 25 23 May 2023 H-1148 Budapest, Fogarasi út 7. Phone: +36 1 467 6300 www.nct.hu...
