HMI D1
Process control unit with graphical interface
Datasheet
Description

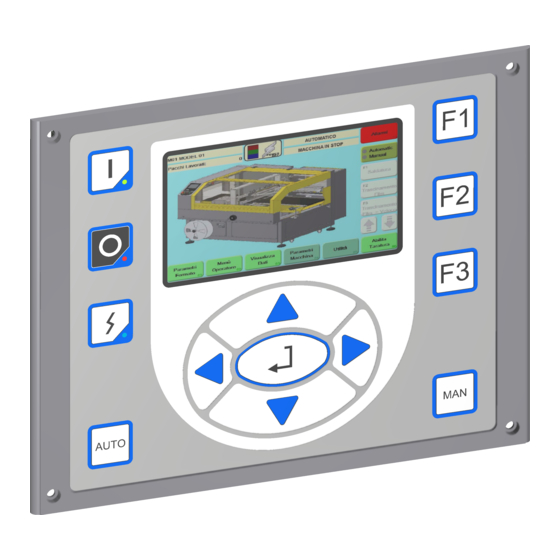

Process control unit with graphical display and keypad. Main characteristics:
Equipped with 32 bit Renesas RX62N processor with 96kbytes RAM and 512kbits Flash
•
inside
64 kbit non-volatile RAM, 16 Mbit flash ROM and 128 Mbit SDRAM
•
1 USB host port
•
2 FLXIO / RS 485 ports
•
4.3" LCD display with 24 bits color depth (16.7M colors)
•
13 buttons keypad with 3 LED lamps
•
customizable features on demand (keyboard layout, memories sizes, ethernet, RTC, SD
•
card reader, and more)
4.3" display
DK400150 rev. 0 ─ 18/04/2013
bottom side connectors
1/8
keyboard
Advertisement
Table of Contents
Related Manuals for Smitec FLXMOD HMI D1
Summary of Contents for Smitec FLXMOD HMI D1
- Page 1 HMI D1 Process control unit with graphical interface Datasheet Description Process control unit with graphical display and keypad. Main characteristics: Equipped with 32 bit Renesas RX62N processor with 96kbytes RAM and 512kbits Flash • inside 64 kbit non-volatile RAM, 16 Mbit flash ROM and 128 Mbit SDRAM •...
- Page 2 Ordering information Products SMITEC part number HMI D1 module KZ010367 Accessories SMITEC part number RTC CR2032 replacement battery TB010554 Documentation SMITEC part number Datasheet for HMI D1 (english) DK400150 FLXMOD system integration manual (english) DK400076 DK400150 rev. 0 ─ 18/04/2013...
- Page 3 Technical data General data Housing dimensions (width x height x depth) 210 mm x 170 mm x 34.3 mm Weight 520 g (without connectors) Permissible operating temperature +5° to +55°C Permissible storage and transport temperature -25° to +85°C Permissible humidity 10% to 95%, not condensing Permissible air pressure (operation) 80 to 106 kPa (up to 2000 m above sea level)
- Page 4 Communication ports 2 on RJ45 connectors, useable also as EIA RS-485 FLXIO ports ports FLXIO ports speed Up to 2.5 Mbps USB host ports 1 on standard type A female connector Other characteristics USB host output current 250 mA max. Acoustic peripherals 1 buzzer DK400150 rev.
- Page 5 Mechanical drawing The image below depicts the mechanical dimensions of the device (base version shown): DK400150 rev. 0 ─ 18/04/2013...
- Page 6 Connections The module has several connectors for power supply and peripherals, all located on the bottom side of the module (see illustration below). Warning: HMI D1 module is an electronic high technology device with numerous connectors; for these reasons it results an ESD sensitive device. Observe ESD mitigation techniques or damage might occur.
- Page 7 SD card connector This device (depending on versions), is provided with a peripheral for interfacing SD cards. These could be used for storing large data or for updating software. A suitable connector is provided on the bottom side of the module, able to accommodate standard SD cards.
- Page 8 LED BEHAVIOUR SYSTEM STATUS Blinking slowly System initialization Searching modules on the bus FW updating Off (fixed) No slaves found on the bus On (fixed) Bus operating correctly Blinking fast Bus error DK400150 rev. 0 ─ 18/04/2013...
