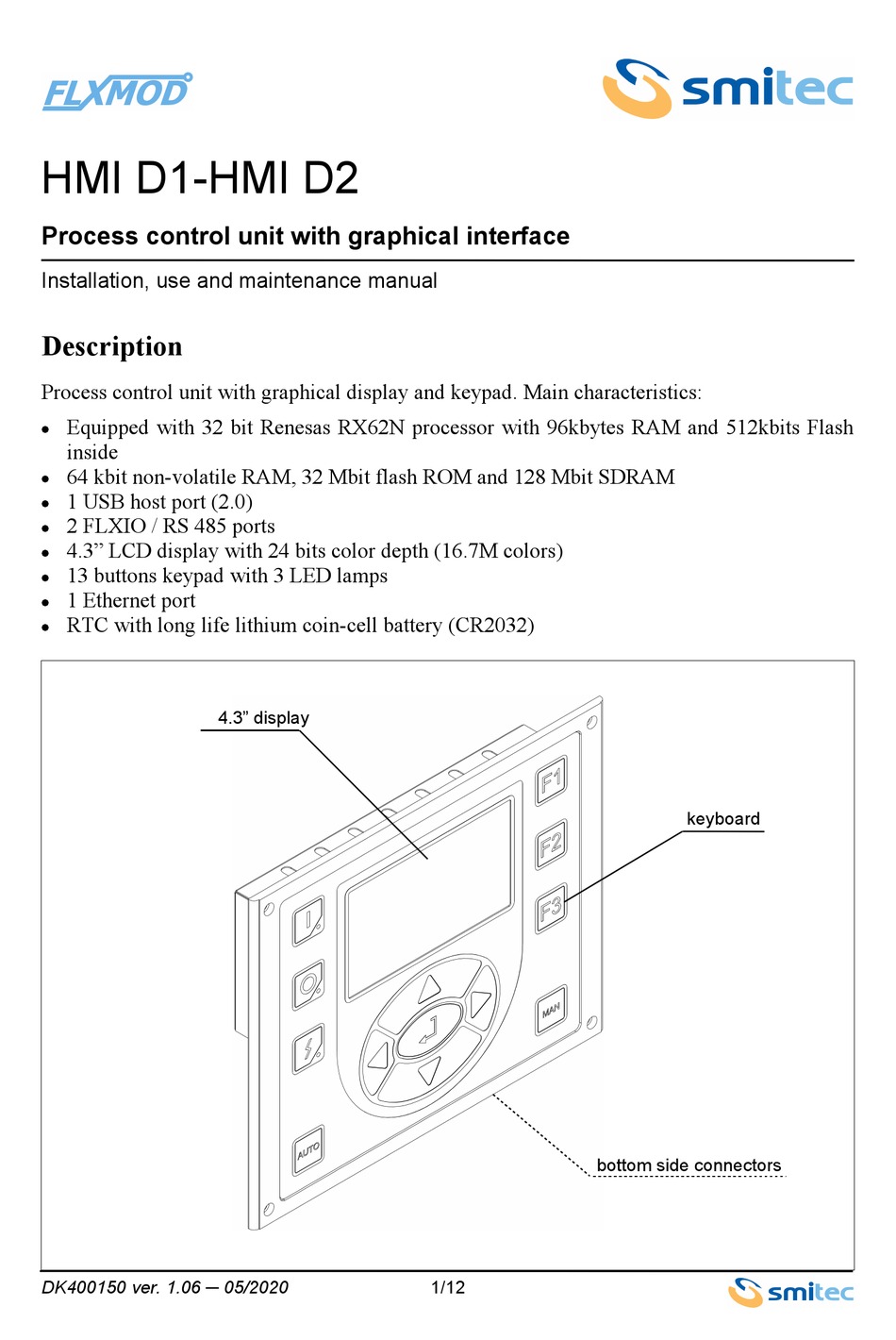

HMI D1-HMI D2
Process control unit with graphical interface
Installation, use and maintenance manual
Description
Process control unit with graphical display and keypad. Main characteristics:
Equipped with 32 bit Renesas RX62N processor with 96kbytes RAM and 512kbits Flash
inside
64 kbit non-volatile RAM, 32 Mbit flash ROM and 128 Mbit SDRAM
1 USB host port (2.0)
2 FLXIO / RS 485 ports
4.3" LCD display with 24 bits color depth (16.7M colors)
13 buttons keypad with 3 LED lamps
1 Ethernet port
RTC with long life lithium coin-cell battery (CR2032)
DK400150 ver. 1.06 ─ 05/2020
4.3" display
bottom side connectors
1/12
keyboard

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLXMOD HMI D1 and is the answer not in the manual?

Questions and answers

Related Manuals for Smitec FLXMOD HMI D1

Summary of Contents for Smitec FLXMOD HMI D1

  • Page 1 HMI D1-HMI D2 Process control unit with graphical interface Installation, use and maintenance manual Description Process control unit with graphical display and keypad. Main characteristics: Equipped with 32 bit Renesas RX62N processor with 96kbytes RAM and 512kbits Flash  inside 64 kbit non-volatile RAM, 32 Mbit flash ROM and 128 Mbit SDRAM ...

  • Page 2: Ordering Information

    Ordering information Products SMITEC part number HMI D1 module in base version (with USB host mode only, with two FLXIO master channels, KZ010367 without Ethernet, without SD socket, without RTC, without application software) HMI D1 module in base version (with USB host...

  • Page 3: Technical Data

    Technical data General data Housing dimensions (width x height x depth) 210 mm x 170 mm x 37.6 mm Weight 420 g (without connectors) Connection method for power connector Spring cage terminals Conductor cross-section for power connector 0.14 to 1.5 mm (26 ÷...

  • Page 4: Display Characteristics

    Display characteristics Display type TFT LCD Display size 4.3” (diagonal) Color depth 24 bits (16.7M colors) Communication ports 2 on RJ45 connectors, useable also as EIA RS-485 FLXIO ports ports FLXIO ports speed Up to 2.5 Mbps USB 2.0 host ports 1 on standard type A female connector Other characteristics USB host output current...

  • Page 5: Mechanical Drawing

    Mechanical drawing The image below depicts the mechanical dimensions of the device: DK400150 ver. 1.06 ─ 05/2020 5/12...
  • Page 6 Recommended panel cut-out DK400150 ver. 1.06 ─ 05/2020 6/12...
  • Page 7 Mounting The modules HMI D1/2 need to be fixed on a stable and rigid panel provided with 4xM3 metal threaded hole, min. 1.5mm deep. Use 4xM3x10mm Fe/Zn (not countersunk head type) screws, min. class 8.8, tightened at 1Nm. IP65 protection and UL Type 1 To ensure rated protection, apply the MA804900 self adhesive gasket on back of the frame.

  • Page 8: Power Connector

    Connections The module has several connectors for power supply and peripherals (depending on version), all located on the bottom side of the module (see illustration below). Caution: HMI D1/2 module is an electronic high technology device with numerous connectors; for these reasons it results an ESD sensitive device. Observe ESD mitigation techniques or damage might occur.

  • Page 9: Sd Card Connector

    Attention: Utilisez un câble de section adaptée au courant impliqué. Un fil plus petit que nécessaire pourrait provoquer un incendie et des chutes de tension indésirables. Attention: pour garantir la conformité avec la directive EMC 2014/30/UE, la longueur des câbles ne doit pas dépasser 30 m. SD card connector This device (depending on version), is provided with a peripheral for interfacing SD cards.
  • Page 10 FLXIO / RS485 connectors The device can act as a dual-channel FLXIO master, and two RJ45 connectors are provided for the purpose on the bottom side of the module. The illustration aside shows the pinout of each connector; use standard CAT 5E Ethernet cable to wire 1 DATA+ the buses.

  • Page 11: Maintenance

    Recommendations • Do not position the equipment so that it is difficult to operate the disconnecting device • Do not use this equipment in a manner not specified in this documentation otherwise the protection means provided in the device may be impaired •...
  • Page 12 Application software loading/update When the device delivered, it has no application software loaded or the software loaded is for testing purposes only and an update is needed. The software loading or update is possible by user through a USB flash disk memory called also USB memory stick and so.
