ecoey GS558D-H04 User Manual

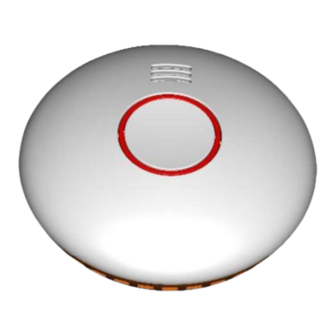

Smoke Alarm User Manual
Model number: GS558D-H04
Thank you for purchasing our smoke alarm with wireless and
heat detection. Please take a few minutes to read the
manual thoroughly and familiarize yourself and your family
with its operation. And save it for future reference.
EN14604:2005/AC:2008

Product Specifications:

Power : DC2*1.5V Alkaline AA battery
Operation current : <6uA (standby), <1200mA (alarm)
Alarm volume : >85dB(A) at 3 meters.
Smoke sensitivity : 0.108-0.141dB/m
Heat sensitivity: 54-70
Local smoke alarm sound pattern:
BI 0.5s - pause 0.5s BI 0.5s pause 0.5s BI 0.5s
pause 1.5s, with the red LED flash, repeat this alarm
pattern.
Local heat alarm sound pattern:
BI 0.2s - pause 0.1s, with the red LED flash, repeat this
alarm pattern.

Description:

The unit is a photoelectric 3V DC smoke alarm. It is operated
by 3v AA Alkaline battery. With the photoelectric technology,
it is more sensitive to detecting slow smolder fires which
general thick, black smoke, little heat and may smolder for
hours before bursting into flames. The smoke alarm do not
contain the radioactive material which is harmless to the
environment.
The smoke alarm should be installed in every room (except the
bathroom), and every other area of the home, making sure the
people in the home will be able to hear and respond to the
alarm sound. For minimum protection you should fit an alarm
in the hallway between the living areas and sleeping areas.
Place the unit near to the living areas as possible and ensure
Date: 2018.12.17
Ref ST558D
the alarm is audible when the bedrooms are occupied.
Typical single storey dwelling with recommended:
Install a smoke alarm on the ceiling inside each bedroom and
in the hallway outside each separate sleeping area. If a
bedroom area hallway is more than 30 feet long, install a
smoke alarm at each end. If there is a basement: install a smoke
alarm on the basement ceiling at the bottom of the stairwell.
Typical multi-storey dwelling with recommended protection.
Install a smoke alarm on the ceiling inside each bedroom and
in the hallway outside each separate sleeping area. If a
bedroom area hallway is more than 30 feet long, install a
smoke alarm at each end install a smoke alarm at the top of a
first to- second floor stairwell.

Important Safety Information:

1: The test button accurately tests smoke alarm functions. Do
not use any other test method. Test smoke alarm weekly to
ensure proper operation.
2: Do not remove or disconnect battery. This will take out your
protection. Open windows or fan the air around smoke
alarm for silence it.
3: Observe and follow all local and national electrical and
4: This smoke alarm is designed to be used inside a single
5: Install a smoke alarm in every room and on every level of
6: Smoke alarm may not alert every household member every
- 1 -
Document NO.: RD-(558D-H04)-39-001
building codes for installation.
family only. In multifamily buildings, each individual
living unit should have its own smoke alarms. Do not
install in non-residential buildings. And this smoke alarm
is not a substitute for a complete alarm system.
the home. Smoke may not reach the smoke alarm for many
reasons. For example, if a fire starts in a remote part of the
home, on another level, in a chimney, wall, roof, or on the
other side of a closed door, smoke may not reach the smoke
alarm in time to alert household members. A smoke alarm
will not promptly detect a fire except in the area or room
in which it is installed.
time. The alarm horn is loud in order to alert individuals to
a potential danger. However, there may be some
circumstances where a household member may not hear
the alarm (i.e. outdoor or indoor noise, sound sleepers,
drug or alcohol usage, the hard of hearing, etc.). If you
suspect that this smoke alarm may not alert a household
member, install and maintain specialty smoke alarms.
Version: A
