5.2 Software edit

The core of this module is CC2674P, and users can fully operate according to the CC2674P chip manual

Attention: The chip used in the module is in DC/DC mode internally
The module comes with our own RF switch, please strictly follow the truth table for operation
Truth Table

DIO_6
Low
High
Burning program: The module is an SOC module with a built-in GPIO port, and the program is downloaded using an XDS100

dedicated downloader.

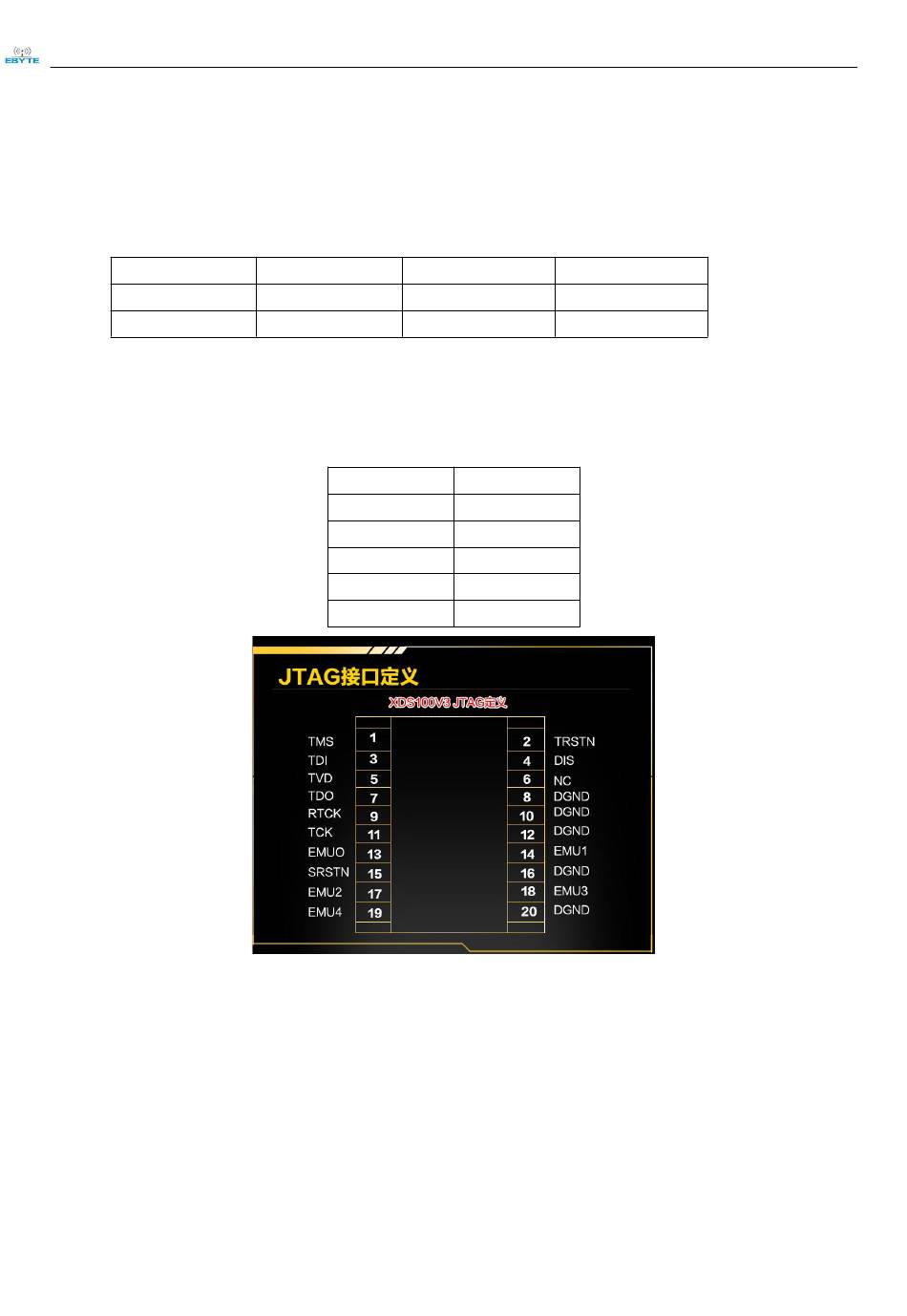

Program Download Interface Definition：


5.3 Environmental construction

5.3.1 Installation preparation
Need to prepare SDK 7.10.01.24,CCS 12.3.0
5.3.2 Installation step
1. Download the SDK from the CC2674P10 chip introduction interface on TI's official website.
hengdu Ebyte Electronic Technology Co.,Ltd
Copyright ©2012–2023，C
DIO_5 Transmit(TX)
High ON
Low OFF
E72 pin
JATG_TMSC
JTAG_TCKC
RESET_N
GND
VCC
Receive(RX)
OFF
ON
XDS100 port
TMS
TCK
SRSTN
DGND
TVD
