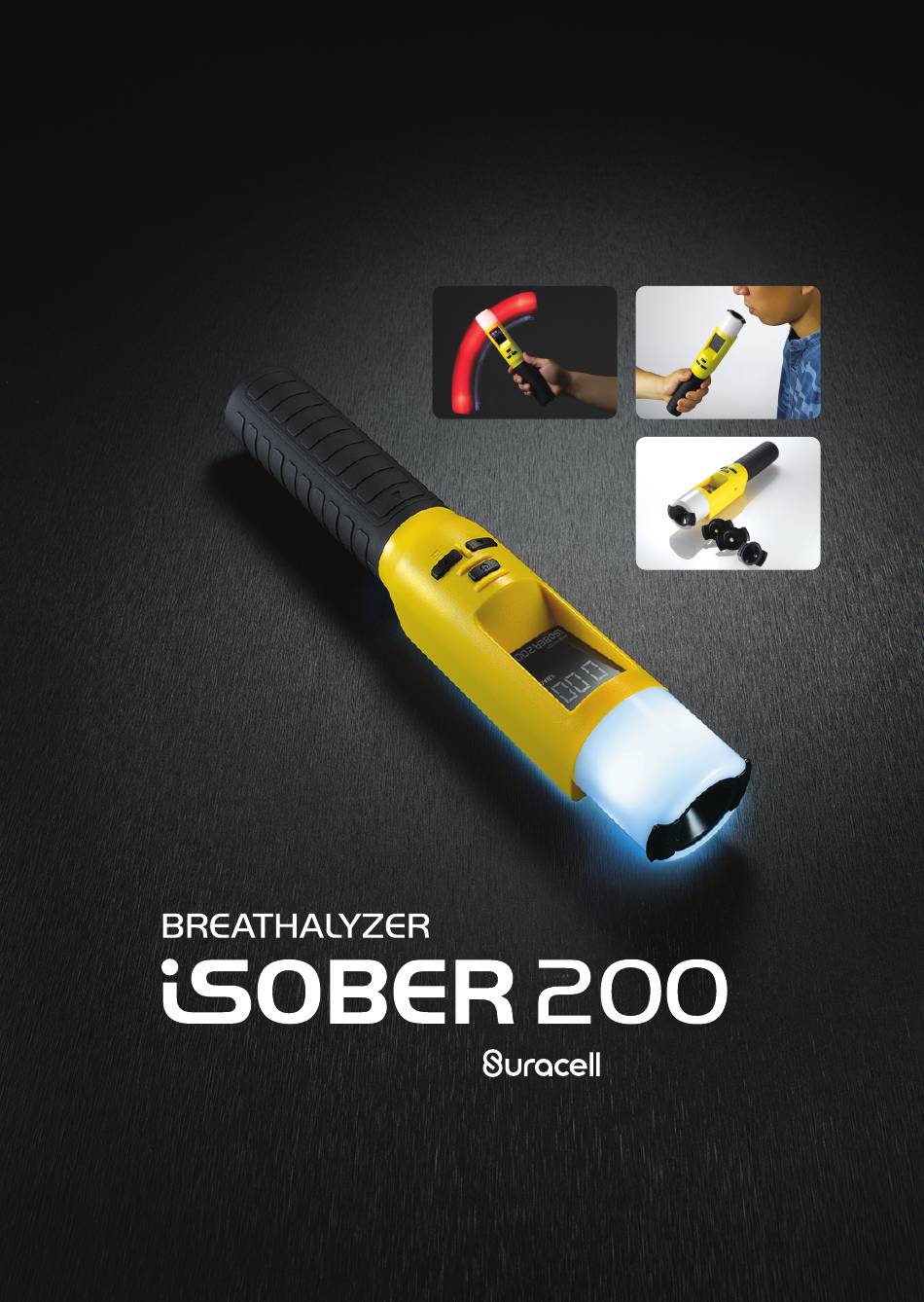

- Page 1 New Type of Premium Breathalyzer Technology User’s Manual...
-
Page 2: Parts Name
Introduction With new Fuel Cell Sensor Technology SURACELL™, breathalyzer iSOBER 200 is designed to high-quality professional use to check a person’s alcohol concentration fastly & accurately. The device has 2 operation modes to handle various measurement environments: passive testing and automatic testing. The passive testing result will be displayed as 3 levels (0 - Lo-Hi) according to the preset limit with using reusable blow cap. -
Page 3: Battery Safety Information
(or www.isoberusa.com) or contact the local service provider Safety information : please read before using iSOBER 200 Always use genuine Sentech USA INC accessories. Use imitation items for the device may ㆍ not give you a proper result, or they may damage the device. -
Page 4: Unit Operation
Unit operation 7-1. 7-2. 7-3. 7-A. 7-B. 7-C. Passive mode Automatic mode 1. Press the power button 2. ~ 3. If you keep press the power button, “L” and the last test result will be displayed 4. Battery level will be indicated: High or Middle or Low 5. -
Page 5: Device Settings
Device Settings Device setting menu can be entered by keep pressing state *If you want back to state in setting menu, keep pressing together 0. Last Result Check *the lastest test result 1. Counting of Test Numbers Check *Alternating displays last 12 hours 000.300 = Tested 300 times After calibration... - Page 6 3. LED Lighting Mode Setting All LED OFF *Refer to LED operation chart Only test result LED ON All LED ON 4. Automatic Device Off time Setting Device off after 30 seconds Device off after 60 seconds Device off after 300 seconds Device off after 600 seconds Device off after 900 seconds...
- Page 7 5. Test result displaying time Setting * Shorter displaying time means faster testing is available ! Test result displaying 1 second Test result displaying 2 seconds Test result displaying 9 seconds 7. Calibration reminder check Remaining DAYS before 300 DAYS left until calibration calibration required date Remaining COUNTS before 600 COUNTS left to calibration...
- Page 8 Displays on iSOBER 200 Go to the previous mode on the setting menu *Short cut key to go to mode: keep pressing together Running out of batteries and need to replace batteries to the new one *Replace all batteries at a time Too low temperature to operate Too high temperatrue to operate the device.
-
Page 9: Specification
Err2 error: Alcohol sensor damaged so contact technical service provider Err3 error: Timer or battery for the timer damaged so contact technical service provider Err5 error: Memory damaged so contact technical service provider Err8 & Err9 error: Calibration error so contact technical service provider Device is ready to OFF Device OFF Press power button once to off the device. -
Page 10: Changing Batteries
LED operation chart: LED mode setting & manual LED operation Changing Batteries 1. Loosen the slotted screw anticlockwise with coin or appropriate tools and remove the Battery cover... - Page 11 (“Warranty Period”). Except as provided in the preceding sentence or applicable law, Sentech USA INC provides this product “as is”. If a defect arises and a valid claim is received by Sentech USA INC within the Warranty Period, at its option, Sentech USA INC will either (1) repair the product, (2)
- Page 12 Sentech USA INC; (c) to consequences caused by service performed by anyone who is not a representative of Sentech USA INC or Sentech USA INC Authorized Service Provider; or (d) to a product or part that has been modified to alter functionality or capability without the written permission of Sentech USA INC.
