FFV-E45
Dual Electronic Flush
Valve with Buttons Only
Installation
Guide
MELBOURNE
SYDNEY
Britex Place Mirra Crt
16 Northumberland Drv
Bundoora VIC 3083
Taren Point NSW 2229
t (03) 9466 9000
t (02) 9531 2100
e vic@britex.com.au
e nsw@britex.com.au
TITLE:
Drawing:
PERTH
BRISBANE
Unit 1/8 Principal Link
19 Manilla St
Malaga WA 6090
East Brisbane QLD 4169
t (08) 9249 5464
t (07) 3363 2400
UNLESS OTHERWISE SPECIFIED:
e wa@britex.com.au
e qld@britex.com.au
DIMENSIONS ARE IN MILLIMETERS
FFV-E45 Installation Guide | QID 3.7 | Rev 2 | 4 Sep 2023
XX-XX
ADELAIDE
SD-XX
The Britex Group
SA State Office
t 1300 764 744
DO NOT SCAL
e sa@britex.com.au
Advertisement
Table of Contents
Related Manuals for Britex FFV-E45
Summary of Contents for Britex FFV-E45
- Page 1 (07) 3363 2400 t 1300 764 744 UNLESS OTHERWISE SPECIFIED: DO NOT SCAL e vic@britex.com.au e nsw@britex.com.au e wa@britex.com.au e qld@britex.com.au e sa@britex.com.au DIMENSIONS ARE IN MILLIMETERS FFV-E45 Installation Guide | QID 3.7 | Rev 2 | 4 Sep 2023...
- Page 2 Safety Precautions 1. The WC Electronic Dual Flush Valve and its components are for indoor use only. 2. Install the FFV-E45 and its’ components only in a dry environment with an ambient temperature 5- 40°C. 3. When performing any work on the WC Electronic Dual Flush Valve or its’ connected components the transformer has to be disconnected from the power supply.
-
Page 3: Installation Instructions

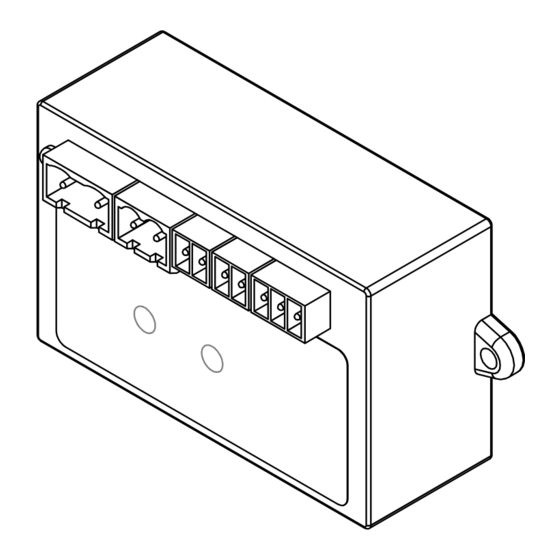

Supplied Supplied with the Britex The Dual Electronic Flush Valve FFV-E45 are the following components 1 x DFM-04 Electronic dual flush module 1 x TR-5A Transformer 240V to 12Vdc 1 x SV-9 Electronic Flush valve 2 x 3m extension cable for actuator buttons... - Page 4 The squeaking should stop after a few flushes. Note: If the flush valve is activated more than 6 time within one minute it will stop flushing for 45 seconds. Australia’s Finest Stainless | britex.com. FFV-E45 Installation Guide | QID 3.7 | Rev 2 | 4 Sep 2023...
-
Page 5: Installation Diagrams
Installation Diagrams In-Ceiling Installation Schematics (fig. 1) Front Section Elevation In-Duct Installation Schematics (fig. 2) Front Section Elevation Australia’s Finest Stainless | britex.com. FFV-E45 Installation Guide | QID 3.7 | Rev 2 | 4 Sep 2023... - Page 6 10 and local regulations) and simultaneous demand requirements. To ensure proper sizing of the pipe work for the valve it is recommended to engage a qualified hydraulic designer. Australia’s Finest Stainless | britex.com. FFV-E45 Installation Guide | QID 3.7 | Rev 2 | 4 Sep 2023...
-
Page 7: Troubleshooting
Reset unit. power after a 30 seconds. Spare Parts ARTICLE NO. DESCRIPTION TR-5A Transformer DFM-04 Dual flush module SV-9 Electronic flush valve complete Australia’s Finest Stainless | britex.com. FFV-E45 Installation Guide | QID 3.7 | Rev 2 | 4 Sep 2023... - Page 8 Leave the lever in the open position. 1. Remove nut from solenoid lid. 2. Remove lid and coil form solenoid. Australia’s Finest Stainless | britex.com. FFV-E45 Installation Guide | QID 3.7 | Rev 2 | 4 Sep 2023...
- Page 9 1. Remove and replace the old diaphragm. Note: When replacing the diaphragm make sure that the lug matches up with the cut out in the housing Australia’s Finest Stainless | britex.com. FFV-E45 Installation Guide | QID 3.7 | Rev 2 | 4 Sep 2023...
- Page 10 2. Activate the system several times to confirm proper functioning and check for leaks. Australia’s Finest Stainless | britex.com. FFV-E45 Installation Guide | QID 3.7 | Rev 2 | 4 Sep 2023...
-
Page 11: Care And Maintenance
BRITEX at no charge, provided that the terms of the manufacturer’s warranty are followed. This warranty is the only warranty given by BRITEX, and we expressly disclaim all other warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose. - Page 12 (03) 9466 9000 t (02) 9531 2100 t (08) 9249 5464 t (07) 3363 2400 t 1300 764 744 e vic@britex.com.au e nsw@britex.com.au e wa@britex.com.au e qld@britex.com.au e sa@britex.com.au FFV-E45 Installation Guide | QID 3.7 | Rev 2 | 4 Sep 2023...
