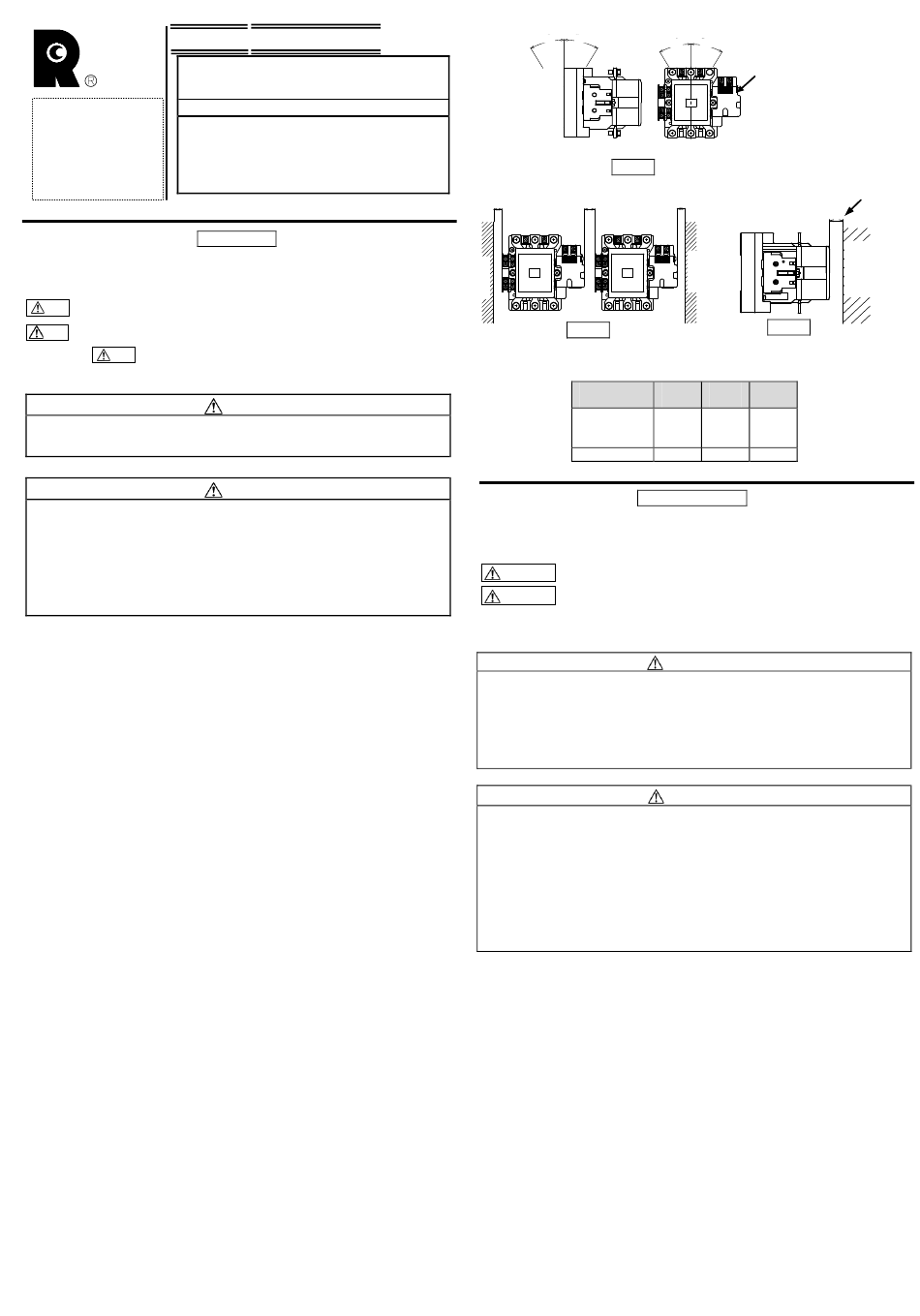

Riyue CK3-105/VS Instruction Manual

使用说明书
机械锁扣形交流接触器
Mechanical latch Magnetic Contactor
Type
请注意此使用说明书必须送
至最终用户和维修责任者手
CK3-105/VS
中保管。
CK3-150/VS
This manual should be given to
the person who actually uses the
CK3-180/VS
products and is responsible for
CK3-400/VS
their maintenance.
安全注意事项
在安装、运行、保养和维修前必须熟读使用说明书，以保证正确使用。
使用说明书中对安全注意事项区分为"警告" 、 "注意"两个等级。
警告
：不解除的话, 有可能造成死亡或重伤的危险状态。
: 不解除的话, 有可能造成中等程度的残疾, 轻伤以及发生物质损伤事故。
注意
并且，即使在 注意 中记载的事项根据情况也有可能导致发生重大事故，所以记载
内容都很重要，请必须遵守。
 请不要触摸和靠近通电中的产品，因有触电、灼伤的危险。
 维修、检验请在切断电源后进行，因有触电的危险。
 因为有引发灼伤、 火灾的可能， 所以请确保说明书上规定的安装空间
 因为有引发火灾的可能，所以请在接线时按额定电压、通电电流选用
符合规范尺寸的电线，紧固螺钉按照使用说明书规定的力矩紧固。
 请不要在切断电源后立即触摸产品，因为余热可能会导致灼伤。
 锁扣单元（Fig.1）与交流接触器是在工厂内进行调整后出厂的，所以
请不要进行拆卸或者更换。
 产品废弃时需按产业废弃物处理。
1. 解开包装
(1) 请确认产品型号、控制线圈电压及适用容量与要求的规格是否一致。
(2) 请检查是否有由于运输等原因而引起的零部件松动或破损现象。
2. 保管
请避免高温多湿、有腐蚀性气体及日光直射的场所，以原包装的状态进行保管。
3. 安装
(1) 请安装于干燥、洁净、牢固的场所。
(2) 请垂直安装。允许倾斜角度在 30°以内。 （Fig.1）
4. 安装空间（Fig.2, Fig.3）
(1) 安装间隙需在 Table 1 尺寸以上。
(2) 紧密安装时(连续通电和高频通断的产品视同紧密安装)，根据使用条件有可
能因温度上升而造成线圈寿命降低。在此种条件下使用时，推荐使用时产品
间的间距大于 20mm。
(3) C 尺寸是在 IEC 标准及 GB 标准的接通、分断容量试验条件下的值。
INSTRUCTION MANUAL
INA-F08784823a-CE
警告
注意
30° 30°
B A
接地金属
Ground
plate
Fig.2
Table 1
形式
Types
105/VS
150/VS
180/VS
400/VS
。
To ensure proper use of the product, be sure to read this manual and the other
attached documents carefully before starting installation, operation, maintenance
and inspection. Within this instruction manual, safety precautions are ranked, in
order of importance, as either "Warning" or "Caution".
Indicates a potentially hazardous situation, which, if not avoided,
WARNING
could result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may
CAUTION
result in minor or moderate injury and/or damage to the equipment.
Under certain conditions, improper operation may result in serious injury and/or damage
even if it is labeled only as "Caution". Every item indicated by either "Warning" or
"Caution" should be considered significant. Be sure to give particular care to those items.
 Do not touch the product or approach it when power connected. Electric
shock or burns may result.
 Turn off the power before starting maintenance or inspection. Failure to do
so may result in electric shock.
 Do not perform manual operation when power connected. Electric shock
may result.
 Install the product in space more than being provided by this manual.
Failure to do so may result in fire or burns.
 For wiring, select wire size suitable for the applied voltage and current.
Burns may result. Tighten wires with the tightening torque specified in the
instruction manual. Failure to do so may result in fire.
 Do not touch the product immediately after the power is turned off. As it
may still be hot, burns may result.
 Do not detach the mechanical latch unit from the contactor. (Fig. 1)
 Treat the product as industrial waste when discarding.
Unpacking
1.
(1) Check that the type, coil voltage and contact arrangement match the
requested specifications.
(2) Make sure that no parts have been lost or damaged.
2. Storage
Store the unit in the packing box. Do not store the packing box in a location
subject to high temperature, high humidity, corrosive gas, or direct sunlight.
3. Mounting
(1) Mount in a dry, clean and stable location.
(2) Mounting on a vertical surface. The product must not incline more than 30゜.
(Fig.1)
4. Mounting space（Fig.2, Fig.3）
(1) Mount the products at a distance of at least that shown in the Table 1.
(2) When units must be installed very closely, the temperature may rise in
some conditions (i.e. the power is continuously supplied for a long time or
units that frequently do switching are installed very closely), and it may
shorten the life of the coil. Thus, when installing units very closely, it is
recommended to install the units 20 mm or more apart.
Dimension C is based on breaking
(3)
30° 30°
锁扣单元
Fig.1
B
接地金属
Ground
plate
Fig.3
A B C
[mm] [mm] [mm]
5 10 2
5 22 2
Safety Precautions
WARNING
CAUTION
test in close circuit of IEC and GB standard.
飞弧距离
Arc space
C
接地金属
或者绝缘物
Ground plate
or Insulator
