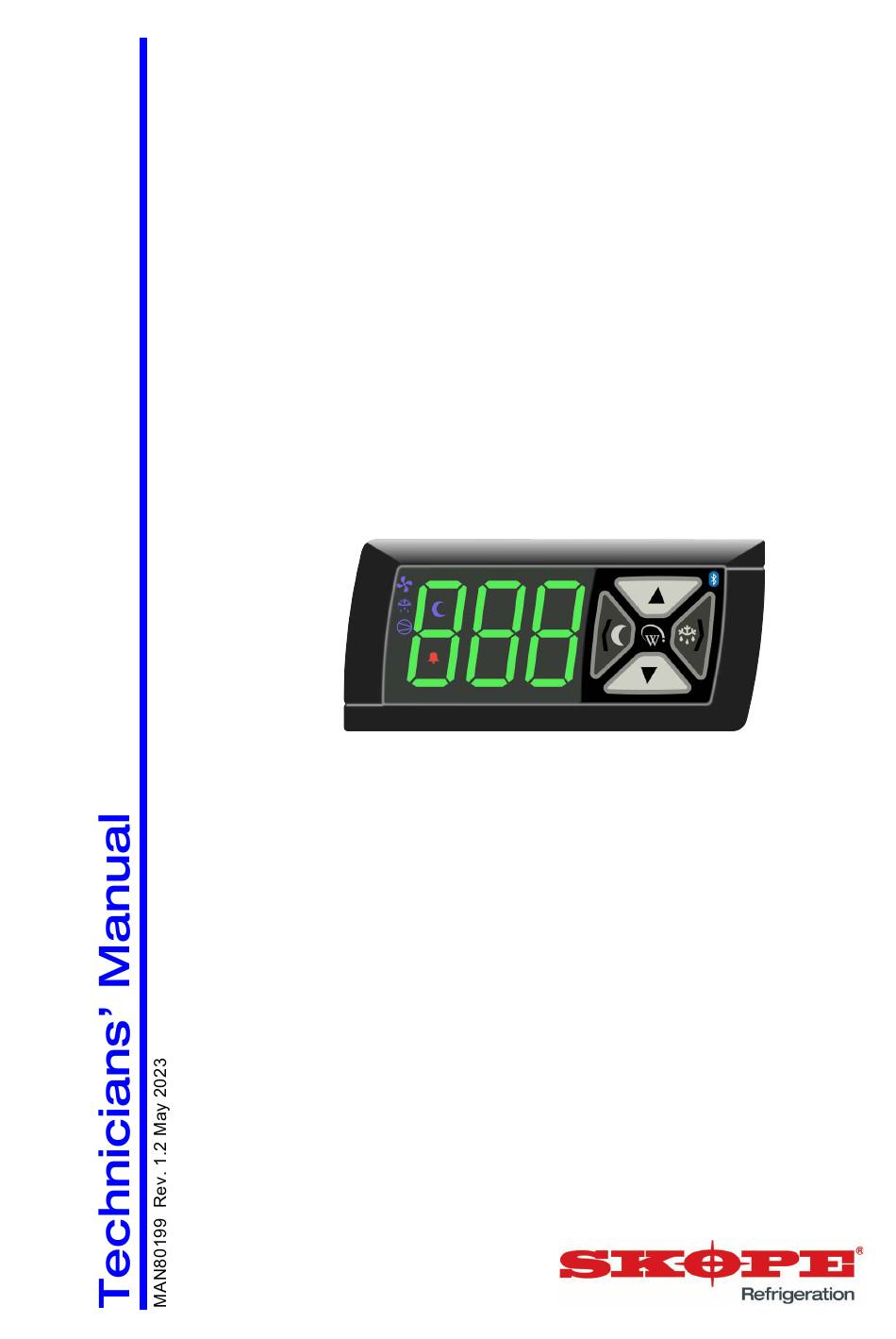

  • Page 1 SCS Connect Electronic Controller...
  • Page 2 E-mail: skope@skope.com Website: www.skope.com Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after its state, condition, get-up or packaging has been altered in any manner •...

  • Page 3: Table Of Contents

    SCS Setup ........12 Deactivate SKOPE-connect ......14 Reset Cabinet IDs .

  • Page 4: Controller

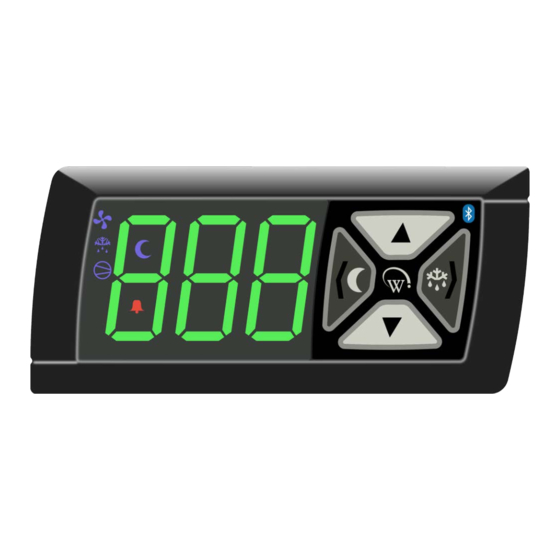

    1 Controller Overview The cabinet is fitted with an SCS Connect electronic controller, which is pre-programmed. SKOPE does not recommend changing the settings unless it is absolutely necessary. To ensure efficient operation, the controller automatically forces a defrost cycle when required.

  • Page 5: Service Mode

    The service mode can be run using the controller faceplate, but SKOPE strongly recommends using the SCS Connect Field app. You will need a 9-digit PIN to enter the service mode via the controller. If you don’t have one, contact your User Manager (Corporate) or SKOPE Customer Services (General Market) to request a PIN.

  • Page 6: Application Procedures

    2. Open the required app on your smart device. Field App The SCS Connect Field app gives authorised service technicians wireless access to the controller from mobile devices with Bluetooth capability. The app provides data logging, alarm notification, and control over inputs (e.g. probes and switches) and outputs (e.g. relays).

  • Page 7: App Menu

    SKOPE SCS Connect Electronic Controller Note: Only inputs connected to, or components directly controlled by, the SCS Connect controller will be displayed upon the Home Screen. For example, if the condenser fan is directly driven from the compressor then the condenser fan icon will not be displayed on the home screen.

  • Page 8: Output Control

    SKOPE SCS Connect Electronic Controller Output Control Displays real time data when connected to the cabinet by allowing real time interaction with both inputs (probes, switches) and outputs (relays, pulse width modulation (PWM)). Note: Any selected output changes override any priorities in the controller, but are limited to 2 minutes before resetting to their previous status.

  • Page 9: Load Parameters

    Do NOT press the Default button. The Default button sets the parameter back to AoFrio defaults, not SKOPE defaults. Load You can download the SKOPE factory parameters files stored in the cloud using the Field Parameters App when you are: •...
  • Page 10 SKOPE SCS Connect Electronic Controller Procedure 3: To download a parameters file Before you start Ensure you have a data connection. 1. Select Load Parameter File. The Select Configuration File page shows the status of the currently selected file and gives the option of selecting a new file.

  • Page 11: Statistics

    4. From the Local list choose the file to remove, and press Delete. Statistics The statistics section allows you to view the last 7 days’ data from within the SCS Connect controller. To see the data better, turn your device into landscape mode (on its side). You can add data points to review multiple points at once.

  • Page 12: Scs Info

    • SKOPE Asset # • SKOPE Serial # (the asset and serial numbers will be the same in most instances) • Model of the cabinet • Brand of the cabinet – the brand will vary if the cabinet belongs to a Corporate customer If your role includes setting up cabinets for Corporate or Fleet customers, you may have access to Reset IDs (see “Reset Cabinet IDs”...
  • Page 13 There are 6 sections in the SCS Setup page. The first 4 must be completed; the corporate owner may require all 6 to be completed. Asset # may be either the Corporate Asset # or the SKOPE Serial #. You can enter this manually (Corporate #), or use the camera on your device to scan the bar-code on the serial label inside the cabinet (SKOPE #).

  • Page 14: Deactivate Skope-Connect

    You will only need to enter information in this tab if the corporate owner does not permit SKOPE- access to the cabinet via the SKOPE-connect application that the store owner may have. If connect the corporate owner wishes to restrict this access, you need to add a Customer ID.

  • Page 15: Track App

    SKOPE SCS Connect Electronic Controller Track App The AoFrio Track app for mobile devices transfers data from SKOPE equipment using the SCS Connect controller to a cloud-based server. The app works automatically in the background. When the app detects a controller, it connects via Bluetooth to receive data from the controller and send data to the cloud.

  • Page 16: Faults And Alarms

    SKOPE SCS Connect Electronic Controller 3 Faults and Alarms ALr and the corresponding alarm number will alternate on the display Alarm symbol If a fault occurs, it is logged, the Fault - Alarm indicator is lit on the controller faceplate, and a message may be displayed.
  • Page 17 SKOPE SCS Connect Electronic Controller Table 3: Faults (continued) Description Possible root cause Actions Should be a one-off. If continues, consider: • power supply overloaded Test the incoming voltage to ensure it is correct. The test voltage needs to be between 198 and 264 volts.
  • Page 18 SKOPE SCS Connect Electronic Controller Table 4: Alarms Code Description Possible root cause Action • Low ambient temperature • Ensure that the cabinet is operating in its climate Estimated product class. temperature below allowable range • App settings • Check all app settings, and reinstall the parameters if required.
  • Page 19 SKOPE SCS Connect Electronic Controller Table 4: Alarms (continued) Code Description Possible root cause Action Cartridge swap is not required. • Very high ambient temperature • Ensure that the cabinet is operating in its climate class. • Condenser is not clean •...
  • Page 20 SKOPE SCS Connect Electronic Controller Table 4: Alarms (continued) Code Description Possible root cause Action • Blocked condenser • Remove and clean the condenser filter. • Check that the condenser is free of debris. • If the coil is dirty, clean it with a vacuum cleaner or soft brush.
  • Page 21 SKOPE SCS Connect Electronic Controller Table 4: Alarms (continued) Code Description Possible root cause Action Cartridge swap is not required. • Evaporator probe or • Either: Probe failure connections • Measure the probe resistance to make sure it A probe other than the control is within the range.
  • Page 22 SKOPE SCS Connect Electronic Controller Table 4: Alarms (continued) Code Description Possible root cause Action • Door not self-closing or door • Open the door and let it go. If it does not close on gasket leaking its own, repair the self-closing mechanism.

  • Page 23: Service Procedures

    Once the replacement refrigeration cartridge has been installed and tested, and is operating correctly, tell the customer that this cabinet is ready to be set up via the SKOPE-connect App. If the customer is a Corporate customer see “SCS Setup” on page 12.
  • Page 24 SKOPE Industries Limited ABN: 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...
