about Legends Connect
The AtGames Legends Connect is The Ultimate Single Board Arcade Solution™,
providing everything you need to power your home arcade projects. Simply install the
Legends Connect mainboard inside your project to enjoy 20 licensed arcade and
console games, as well as gain access to all of the amazing Legends Arcade Platform
features. The Legends Connect is ready to power your full-size, scale, cocktail,
countertop, console, virtual pinball, or any other type of home arcade project you can
imagine!
Package Includes
1. Legends Connect Board x1
2. Spacer x4
3. Antenna x1
4. Instruction Manual x1
5. Jumper Cap x1

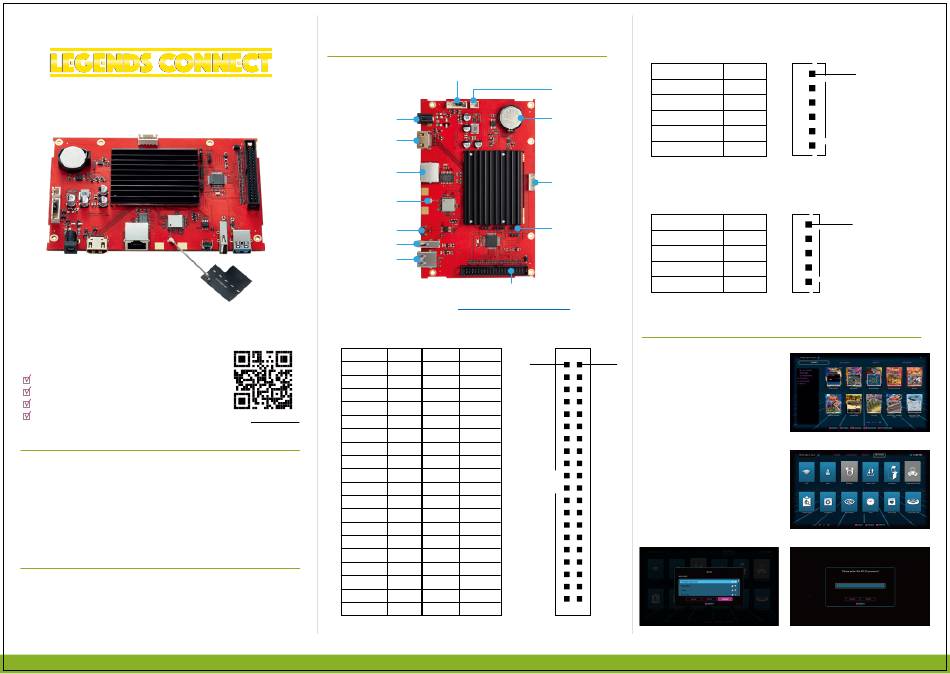

Legends Connect Features
POWER CONTROL CONNECTOR
12V POWER INPUT
HDMI OUTPUT
ETHERNET
WIFI ANTENNA
CONNECTOR
RECOVERY
USB (up to 480 Mbps)
USB (up to 5 Gbps)
*Please refer to the Application Note -
A. 40 PIN CONNECTOR
5V 1
N/C 3
N/C 5
N/C 7
N/C 9
Sign Up at www.arcadenet.net P2-C 11
P2-B 13
P2-Z 15
P2-Y 17
P2-X 19
P2-A 21
P2-RIGHT 23
P2-LEFT 25
P2-DOWN 27
P2-UP 29
P2-START 31
REWIND 33
GND 35
VOL + 37
N/C 39
SPEAKER/AMPLIFIER
REAL-TIME
CLOCK BATTERY
(CR2032)
LED CONNECTOR
CONTROL SWITCH*
40 PIN CONNECTOR
AN-101: Pandora's Box Compatibility.
2 3.3V
1
4 N/C
6 HOME
8 N/C
10 N/C
12 P1-C
14 P1-B
16 P1-Z
18 P1-Y
20 P1-X
22 P1-A
24 P1-RIGHT
26 P1-LEFT
28 P1-DOWN
30 P1-UP
32 P1-START
34 N/C
36 GND
38 VOL -
40 N/C
B. POWER CONTROL connector
LED 1
DC INPUT 2
NC 3
POWER SWITCH 4
DC INPUT 5
GND 6
C. LED CONNECTOR
NC 1
GND 2
NC 3
5V 4
3.3V 5
QUICK START GUIDE
All screenshots shown are for illustration purposes only. Actual screens may vary.
1. Power on the device.
2. Use P1 controller to select from [GAMES]
2
to enjoy 20 pre-loaded games. (Note:
Internet connection is not required. The
games can be played offline.)
3. To access the internet, connect an Ethernet
Cable (not included) or go to [SETTINGS]
to connect through Wi-Fi.
To connect through Wi-Fi:
4.
4-1. Select [Wi-Fi] under the [SETTINGS]
page.
4-2. Select the Wi-Fi SSID you would like to
connect to, and select [Connect]. If
prompted, enter the Wi-Fi password using
the on-screen keyboard and select [Submit]
when done.
1
