  • Page 1 GUITAR WIRELESS SYSTEM Manual...
  • Page 2 CERTIFICATION This Class B digital apparatus complies with Canadian Radio Approvals: ICES-003. FCC Part 15.249, FCC Part 15 B, RSS-210 (Canada), EN 300 440 (Europe), EN 301.489 (Europe), Japan Radio 2.4 GHz IC Caution: RSS-Gen Issue 4 December 2014"&"CNR-Gen Band (Japan), MIC ARIB STD-T66 (Japan), California 65, CE. 4e Décembre 2014: This device complies with Industry Canada licence-exempt RSS standard(s).
  • Page 3 Warning: Changes or modi cations not expressly approved and on, the user is encouraged to try to correct the in writing by Xvive may void the users authority to operate interference by one or more of the following measures: this equipment.
  • Page 4 TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, In extreme cases, they may even present a risk of DO NOT REMOVE SCREWS. explosion, re, heat, smoke or gas. Xvive does not accept NO USER-SERVICEABLE PARTS INSIDE. any liability for damagearising from abuse or misuse.
  • Page 5 • Do not continue to use defective rechargeable batteries. To deal with these old products and batteries properly, please • Only use rechargeable batteries speci ed by Xvive. help to save valuable resources and prevent any possibility of • Dispose of rechargeable batteries at special collection side e ects on human health and our environment due to points or return them to your specialist dealer.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS PLEASE KEEP THESE INSTRUCTIONS IN A SAFE PLACE WARNING: BEFORE USING YOUR XVIVE U2 DIGITAL WIRELESS SYSTEM, CAREFULLY READ THE OPERATING INSTRUCTIONS. 1. Carefully observe all instructions in the U2 manual 3. Do not place near heat sources, such as radiators, 2.

  • Page 7: Product Introduction

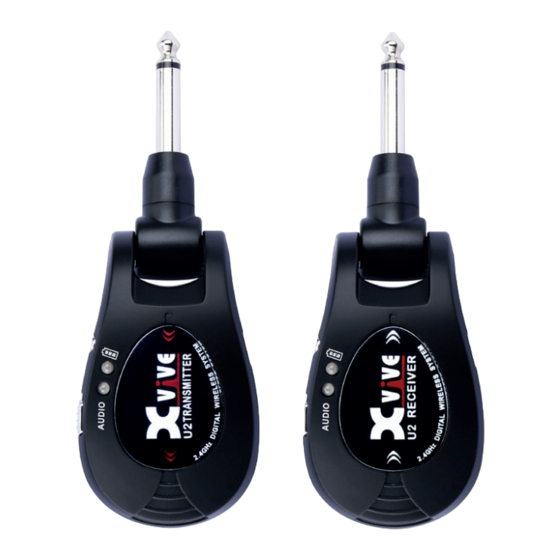

    Thanks to its simple and compact design, this wireless system is easily integrated in any pedalboard con guration. Go wireless with the Xvive U2 system. It will clean up the stage and give you freedom to move.

  • Page 8: Quick Start

    QUICK START Channel 1: one ash Channel 2: two ashes Channel 3: three ashes Channel 4: four ashes 1. Transmitter plugs into your guitar (or other instrument), 2. Turn transmitter and receiver on and verify that the the receiver plugs into the e ects pedal, amp or other blue LED ash the same number of times on both audio device.
  • Page 9 QUICK START Hello! 3. The LED on the receiver will stop blinking after the 4. Now, let’s rock together. connection was successfully established.

  • Page 10: Basic Operation

    BASIC OPERATION 1. Power – Slide switch to turn on/o  TRANSMETER/RECEIVER 2. Power LED and battery LED  solid red LED indicates Power ON  ashing red LED indicates low battery charge, charging required  LED will stop ashing during charging and turn o when charging is complete 3.
  • Page 11 BASIC OPERATION 4. Transmitter audio signal indicator LED  The blue signal indicator LED on the receiver will be solid when the signal is good. It will begin to ash when  When Power is on, the blue LED will ash to indicate the the signal becomes weak.

  • Page 12: Batteries And Charging

    30 minutes 1 hour 1 hour 2 hours 2 hours 5 hours Always store the U2 at room temperature. When storing the unit, please check the battery state regularly and charge if necessary. Connect Power Connect to the outlet Note:...
  • Page 13 2.4 GHz WIRELESS OVERVIEW AND INTERFERENCE The U2 operates in the 2.4 GHz ISM band, the same band 2.4 Ghz Frequency Tables used by Wi-Fi, Bluetooth, and other wireless systems. CHANNEL 1 2402 MHz, 2480 MHz, 2482 MHz 2.4 GHz is an open band and as such does not require a license to operate worldwide.
  • Page 14 If you have guitar, bass, keyboard and other ampli ers, or to an e ects pedal and a pedal tuner, you can instruments in your band, multiple U2 systems can be set up simply use multiple receivers set to the same channel.
  • Page 15 Antenna Angle USB connector The antenna is built into the rear end of the U2. Its angle can be changed by about 180°. The strongest signal will be emitted / The USB port is only intended for battery charging and received on the front part of the transmitter / receiver.

  • Page 16: Specifications

    SPECIFICATIONS Transmission bandwidth 2400 – 2483.5 MHz > 70 feet, line-of-sight outdoors. Actual range depends on RF signal Working range absorption, re ection and interference. Audio frequency response 20 Hz – 20 KHz(-3 dB). Dependent on microphone type or input signal. Dynamic range >103 dB Battery life...

  • Page 17: Application Example

    APPLICATION EXAMPLE Guitar Effects Pedal Guitar AMP Guitar / Bass Portable PA Systems Piezo-electric Acoustic Guitar Recorders GUITAR WIRELESS SYSTEM...
  • Page 18 SHENZHEN FZONE TECHNOLOGY CO., LTD. 2nd oor, Building 12, Xicheng Industrial Area, Xixiang Town, Baoan District, Shenzhen Guangdong China. 518101 E-mail: support@xvive.com www.xvive.com China Patent Numbers ZL 2016 3 0165464.8 Note: The manufacturer reserves the right to change these speci cations without notice.
