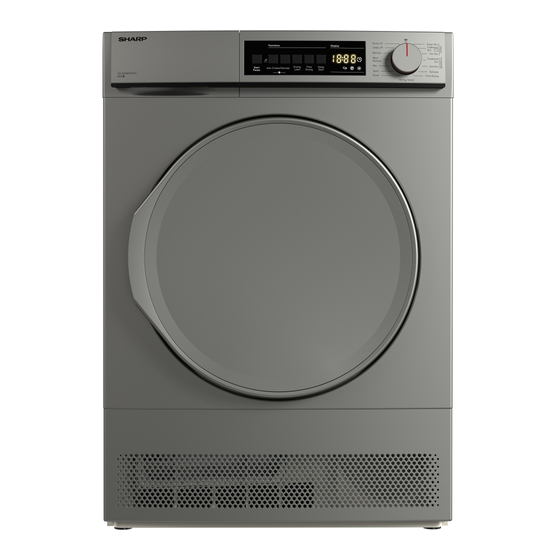

- Page 1 Home Appliances KD-NCB8S7PS91-EN KD-NCB8S7PB91-EN KD-NCB8S7PW91-EN Tumble Dryer User Manual...
- Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Caption Description...
-
Page 3: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS ................. 3 1.1. Electrical Safety ....................3 1.2. Children's Safety ..................... 4 1.3. Product Safety ....................5 1.4. Correct Use ..................... 6 1.5. Installing On Top Of a Washing Machine............7 2. INSTALLATION ....................9 2.1. Connection to Water Outlet (with optional drain hose) ........9 2.1.1. - Page 4 9. AUTOMATIC FAULT WARNINGS AND WHAT TO DO ........25 10. ENVIRONMENTAL PROTECTION AND PACKAGING INFORMATION ..26 10.1. Packaging Information ................. 26 11. DESCRIBING THE ENERGY LABEL AND SAVING ENERGY..... 26 11.1. Energy Labelling ..................26 11.2. Energy Efficiency ..................27 EN - IV...
- Page 5 PRIMARY CONSIDERATIONS • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 6 installation if neccessary must be done by an authorised service agent. • Before installation, check the product for visible damage. Never install or operate a damaged product. • Keep pets away from the dryer. • Fabric softeners, or similar products, should be used in accordance with the manufacturers instructions.
-
Page 7: Safety Instructions
1. SAFETY INSTRUCTIONS This section contains safety instructions that will help protect you from risk of personal injury or property damage. Failure to follow these instructions will void any warranty. 1.1. Electrical Safety • The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility. -
Page 8: Children's Safety
A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel. To avoid the risk or fire or electric shock, do not use extension cords, multi sockets or adapters to connect the dryer to mains power. -
Page 9: Product Safety
• Keep cleaning materials out of the reach of children Electrical products are dangerous for children. • Keep children away from the product while it is running. • To prevent children from interrupting the dryer cycle, you can use the child lock to avoid any changes in the running programme. -
Page 10: Correct Use
• Operating the dryer in environments that contain flour or coal dust may cause explosion. ATTENTION: Underwear that contains metal reinforcements should not be put in the dryer. The dryer may be damaged if metal reinforcements come loose and break off during drying. 1.4. -
Page 11: Installing On Top Of A Washing Machine
laundry (e.g. to prevent the laundry from catching fire), a cooling process starts after the heating process. After this, the programme ends. At the end of the programme, always remove the laundry promptly. ATTENTION: Never use the dryer without a lint filter or with a damaged lint filter. - Page 12 • To use the dryer on the washing machine, a fixing part must be used between the two products. The fixing part must be attached by an Authorised Service Provider. • When the dryer is placed on the washing machine, the total weight of these products may reach almost 150 kilograms (when loaded).
-
Page 13: Installation
2. INSTALLATION • Do not place the dryer onto the power cable. • Before contacting the local Authorised 2.1. Connection to Water Outlet (with Service Provider for the installation optional drain hose) of the dryer, check the information in the user manual to make sure that the In products with a condenser unit, water electrical installation and water outlet is accumulates in the water tank during... -
Page 14: Adjusting The Feet
3. OVERVIEW 2.2. Adjusting the Feet • For the dryer to work with less noise and vibration, it must be stable and balanced on its feet. Adjust the feed to ensure that the product is balanced. • Rotate the feet to the right and to the left until the dryer is even and stable. -
Page 15: Preparing The Laundry
4. PREPARING THE LAUNDRY 4.1. Sorting the Laundry to be Dried Follow the instructions on the labels of the laundry to be dried. Only dry items that have a statement/symbol that indicates "they can be dried in a dryer". • Do not operate the product with load amounts and laundry types other than those given in 4.3. -
Page 16: Preparing The Laundry To Be Dried
4.3. Load Capacity IMPORTANT: Delicate fabrics, embroided fabrics, woolen/silk fabrics, Follow the instructions in the "Programme clothes made of delicate and expensive selection and consumption table". (See: 5.2 fabrics, airtight clothes and tulle curtains Programme selection and consumption are not suitable for drying in the dryer. table). -
Page 17: Using The Tumble Dryer
5. USING THE TUMBLE DRYER 5.1.2. Electronic Indicator and Additional Functions 5.1. Control Panel 1. Programme Selection Knob Display symbols: 2. Electronic indicator and additional functions 5.1.1. Programme Selection Knob Water tank warning indicator Use the programme selection knob to select the desired drying programme Lint filter cleaning warning indicator Condenser cleaning warning indicator... -
Page 18: Programme Selection And Consumption Table
5.2. Programme Selection and Consumption Table Press the Start/Pause button to start the programme. The Start/Pause LED that indicates that the programme has started and the Drying LED will come on. Approximate Washing amount of Duration Programme Load (kg) machine remaining (minutes) spin speed... -
Page 19: Auxiliary Functions
5.2.1. Auxiliary Functions The table that summarises the options that can be selected in programmes is given below. Option Description Delicate Delicate fabrics are dried for a longer time at a low temperature The humidity level obtained after drying can be increased by 3 levels. This way, level of required dryness can be selected. -
Page 20: Starting The Programme
5.2.2. Starting the Programme The Start/Pause LED will flash during programme selection.Press the Start/Pause button to start the programme. The Start/Pause LED that indicates that the programme has started and the drying LED will come on. Programme Description This programme dries thick and multi-layer fabrics, such as cotton towels, Cotton Extra Dry bedsheets, pillowcases, bathrobes, at a high temperature to allow you to place them in a closet. -
Page 21: During The Programme
5.2.3. Selection Stand By 5.3. Drum Light Information After 15 minutes without user action in • This product includes LED Drum Light. selection mode, machine goes to energy- The light works automatically when you saving mode due to decrease energy open the door. - Page 22 OPTIONS PROGRAMMES Delay Buzzer Time Drying Child Lock Delicate Anticrease Start Cancel Drying Level Cotton Extra Dry Cotton Cupboard Cotton Iron Dry Synthetics Cupboard Dry Synthetics Iron Delicate Time Drying Allergy Smart Duvet Sport Wool Refresh Refresh Express 29' Shirts 12' Not selectable Selectable ATTENTION: “Delicate”...
-
Page 23: Cleaning And Care
6. CLEANING AND CARE After the dryer has been used for a certain period of time, if you encounter a layer that will cause obstruction on the filter surface, IMPORTANT: Do not use industrial wash the filter with warm water to clean the chemicals to clean your dryer. -
Page 24: Cleaning The Condenser
6.4. Cleaning the Humidity Sensor IMPORTANT: Never remove the water tank when the programme is running. The water condensed in the water tank is not suitable for human consumption. IMPORTANT: DO NOT FORGET TO EMPTY THE WATER TANK AFTER EACH USE. -
Page 25: Cleaning The Inner Surface Of The Loading Door
6.5. Cleaning the Inner Surface of the Loading Door IMPORTANT: DO NOT FORGET TO CLEAN THE INNER SURFACE OF THE LOADING DOOR AFTER EACH DRYING PROCESS. Open the loading door of the dryer and clean all of the inner surfaces and the gasket with a soft, damp cloth. -
Page 26: Technical Specifications
7. TECHNICAL SPECIFICATIONS Brand SHARP Model name KD-NCB8S7PB91-EN KD-NCB8S7PS91-EN KD-NCB8S7PW91-EN Height Min: 845 mm / Max: 855 mm* Width 596 mm Depth 563 mm Capacity (max.) 8 kg** Net weight (with plastic door) 32,4 kg Net weight (with glass door) -
Page 27: Troubleshooting
8. TROUBLESHOOTING Your dryer is fitted with systems that continuously perform checks during the drying process to take the necessary measures and warn you in case of any malfunction. WARNING: If the problem persists even if you have applied the steps in this section, please contact the your dealer or an Authorised Service Provider. - Page 28 PROBLEM REASON SOLUTION There might be lint accumulated on Clean the inner surfaces of the the inner surfaces of the loading Water leaking from the loading door. loading door and the surfaces of the door and on the surfaces of the gasket of the loading door.
-
Page 29: Automatic Fault Warnings And What To Do
9. AUTOMATIC FAULT WARNINGS AND WHAT TO DO Your tumble dryer is equipped with a built-in fault detection system, indicated by a combination of flashing operation lights. The most common failure codes are shown below. ERROR CODE SOLUTION Empty the water tank, if problem does not solved, contact the E03/ nearest authorised service agent. -
Page 30: Environmental Protection And Packaging Information
10. ENVIRONMENTAL 11. DESCRIBING THE ENERGY PROTECTION AND PACKAGING LABEL AND SAVING ENERGY INFORMATION 11.1. Energy Labelling 10.1. Packaging Information The packaging of this product is made of recyclable materials. Do not dispose of the packaging, waste together with household or other waste. Instead, take it to a packaging collection point defined by your local authority. -
Page 31: Energy Efficiency
11.2. Energy Efficiency • You should operate the dryer to full capacity, but make sure that it is not overloaded. • When the laundry is being washed, the spin speed should be at the highest level possible. This will shorten the drying time and reduce energy consumption. - Page 32 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 Supplier name or trademark SHARP Model name KD-NCB8S7PB91-EN KD-NCB8S7PS91-EN KD-NCB8S7PW91-EN Rated capacity (kg) Type of Tumble Dryer Condenser Energy efficiency class Annual Energy Consumption (kWh) Automatic of Non-automatic Automatic Energy Consumption of the standard cotton programme at full load (kWh)
