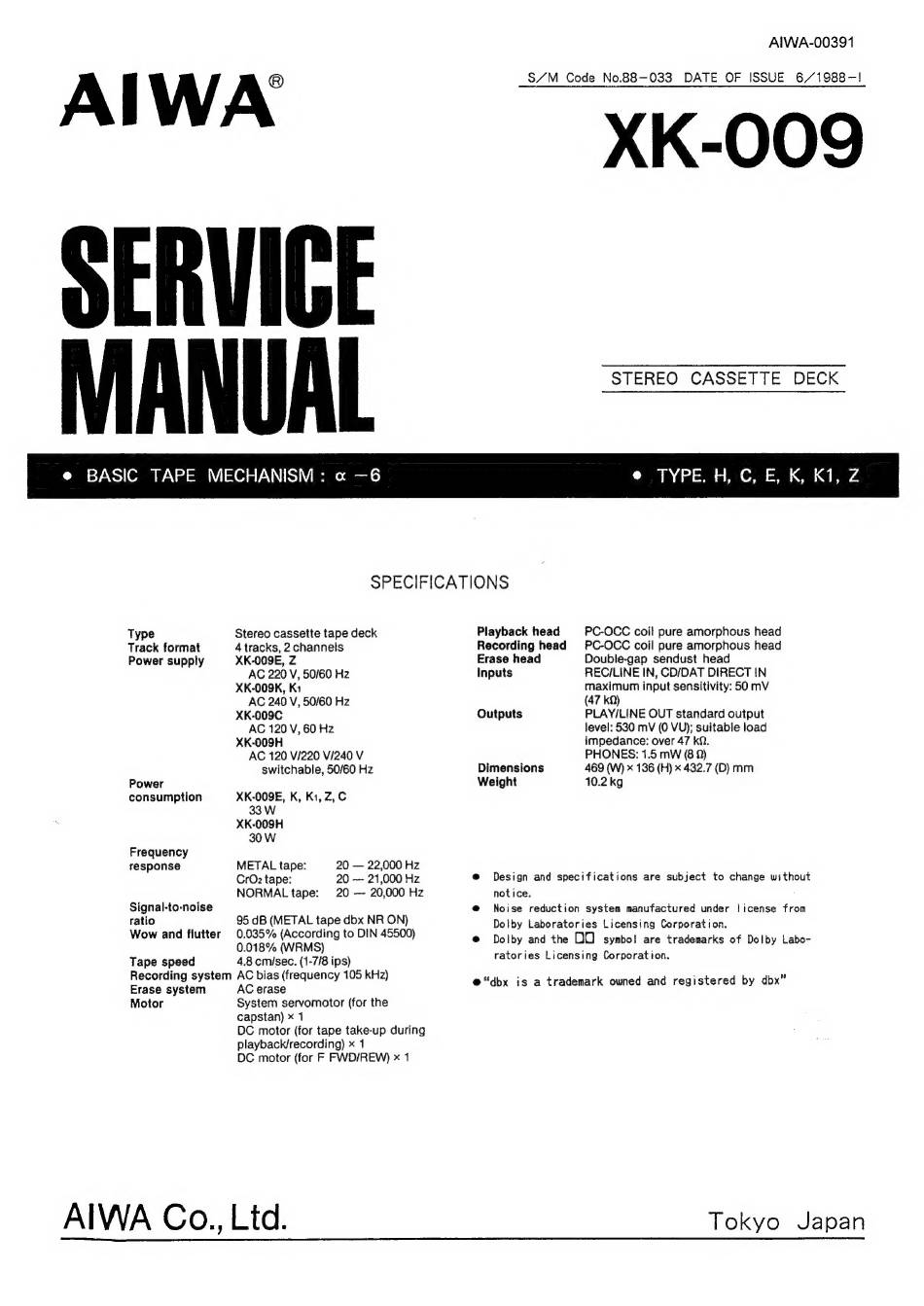

Aiwa XK-009 Service Manual

AIWA-00391
S/M Code No.88-033 DATE OF ISSUE 6/1988-|
AIWA XK-009
e BASIC TAPE MECHANISM : a —6
STEREO CASSETTE DECK
@ TYPE. H, C, E, K, K1, Z
SPECIFICATIONS
Type
Track format
Power supply
Power
consumption
Frequency
response
Signal-to-noise
ratio
Wow and flutter
Tape speed
Recording system
Erase system
Motor
Stereo cassette tape deck
4 tracks, 2 channels
XK-O09E, Z
AC 220 V, 50/60 Hz
XK-009K, Ki
AC 240 V, 50/60 Hz
XK-009C
AC 120 V, 60 Hz
XK-009H
AC 120 V/220 V/240 V
switchable, 50/60 Hz
XK-009E, K, K1, Z,C
33 W
XK-009H
30 W
METAL tape: 20 — 22,000 Hz
CrO2 tape: 20 — 21,000 Hz
NORMAL tape: 20 — 20,000 Hz
95 dB (METAL tape dbx NR ON)
0.035% (According to DIN 45500)
0.018% (WRMS)}
4.8 cm/sec. (1-7/8 ips)
AC bias (frequency 105 kHz)
AC erase
System servomotor (for the
capstan) x 1
DC motor (for tape take-up during
playback/recording) x 1
DC motor (for F FWD/REW) x 1
AIWA Co., Lid.
Playback head
Recording head
Erase head
Inputs
Outputs
Dimensions
Weight
PC-OCC coil pure amorphous head
PC-OCC coil pure amorphous head
Double-gap sendust head
REC/LINE IN, CD/DAT DIRECT IN
maximum input sensitivity: 50 mV
(47 kQ)
PLAY/LINE OUT standard output
level: 530 mV (0 VU); suitable load
impedance: over 47 kf.
PHONES: 1.5 mW (8 0)
469 (W) x 136 (H) x 432.7 (D) mm
10.2 kg
@ Design and specifications are subject to change without
notice.
@ Noise reduction system manufactured under |icense from
Dolby Laboratories Licensing Corporation.
@ Dolby and the OO symbo! are trademarks of Dolby Labo-
ratories Licensing Corporation.
e@"dbx is a trademark owned and registered by dbx"
Tokyo Japan
