- Page 1 Service | Quick Guide v1.2 April 2022 Clavia Service Contact Information service@clavia.se +46 8 442 73 63...
-
Page 2: Main Features

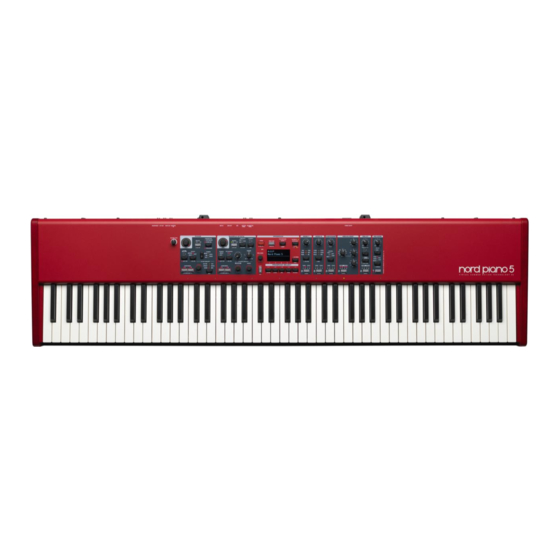

It may not be copied, modified or distributed in any way. Main features The Nord Piano 5 comes in two versions, 88 and 73 keys, both models with hammer action using the triple switch Fatar TP40 keybed. The latest edition of our award-winning Piano series is equipped with dual piano engines, dual sample synths and twice the memory of the previous generation. - Page 3 https://www.nordkeyboards.com/products/nord-piano-5/nord-piano-5-comparison-chart...
- Page 4 Opening the NordPiano 5 The NP5 is opened by loosening four out of five screws on each wooden side panel. Keeping the screw mounted in each rear down-left/right corner makes it easier to tilt the upper lid when opening up the machine, please see the picture.
- Page 5 The actual keybed used in the 88-keys version is the same (49619) as used in NP3/NP4, but with these crossbars added. See picture below. Each individual keybed is calibrated on single key level in the Clavia factory and the IC holding this information is attached under the keybed.
- Page 6 Rev B – with highlighted changes from Rev A The Rev B version of the Nord Piano 5 adds a number of features related to both the Sample Synth and Piano sections. A dedicated Voice mode control is added which provides both Mono and Legato settings apart from the default “poly” mode, for the Sample Synth. Related to this feature, a Glide (portamento) control lets the user choose from four different glide rates (Off, 1, 2, 3) when Mono or Legato is active.
-
Page 7: Main Board
Nord Sound Manager version. These files can be downloaded from the website above. If the problem persists, or if the NP5 can’t reach the test mode at all, please contact Clavia for further assistance at service@clavia.se... -
Page 8: Test Mode
Test mode Like all Nord products, the NP5 holds an internal test program that is used in the production line and as a guide for troubleshooting at service centres. Test mode [Shift + Split] Holding down LIVE MODE at boot up will show the hardware revision and the boot prom version in the display. Test Confirm, used in test program to confirm operations that modify contents of non-volatile memory and/or require asking "Please Confirm". - Page 9 (Various mainboard tests, comments on useful tests) 1. Mainboard Tests Test sequence used in production that automatically runs various DSP/Flash tests etc. 2. Final Tests - Production only 3. E2P Quick EEPROM test, quick version E2P Total 5. DSP Quick 6.
-
Page 10: Troubleshooting Guide
Trouble Shooting Guide OS-mode The normal boot up process when powering up any Nord unit can be divided into a couple of sections that may reveal issues on a reported “broken” unit. When powered on, the first thing that “happens” is the “Nord model”-logo shown in the display ...
