- Page 1 Manual for RockBoard® MOD 7 All-in-One USB Audio Interface Patchbay for Pedalboards...
-
Page 2: Table Of Contents
Contents Introduction ........................3 Precautions ........................3 Power Supply ......................3 Connections ......................3 Cleaning ........................3 Handling ........................3 Risk of Electric Shock ....................3 FCC Certification ......................4 Main Features ........................ 4 Mounting ........................5 Mounting on a RockBoard® pedalboard ................5 Detaching the MOD 7’s front plat ................... -
Page 3: Introduction
Introduction Thank you for purchasing a RockBoard® MOD 7 - the new gateway and USB audio interface for your effects setup! The RockBoard® MOD 7 USB Audio Interface Patchbay offers an easy-to-use audio interface without any special driver or software requirements. In addition, the MOD 7 also acts as an active DI box and offers a simple solution to organize all connections to and from your effects setup. -
Page 4: Main Features

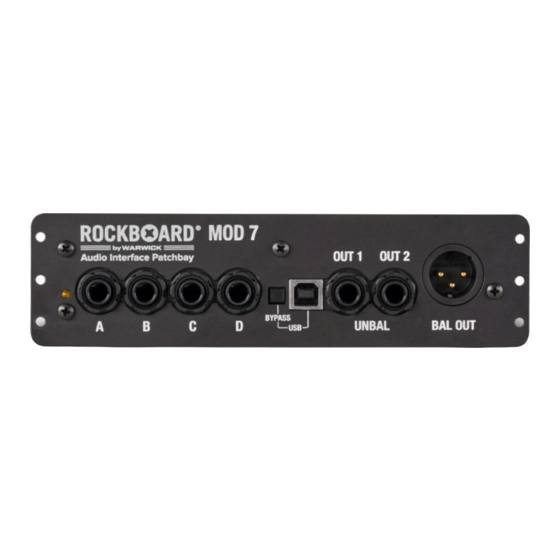

Main Features • All-in-One USB Audio Interface Patchbay for Pedalboards • Compatible with PC & MAC • Recording and digital signal processing via DAW plug-ins • No drivers or special software required • Output via USB Type B, 2x unbalanced 6.3 mm / 1/4” (TS) jack, 1x balanced XLR •... -
Page 5: Mounting
Mounting There are multiple options to mount your new MOD 7 onto a RockBoard® pedalboard. You can mount it directly into the MOD slot (available on all RockBoard® pedalboards except the DUO Series) or detach the MOD’s front plate and mount it on top or underneath your pedal board. Mounting on a RockBoard®... -
Page 6: Detaching The Mod 7'S Front Plat
Detaching the MOD 7’s front plate To mount the RockBoard® MOD 7 - All-in-One USB Audio Interface Patchbay for Pedalboards on top or underneath your pedalboard, you must detach the front plate, so it will fit flush onto/under the board surface. Remove the screws as indicated below to release the front plate from your MOD using a PH2 Phillips head screw driver. -
Page 7: Mounting On A Non-Rockboard® Pedalboard
Mounting on a non-RockBoard® pedalboard There are multiple ways to mount your MOD 7 on a non-RockBoard® pedalboard. You can either mount it directly to the board surface using hook & loop tape or another reusable fastener. In addition, RockBoard® offers the MOD Rack (sold separately) to mount your MOD 7 in various ways onto, into or underneath the pedalboards of other manufacturers. -
Page 8: Setup & Operation
Setup & Operation Setup Example AMP FOOTSWITCH BYPASS / MUTE FOOTSWITCH FTSW FOH MIXER MONITORS SEND FTSW IN RETURN PC / DAW / MAC Thru-Connections The RockBoard® MOD 7 - All-in-One USB Audio Interface Patchbay for Pedalboards is designed to act as central access point to your effects setup. -
Page 9: Unbalanced Ts Outputs (Unbal Out 1/2)
Unbalanced TS Outputs (UNBAL OUT 1/2) The unbalanced connections UNBAL OUT 1 and UNBAL OUT 2 of the MOD 7 can be used to operate studio monitors and other active loudspeakers or to send the signal to an amplifier. Please note that UNBAL OUT 1 sends an output signal without a power supply, as well as in bypass mode. - Page 10 NORTH EUROPEAN DISTRIBUTION: www.rockboard.de | info@rockboard.de | www.w-distribution.de | www.facebook.com/warwickmusicdistribution Headquarters: Warwick GmbH & Co. Music Equipment KG | 08258 Markneukirchen / Germany | +49 (0) 37422 / 555 - 0 Family Owned • Solar Powered • Sustainably Manufactured in a Green Environment...
