This manual is intended only for use by a qualified heating installer/technician. Read and follow this manual, all supplements and related
instructional information provided with the boiler. Install, start and service the boiler only in the sequence and methods given in these
instructions. Failure to do so can result in severe personal injury, death or substantial property damage.
Do not use the boiler during construction.
the burner, resulting in possible severe personal injury, death or substantial property damage. The boiler can only be operated with a dust-
free air supply. Follow the instruction manual procedures to duct air to the boiler air intake. If the boiler has been contaminated by operation
with contaminated air, follow the instruction manual guidelines to clean, repair or replace the boiler if necessary.
Affix these instructions near to the boiler. Instruct the building owner to retain the instructions for future use by a qualified service technician,
and to follow all guidelines in the User' s Information Manual.

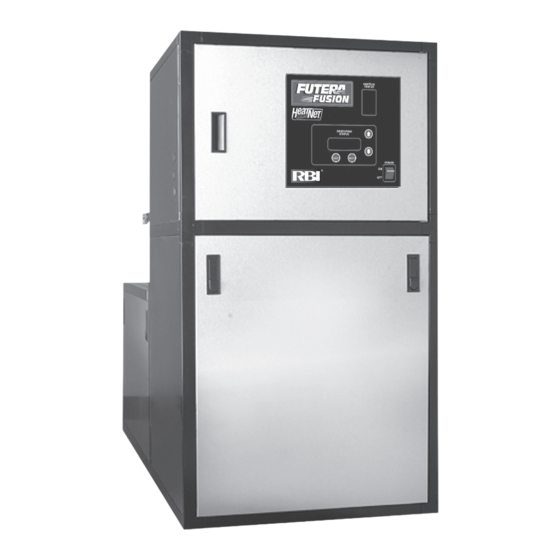

Condensing
Finned Copper
Gas Boilers (CB) &
Water Heaters (CW)
Optional PVC
Vent System
Installation Instructions
Supplement
Also read and follow:
Futera Fusion Installation
and Operation Manual
Construction dust and particulate, particularly drywall dust, will cause contamination of
FTF-PVCVO-4
82-0340
08/16 Copyright 2008 Mestek, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mestek RBI FUTERA FUSION
Summary of Contents for Mestek RBI FUTERA FUSION
- Page 1 Affix these instructions near to the boiler. Instruct the building owner to retain the instructions for future use by a qualified service technician, and to follow all guidelines in the User’ s Information Manual. 08/16 Copyright 2008 Mestek, Inc.
- Page 2 Optional PVC vent system installation instructions supplement These instructions are specific to using schedule 40 PVC pipe as the PVC Vent Adapter Installation Figure 1 vent system for the RBI Fusion. The instructions contained in the Fusion Installation and Operation Manual, including all applicable Combustion Air &...
- Page 3 Optional PVC vent system installation instructions supplement PVC Vent Vertical Adapter Kit Figure 3 RING CLAMP INTERNAL RIBBED SEAL JUMO HIGH LIMIT 12" VENT PIPE (2500-4000 ONLY) FITTING STACK TEMPERATURE STOP BEAD O-RING SEAL SENSOR RIOM-0092_B RING CLAMP PVC VENT ADAPTOR INSTALLATION PVC VENT ADAPTOR WIRING Improper installation of the PVC vent adaptor can Failure to properly connect the flue temperature sensor...
- Page 4 Optional PVC vent system installation instructions supplement All primers, cleaners and cements must meet all local Table 2 Vent System Size codes. Before using primers, cleaners and cements, stir Model Size Pipe Diameter or shake well, making sure the contents are liquid. Do not use if found to be lumpy or in a jelly-like state.
- Page 5 Optional PVC vent system installation instructions supplement 4. Apply a coat of primer to the pipe and fitting surfaces that will Horizontal PVC 45° Elbow Terminal Figure 5 be joined. 5. Apply a thin coat of cement to the fitting surface that will be joined making sure not over apply the cement which can cause puddling inside the fitting.
- Page 6 Optional PVC vent system installation instructions supplement Vertical PVC Terminal Table 3 Turn Down vs Combustion Air Source Figure 8 Terminal Type Combustion Air Turn Down Ratio Indoor Outdoor Indoor 1/4'' SS Bird Screen 45° Elbow Outdoor In Opening Indoor 90°...
- Page 7 Optional PVC vent system installation instructions supplement...
- Page 8 260 North Elm Street 7555 Tranmere Drive Westfield, MA 01085 Mississauga, Ontario L5S 1L4 Canada Phone: (413) 568-9571 Phone: (905) 670-5888 Fax: (413) 568-9613 Fax: (905) 670-5782 www.rbiwaterheaters.com Copyright 2008 Mestek, Inc.
