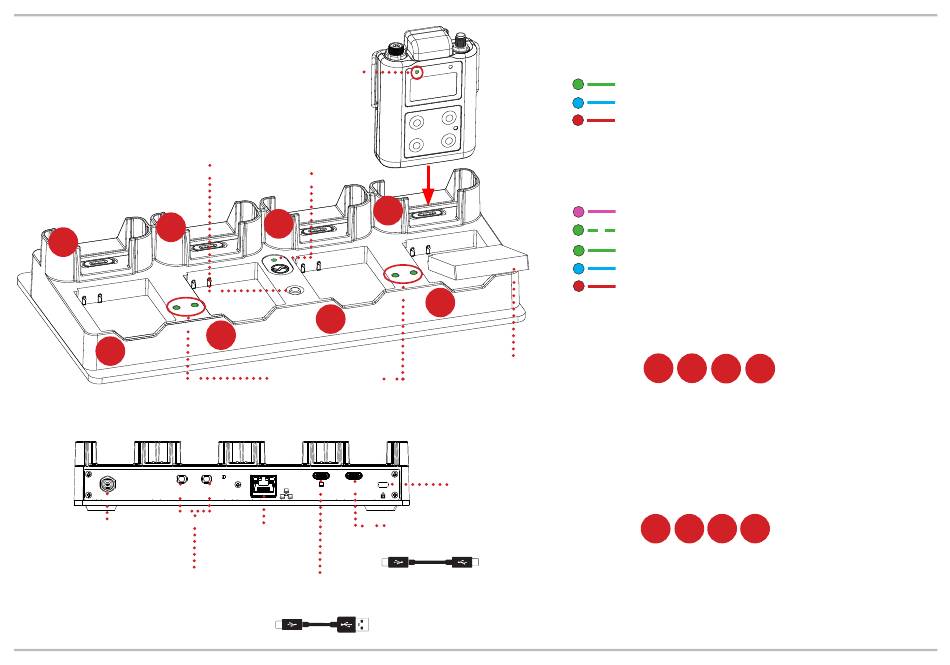

WisyCom LBC61 Quick User Manual page 2

COMMAND BUTTON
Quick press for bodypacks
general info. Press and hold to
start bulk timecode jamming
2
1
A
8÷17 Vdc
POWER LTC SYNC
Power Supply
PSP15V4A0
Timecode I/O
Minijack 3.5mm
MTP61 battery
status led (**)
LBC61
status led (*)
4
3
C
B
LBC61 batteries
status led (**)
REAR VIEW
LINK / ACT 10 / 100
USB 2.0 HS
Ethernet
USB Cascade to next LBC61
(to PC)
C
USB 2.0/3.0
Type C to Type A to PC
C A
D
Battery packs
LBP61
Kensingthon
Security Slot
USB Type C
C
(*) LBC61 status LED
GREEN: unit ON
GREEN: connected to Wisycom Manager
RED: over temperature
(**) MTP61/LBC61 battery status LED
PINK: no battery inside (MTP61 only)
GREEN BLINKING: in charge (<70%)
GREEN: in charge (>70%)
BLUE: fully charged (100%)
RED: battery failure
1 2
3
LBC61 BODYPACK SLOTS
When placed into a recharging slot
a unit enters a standby mode. It will
automatically begin charging. When
removed, the unti returns to the state it
was in prior to charging.
A B C D
LBC61 BATTERIES SLOTS
A full battery recharge should
take less than 2 hours.
4
