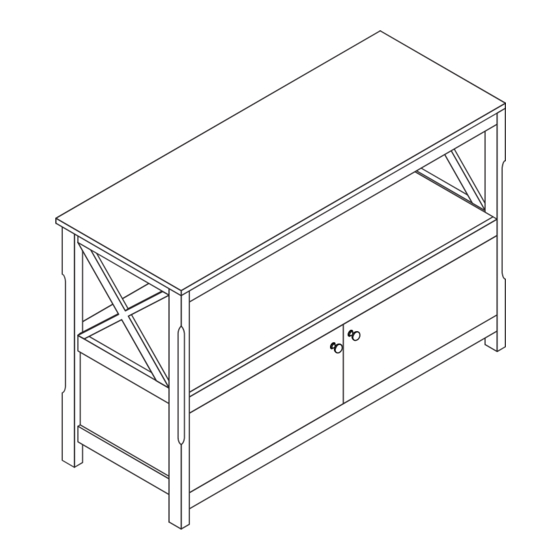

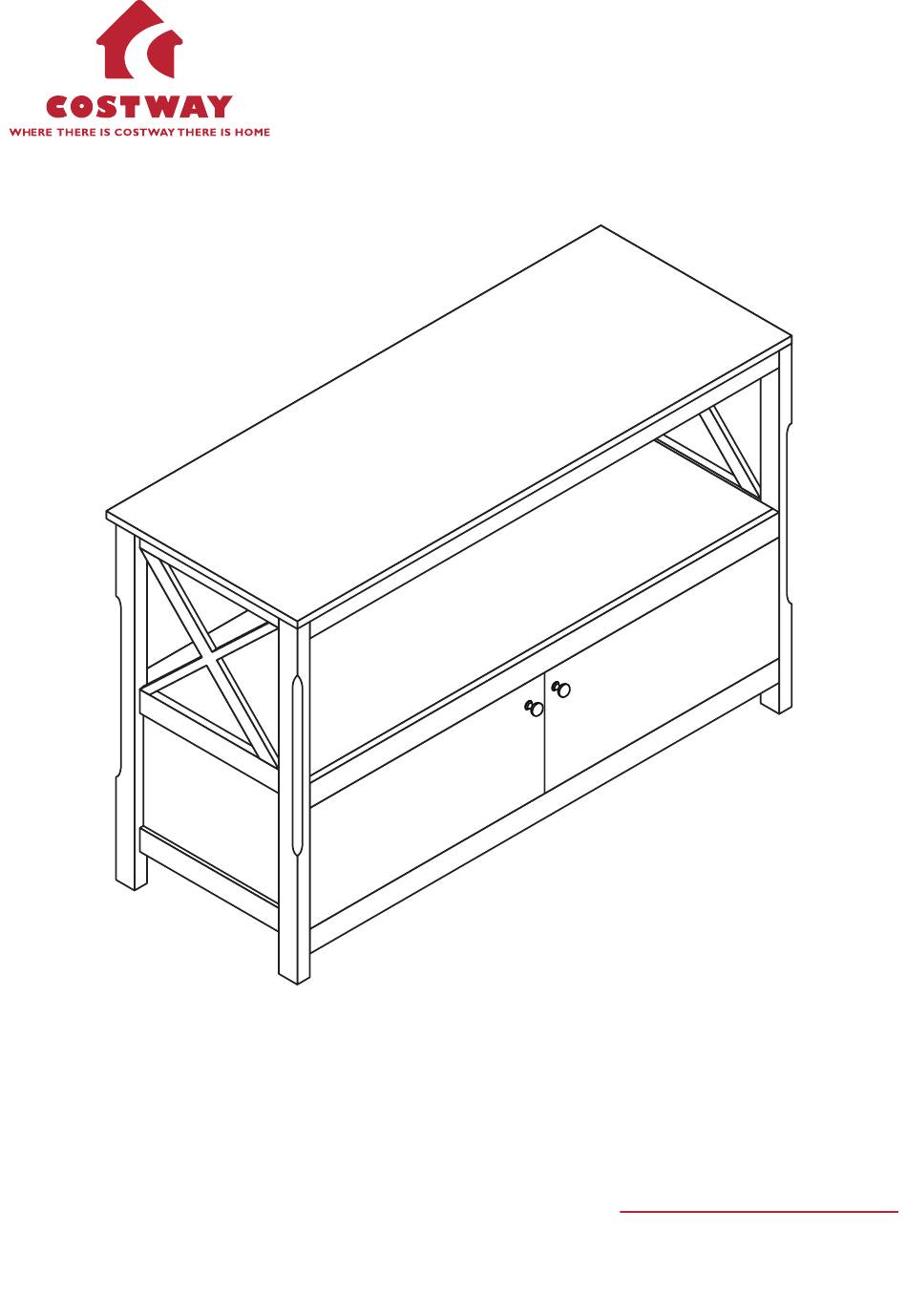

- Page 1 USER'S MANUAL TV STAND HW57048...
-
Page 2: Product Assembly
PRODUCT ASSEMBLY 2 pcs 34 pcs 34 pcs 4 pcs 32 pcs 5 pcs 2 pcs 18 pcs 2 pcs Fixed Button 4 pcs 4 pcs 4 pcs 3*14mm 3*16 mm 2pcs Top Connect 2 pcs Upper Back Shelf 1 pc Panel Lower Back Panel... - Page 3 PRODUCT ASSEMBLY Parts List Assembly Overview...
- Page 4 PRODUCT ASSEMBLY STEP 1 a) Screw in Cam-bolt (A) into designated holes on Shelf and Bottom Connect Bar (5). b) Insert Wood Dowel (C) into designated holes on Shelf (2) and Bottom Panel (3). c) Attach (12) to (2 & 3) via Cam-bolts and Wood Dowels.
- Page 5 PRODUCT ASSEMBLY STEP 3 a) Screw in Cam-bolt (A) into designated holes on Left Side Panel (4). b) Insert Wood Dowel (C) into designated holes on (2, 3 & 12). c) Attach (4) to (2, 3 & 12) via Cam-bolts and Wood Dowels. d) Insert Cam-lock (B) into designated holes on (2, 3 &...
- Page 6 PRODUCT ASSEMBLY STEP 5 a) Screw in Cam-bolt (A) into designated holes on Right Side Panel (6). b) Insert Wood Dowel (C) into designated holes on (2, 3, 7 & 12). c) Attach (6) to (2, 3, 7 & 12) via Cam-bolts and Wood Dowels. d) Insert Cam-lock (B) into designated holes on (2, 3, 7 &...
- Page 7 PRODUCT ASSEMBLY STEP 7 a) Insert Fixed Button (L) to the gap between Back Panel and Side Panel. b) Fix the Fixed Button (L) by using Screw (M). c) Fix Back Panels to Shelf by using Screw (J) as shown. STEP 8 a) Attach Hinge (I) and Magnetic Bar (H) to Door (10 &...
- Page 8 Great products so far February 24, 2018 Great product so far. Fast delivery, easy setup, and working without any issues. With your inspiring rating, Costway will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! US office:Fontana...
