Summary of Contents for MSD MM300
- Page 1 MM300 and MM100 Manual Page 1 of 6 REV01...
- Page 2 Contents Product definitions ....................3 Introduction ......................3 Principle ....................... 3 Wire Colors ......................4 Technical data: ..................... 4 Safety precautions ....................5 Milk meter MM300 and MM100 ................5 Foreword ......................5 Disclaimer ......................5 Safety regulations ....................5...

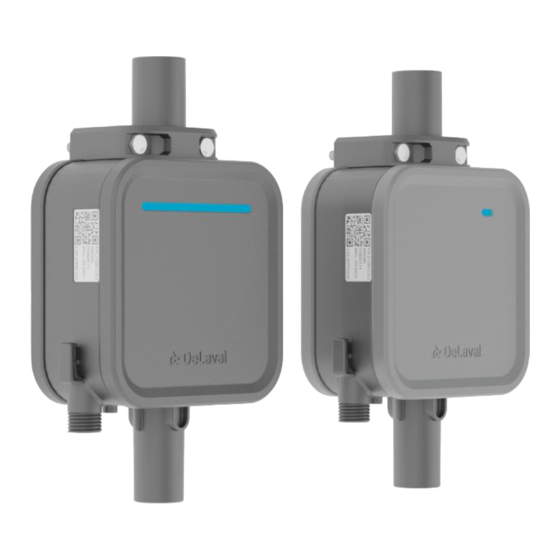

- Page 3 MM300 and MM100 Manual Page 3 of 6 REV01 Product definitions Introduction The DeLaval milk meter MM300 (A) is an electronicmilk meter designed to record the milk yieldof cows; see Fig. 1. It has no moving parts. Electrodes for conductivity sensing are positionedin the regulator sensor valve.
- Page 4 MM300 and MM100 Manual Page 4 of 6 REV01 These measurements are analyzed in order toseparate milk slices. The following data is calculatedfor each milk slice: Length of milk slice Speed Acceleration Air entry Density By analysing and computing the above data,accurate milk flow and yield is achieved.
- Page 5 MM300 and MM100 Manual Page 5 of 6 REV01 Safety precautions Milk meter MM300 and MM100 The Milk meter is design to be connect to limited power source with maximum voltage of 30VDC and 0.5 Amp. Foreword It is your responsibility to see that any personinvolved with the use or operation of this equipmentfollows all safety and operational instructions.
- Page 6 MM300 and MM100 Manual Page 6 of 6 REV01 This device FCC ID: AMUMM300 This equipment has been tested and found to comply with the limits for a NOTE: Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
