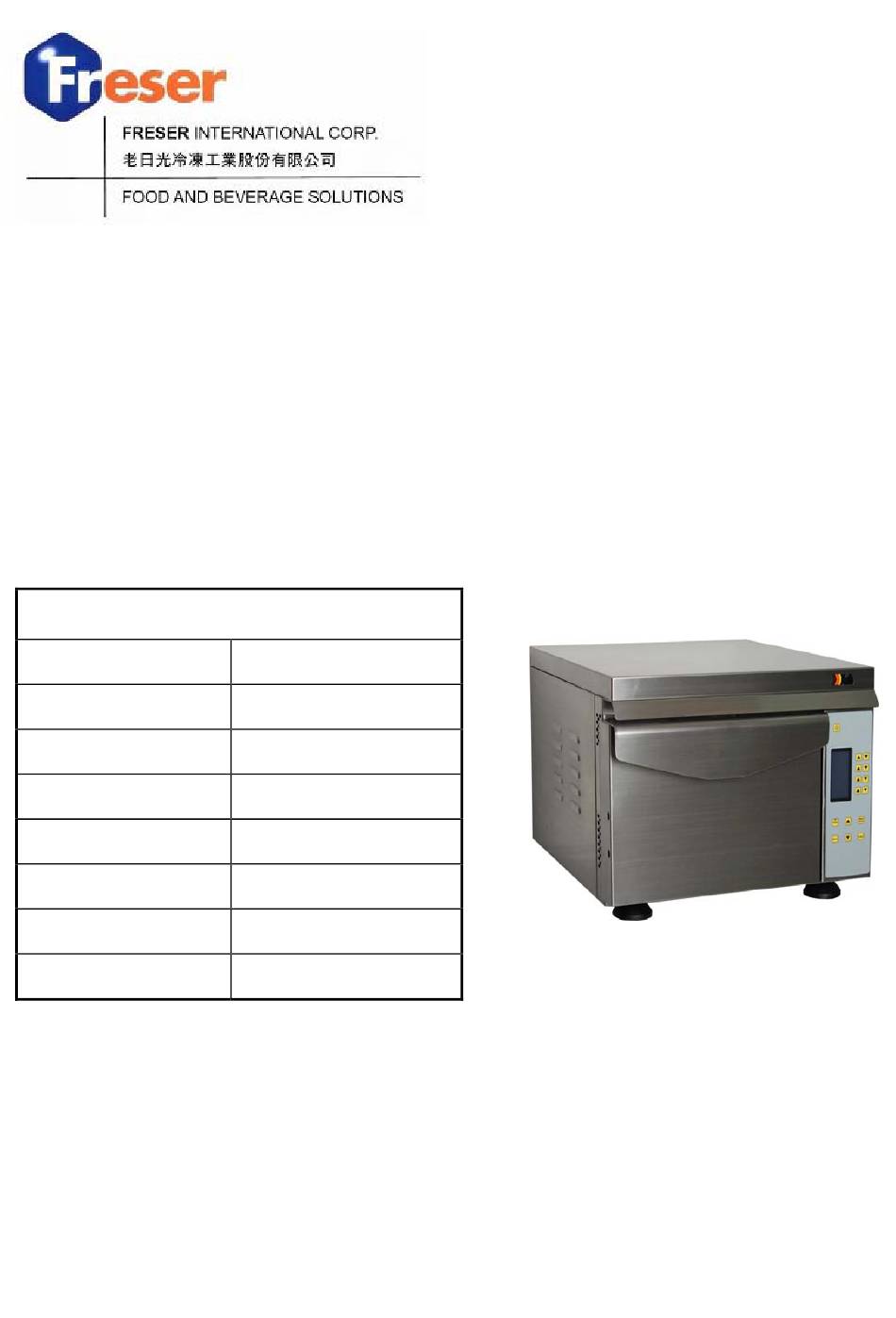

FRESER AS-300 Operation Manual

Micro-convection oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Convection Oven
Model
Power
Microwave Power
Voltage
Current
Net Weight
Baking Chamber Dim.
Outside Dim.
FRESER INTERNATIONAL
email: info@freser.com.tw
web: www.freser.com
Micro-Convection Oven
AS-300
3.7KW
1.1KW
230V/60Hz/1ph
16A
61 Kgs
310Wx310Dx170H mm
540Wx700Dx420H mm
AS-300
Model
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-300 and is the answer not in the manual?

Questions and answers

Related Manuals for FRESER AS-300

Summary of Contents for FRESER AS-300

  • Page 1 AS-300 Model Micro-Convection Oven Operation Manual Convection Oven AS-300 Model Power 3.7KW 1.1KW Microwave Power 230V/60Hz/1ph Voltage Current 61 Kgs Net Weight Baking Chamber Dim. 310Wx310Dx170H mm 540Wx700Dx420H mm Outside Dim. FRESER INTERNATIONAL email: info@freser.com.tw web: www.freser.com...

  • Page 2: Table Of Contents

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Table of Contents 1. Introduction ....................3 2. Important Safety Instruction ..............4 3. Oven Installation ..................5 3.1 Electric connection .................5 3.2 Start the oven for the first time ...............6 4. Technical Data .................... 6 5.

  • Page 3: Introduction

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 1. Introduction Notes on Technical Dimensions and Installation Planning of the Atoll Speed Micro-Convection Oven. When planning the installation of the Atoll Speed, make sure that the installation side (especially the right side) is permanently accessible. When planning the installation of an Atoll Speed in a wall recess, keep free the following spaces around the baking oven.

  • Page 4: Important Safety Instruction

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 2. Important Safety Instruction  Read this instruction manual before using this oven. The oven should be used only for the purpose described in this instruction manual. For other function get the approval from your local agent or the factory. ...

  • Page 5: Oven Installation

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________  when heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;  If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;...

  • Page 6: Start The Oven For The First Time

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ The residue Current switch must be rated 30mA or more. Do not plug other devices together with Atoll Speed to the same connection. Do not use Multi Plug connectors. Risk of cable burns! Extension lines must be rated to 16A and have the according wire strength (3 x 2,5mm²...

  • Page 7: Why Is The Cooking Speed So Fast

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Dimensions of baking chamber 320x320x170 mm Weight of machine 61 kg Power 3.5 kW Heating power 3.3 kW Microwave power 1.1 kW Voltage 230V/1 phase/50-60Hz Current consumption Working environment 0 – 40° C Temperature 5.
  • Page 8 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Groups: Up to 10 different Product Groups can be set. Service Mode: In this mode the oven settings can be changed. Attention! These settings should be only changed by qualified staff. Set Temperature: Set the temperature for baking.

  • Page 9: Description Of The Pcb Function

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 7. Description of the PCB Function 1. ON/OFF key to start and stop the oven 2. Increasing/Decreasing key to adjust 3. Screen 4. Function key 5. Increasing/decreasing key for Program adjustment 6. Program Start/Stop key 7.

  • Page 10: How To Start Atoll Speed

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 7.1 How to Start Atoll Speed 1. Press ON/OFF key to start Atoll Speed 1. Choose menu items 2. Press ENTER key to enter the next menu step This document is property of Kolb Huizhou Ltd.

  • Page 11: How To Work In Manual Mode

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 7.2 How to Work in Manual Mode 1. Select Manual Mode 1. Set Time, Temperature, 2. Press ENTER key to go to Microwave and Air flow the next menu step 2. Press START to start baking This document is property of Kolb Huizhou Ltd.
  • Page 12 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ When the Baking Program is finished open After closing the door the door and take out the products. you can continue or go back to the main screen by pressing BACK key. This document is property of Kolb Huizhou Ltd.
  • Page 13 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 7.3 How to work in Program Mode 1. Switch to Program Mode 1. Choose the Product Group 2. Press ENTER key to enter 2. Press ENTER key to enter the the next menu step next menu step.
  • Page 14 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 1. Choose the desired Baking Program Display showing the Baking Program 2. Press START key to start the with the settings. Program. This document is property of Kolb Huizhou Ltd.
  • Page 15 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ When the baking program is finished After closing the door the last open the door and take out the products. selected group is displayed. You can go back to the groups/ main screen by pressing the BACK key This document is property of Kolb Huizhou Ltd.

  • Page 16: How To Write A Program

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 7.4 How to write a Program 1. Switch to Programming Mode 2. Press ENTER key to go to the next menu step This document is property of Kolb Huizhou Ltd.
  • Page 17 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 1. A three digit PIN is asked, Default PIN is “000”. The PIN can be changed in Service Mode. 2. With the Increasing/Decreasing Key set the PIN number. To switch to the next number press ENTER key. This document is property of Kolb Huizhou Ltd.
  • Page 18 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Switch to a free Group space or select an existing group to overwrite. Press ENTER key to continue. This document is property of Kolb Huizhou Ltd.
  • Page 19 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Write the name of the Group. With the Increase/Decrease key you can change the letters. Go to the next letter with ENTER key. After finishing to write the group name press ENTER key for 3 seconds to go to the next menu step. This document is property of Kolb Huizhou Ltd.
  • Page 20 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Switch to a free program space or you can select an existing program in order to overwrite it. Press ENTER key to continue. This document is property of Kolb Huizhou Ltd.
  • Page 21 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Write a name for the Program. With the Increase/Decrease key you can change the letter. Go to the next letter with Enter key. After finishing to write the program name press ENTER key for 3 seconds to go to the next menu step. This document is property of Kolb Huizhou Ltd.
  • Page 22 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Each Program can have 6 program steps. The current program step will be displayed in the right upper corner of the screen with Step 1 – 6. Note that convection heating needs time to reach a different temperature. Thus after a new program step with a different temperature starts, the oven needs some time to adjust.
  • Page 23 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Now all program steps are displayed with the selected parameters. If everything is correct you can save the program by pressing ENTER for one second. This document is property of Kolb Huizhou Ltd.

  • Page 24: Service Mode Attention! Only For Qualified Staff

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 7.5 Service Mode ‫ ــ‬Attention! Only for qualified staff 1. Switch to Service Mode Insert the Pin code with 2. Press ENTER key for the the key by scrolling up next menu step and down.
  • Page 25 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Service Mode Picture 1 1. MIC TIME Microwave time setting. Factory setting is 10. This number should not be changed. 2. SET TEMPERATURE With this function you can change the temperature of the oven which is normally used.
  • Page 26 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Service Mode Picture 2 1. Change Temp.: You can adjust the displayed Act. Temp.. If the actual temperature differs from the displayed Act. Temp., you can correct with up and down key. For example: The display shows 260˚C. The real temperature measured with an external thermometer in the baking chamber is 270˚C.
  • Page 27 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Service Mode Picture 3 1. When you want to activate PIN codes this parameter must be set to “Y”. The factory PIN is “000”. When set to “N” no PIN codes are asked. Three different PIN codes for different authorised people can be set.

  • Page 28: Reset Parameters & Erase Memory

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 7.6 Reset Parameters & Erase Memory By changing the “SET Parameters When the oven is turned OFF, press to default” to “YES”, the set code will Start/Stop key for 6 seconds. change to factory setting “000” To set a new PIN code see “Service Mode Picture 3”...

  • Page 29: Usb Program Transfer

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 7.7 USB Program transfer The Atoll Speed features a USB port to backup your programs to an external USB drive. It is also suitable to transfer programs from one Atoll Speed to others. The USB port is designed for the use of normal USB sticks.

  • Page 30: Product Warranty

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Do not remove the USB drive during the copy process. Do not cut off the power. After copying is successfully finished, turn off the oven. Then you can remove the USB device. 8. Product Warranty There is a 12 month warranty on spare parts.

  • Page 31: Oven Does Not Start

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 9.2 Oven does not start 1. Check the switch for the door. For safety reasons there are 3 door switches (left, right side 2 pc) 2. Check the fuse 3. Check the Safety temperature limiter 9.3 No heating 1.
  • Page 32 Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ Cleaning the Baking Chamber To clean the chamber use a brush, sponge and wet cloth to remove dirt. Especially clean the edges of the chamber. The door seal must be cleaned with a wet piece of cloth and a non-aggressive, liquid detergent.

  • Page 33: Wiring Diagram

    Operating Instructions Micro-Convection Oven Atoll Speed __________________________________________________________________________ 11. Wiring Diagram This document is property of Kolb Huizhou Ltd.
