Summary of Contents for FUJIPLA DryLam LPE3510

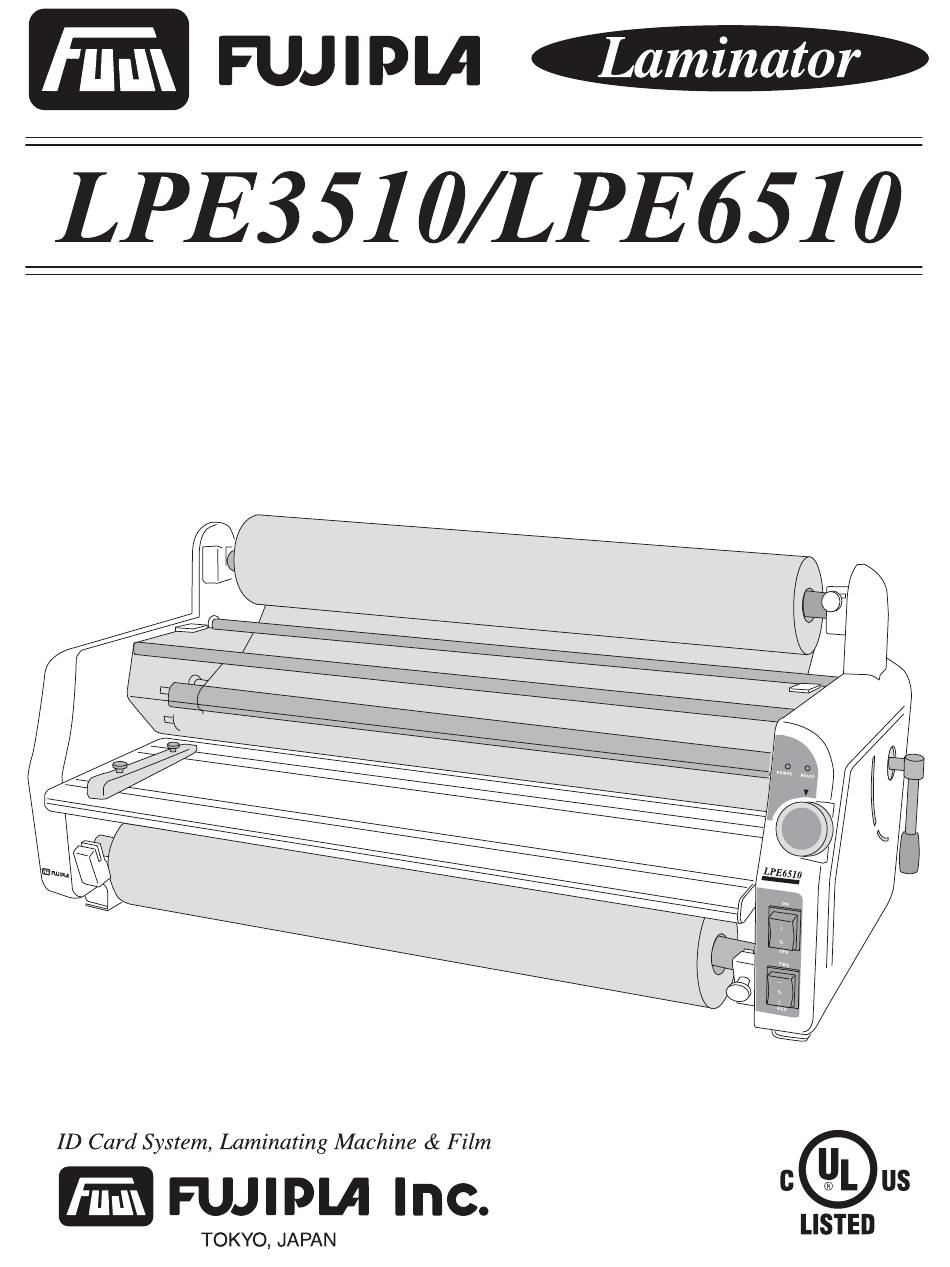

  • Page 1 Maintenance Manual...
  • Page 2 Contents Page Chapter Before starting maintenance 2-8 How to change parts 2-6 Heater Assy 7-8 Sprocket LPE3510 Exploded View 10-13 LPE3510 Parts List LPE6510 Exploded View 15-18 LPE6510 Parts List LPE6510 Wiring Diagram (120V) How to adjust heat shoe temperature Before starting maintenance Warning 1. To avoid burns, allow the machine to cool to room temperature before servicing. 2. When reassembling the machine, power should be off and the power plug disconnected from outlet. 3. Be cautious of high temperatures in the machine.
  • Page 3 1. How to change parts    1.1 To change Heater Assy (1/5)  Step 1  Remove casing  1-1  Take off the casing of both side.                      Step 2  Remove retaining rings  2-1  Take off retaining rings C-1.      *  Please take off two of them on one side,  and the other two on the opposite side.              Retaining rings C-1   2-2  Take off retaining rings C-2.           ...
  • Page 4 1.1 To change Heater Assy (2/5)  Step 3  Remove movable plate  3-1  Take off 2 spring fixer.  Spring fixer  *  Only  taking  them  off  of  the  left  side  will  be    enough.  *  Before taking off, please measure the length of  the  springs  so  that  you  can  easily  adjust  it  when you assemble again.  Measure and   register the length of the spring.        3-2  Take off the movable plate.  Movable plate * ...
  • Page 5 1.1 To change Heater Assy (3/5)  Step 4  Remove the chamber  4-1  Open Cut the heater lead line in left side.                        4-2  Take out the chamber.  4-3  Take out the chamber fixer.              Chamber fixer  Chamber       4-4  Take the thermal sensor from the chamber.                Thermal sensor  ...
  • Page 6 1.1 To change Heater Assy (4/5)  Step 5  Install new chamber.  5-1  Put  the  thermal  sensor  into  a  hole  of  new    chamber fixer.  Chamber fixer            Thermal sensor         5-2  Put the thermal sensor into the chamber hole    as shown below.  *  The  tip  of  the  thermal  sensor  come  to  the   ...
  • Page 7 1.1 To change Heater Assy (5/5)  5-4  Install the chamber to the main body.                      Step 6  Putting back the parts around side plate.  6-1  Install the movable plate.                      6-2  Install the spring fixer.  *  As  informed  in  4.1,  the  length  of  the  spring    should be set as it was. ...
  • Page 8 1.2 To change sprocket (1/2)  Step 1  Remove the left side casing  Step 2  Remove the chain  2-1  Take off screws  ①  and  ②.  2-2  Take off two screws of  ③.        ① ②     ③           2-3  Take off the joint of the chain and take off the  chain.                    Step 3  Change the sprocket ...
  • Page 9 1.2 To change sprocket (2/2)  3-2  Install new sprockets to  ①、②  and  ③.                    Step 4  Putting back the chain & screws  4-1  Install new chain.                    4-2  Tighten screws of  ①,  ②  and  ③.  *  Make  the  height  of  sprockets  of  ①,  ②  and   ...
  • Page 10 1.3 To change transformer (1/2)  Step 1  Remove the Transformer used  1-1  Disassemble the rear cover from the machine.  ---screw x 4              1-2  Unscrew  the  fixing  screw  in  sub-chassis  that  many electric parts are fixed.                1-3  Sub-chassis is equipped to machine.  After unscrew, take it out by hand.                1-4  Sub-chassis is equipped to machine.  After unscrew, take it out by hand. ...
  • Page 11 1.3 To change transformer (2/2)  Step 2  Change the sprocket  2-1  Cut  lead-wire  of  new  transformer  in  proper  length.    As  same  way,  connect  the  lead  wires  of  new  transformer and machine (use closed crimping  terminal for connection).  Lead-wire  of  primary  source:  on  the  side  of  noise filter    Lead-wire  of secondary power  source:  on  the  side of control PCB.     ...

This manual is also suitable for:

Drylam lpe6510
