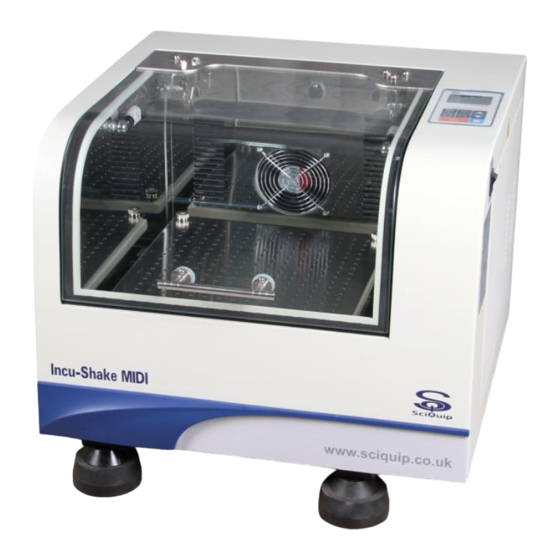

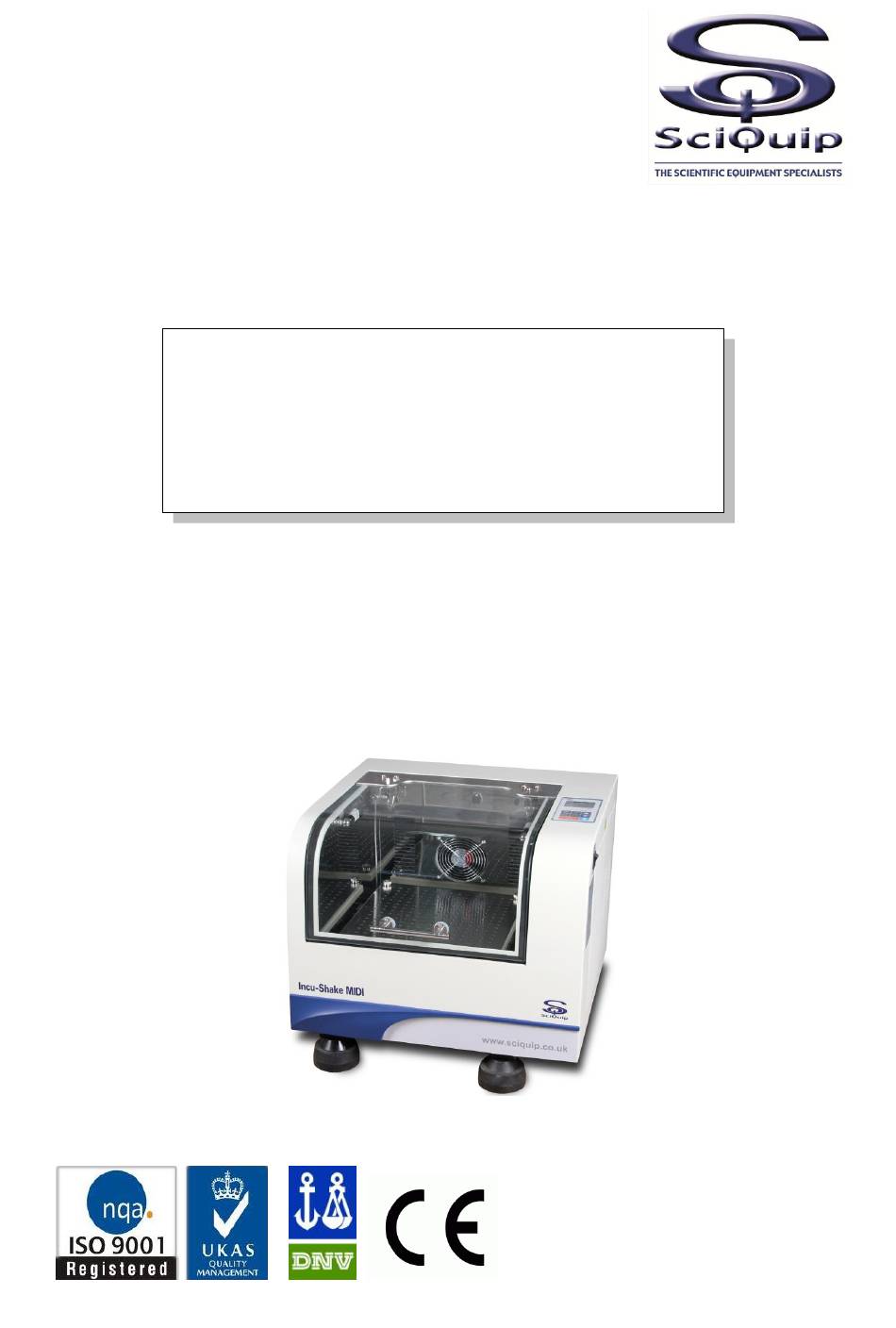

- Page 1 User’s Manual Incu-Shake series Shaking Incubator This Manual applies to: Modes: Incu-Shake MINI Incu-Shake MIDI...
- Page 2 SciQuip Incu-Shake incubators have achieved a good reputation and trust among various clients for its advanced temperature controlling technology, sound framework design, excellent molded exterior and outstanding professional workmanship. These products have been exported through most leading companies into European, American and East Asian markets.
- Page 3 Safety instruction! Please be sure to follow the instructions, which are really important for your safety. Danger! Warnings against injury and damage. 1. The electrical supply circuit to the incubator must confirm to all national and local electric codes. Check the serial-data plate for voltage, cycle, phase and amperage requirements before you connect the unit.
- Page 4 SciQuip INCU-Shake Series V2016.1.1 Attention! Instructions for optimal performance 1. Before starting your equipment, the unit must be placed horizontally on a solid, flat floor, and elevated and leveled with four foot blocks. 2. The incubator needs even heat lost on all surfaces in order to maintain small internal temperature variations.
-
Page 5: Table Of Contents
SciQuip INCU-Shake Series V2016.1.1 Table of contents Performance Parameters _____________________________________ 3 Technical Specifications _____________________________________ 4 Control Panel _____________________________________________ 5 Preparation and Start-up _____________________________________ 6 Control Mode & Clock Checking _______________________________ 7 Temperature Retaining Switch Setting __________________________ 7 Temperature, Speed, Timer Settings ____________________________ 8 Date &... -
Page 6: Performance Parameters
Performance Parameters Both the interior and exterior are made of robust materials for lifetime operations. The inner chamber is made of high quality #304 stainless steel sheets. All exposed edges are de-burred to insure no sharp edges. The exterior is ABS plastic finished with powder coated polyurethane finish, which is resistant to most chemicals and easily cleaned with mild household detergents. -
Page 7: Technical Specifications
SciQuip INCU-Shake Series V2016.1.1 Technical Specifications Model INCU-SHAKE MINI INCU-SHAKE MIDI Mode Orbital Temperature (° C) A+5 to 60 Temper. Accuracy ±0.1℃ ≤±1℃@37℃ Temper. Uniformity Tray (mm) 280*220 340x370 Shakling Diameter φ 0-50 (mm) Speed (rpm) 30-600 Capacity * *Glass dimensions may reduce max.capacity... -
Page 8: Control Panel
SciQuip INCU-Shake Series V2016.1.1 Control Panel Time button: Button to display the preset time and the status of the power-off recovery function. Press again to display the remaining time (if Timer is set). Press it to stop the acoustic alarm when needed... -
Page 9: Preparation And Start-Up
SciQuip INCU-Shake Series V2016.1.1 Set/Confirm button: Press this button to enter the menu of setting, press it at the end of the setting to save and exit.. Temperature alarm indicator: When the temperature inside the chamber is deviated over the preset alarm... -
Page 10: Control Mode & Clock Checking
Control Mode & Clock Checking 5.1. Press "Set/confirm", press the "Increase" button to "1", then press the "Set/confirm" again. The screen shows the current control mode and current date & time. 5.2. Press "Set/confirm" to exit to the home page Display current control Exit mode and time... -
Page 11: Temperature, Speed, Timer Settings
SciQuip INCU-Shake Series V2016.1.1 Temperature, Speed, Timer Settings 7.1. Press "Set/confirm", press the "Increase" button to "3", then press the "Set/confirm" again. The screen shows the current temperature preset value, press "Increase" or "Decrease" to change the value; press "Set/confirm" to save and switch to speed page, press "Increase"... -
Page 12: Date & Time Settings
Date & Time Settings 8.1. Press "Set/confirm", press the "Increase" button to "4", then press the "Set/confirm" again. The screen shows the current time clock, press "Increase" or "Decrease" to change the time; press "Set/confirm" to save and switch to "year" setting page, press "Increase"... -
Page 13: Temperature & Speed Alarm Settings
SciQuip INCU-Shake Series V2016.1.1 Temperature & Speed Alarm Settings 9.1. Temperature and speed alarm is activated when temperature or speed is deviated over limit. The deviation alarm limit can be preset as below, 9.2. Press "Set/confirm", press the "Increase" button to "5", then press the "Set/confirm"... -
Page 14: Temperature Calibration
Temperature Calibration Special Attention! Temperature of each unit has been carefully calibrated in factory before dispatch. No further calibration is needed. But if it does, do follow the calibration process strictly or consult your supplier, as wrong operation can interfere the temperature accuracy significantly. -
Page 15: Non-Volatile Memory Setting
SciQuip INCU-Shake Series V2016.1.1 Non-Volatile Memory Setting If the non-volatile memory function is active (ON), the unit will run to the originally temperature, speed and time program when the external power is recovered after a power failure. 11.1 To set the non-volatile memory function, first press the, then press the Increase button to “8”, next press the "Set/Confirm"... -
Page 16: Sum Run Time Checking
Sum Run Time Checking The total run time of current operation can be checked via following steps. Run time starts counting once "Start/Stop" button is pressed, and stops when pressed again. 13.1 Press "Set/Confirm" button and press the "Increase" button to "10", then press "Set/Confirm"... -
Page 17: Shaking Diameter Adjustment
Shaking Diameter Adjustment 15.1 Instruction of stepless adjustment (INCU-SHAKE MINI): Attention: Power supply must be disconnected before performing the following operations! These models have an adjustable shaking diameter of Ø0-50mm. To adjust it, please follow the instructions below, 15.1.1 Tools needed: M6 Allen key, M6 Socket Spanner, Gear spanner (Included in accessory pack) Structure illustrations 15.1.2 Turn off the unit, unplug the power code, open the glass door, hold platform... - Page 18 SciQuip INCU-Shake Series V2016.1.1 15.1.4 Use the M6 Allen key to loosen the inner hexagon bolt (6) on the adjusting kit. 15.1.5 Keep M6 Allen key on the hex bolt to hold the shaking base as stationary, in the meantime, loosen the M6 hexagon nut (4) with turning anti-clockwise with the socket spanner 15.1.6 Now the shaking base is free to move along in the slot of the shaking...
- Page 19 SciQuip INCU-Shake Series V2016.1.1 Chart of ratio between speed and shaking diameter. 16.2.1. Turn off the unit, unplug the power code, open the glass door, hold platform tray from the bottom firmly and pull the whole tray kit out. (you do need some strength) 16.2.2.
-
Page 20: Trouble Shootings
Trouble Shootings Error Indicator Possible cause Corrections Power supply is not Check the power supply system to see if connected there is voltage on the line Plug has no access to Plug in firmly Power on , socket No display The power switch has Turn on the power switch on the right not been turned on. - Page 21 SciQuip INCU-Shake Series V2016.1.1 The door switch has Check the door to see if it is closed firmly The shaking not yet made contact platform does The platform is blocked Remove the platform and clear the object not work with an object at the...
-
Page 22: Electronic Control System
Electronic Control System...
