Summary of Contents for Weaver W-1500

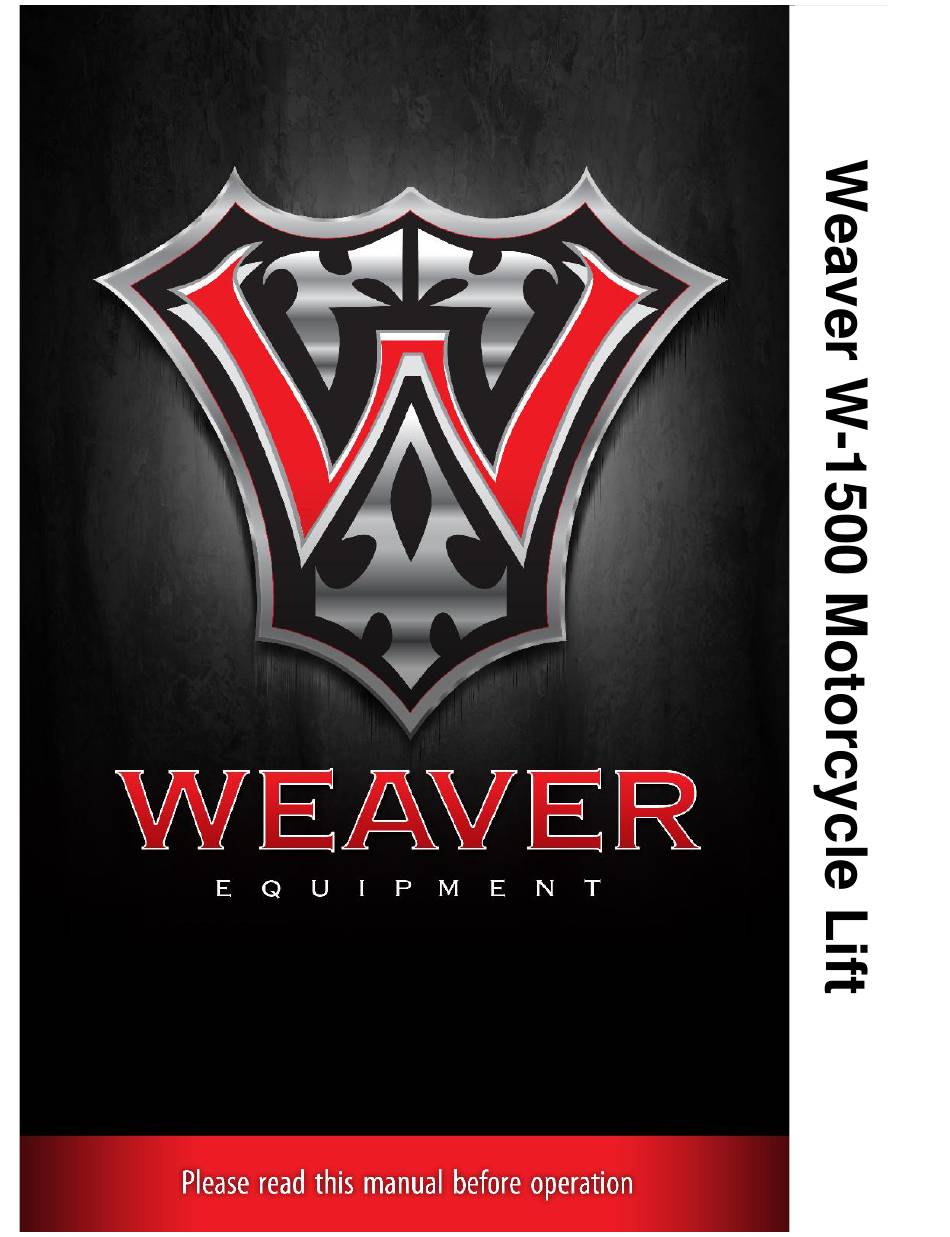

- Page 2 W-1500 Installation & Operation Manual 1500 lb. Capacity Motorcycle Lift Derek Weaver Company, Inc. 2944 SE Loop 820 Fort Worth, TX 76140 817-560-9510 www.derekweaver.com...
- Page 3 W-1500 Assembly Instructions List of Parts in crate 1. 1 Piece Main lift mostly assembled a. Hydraulic hose is attached to cylinder and has orange protector on the end of the hose. The hose has the male piece of high pressure connector to connect hose to pump.
- Page 4 b. If the vent is left closed the operation of the lift will be negatively impacted. c. When the lift is not in use shut the vent. 10. Depress the “PUMP” end of the pump pedal a. The pump will engage and begin to raise the lift. 11.
-
Page 5: Stabilizer Bar
Approach Ramps The approach ramps hook into the holes in the main body of the lift and the holes in the side extensions of the lift. Stabilizer Bar 1. The stabilizer bar is placed through the base of the lift toward the rear. It goes through a hole. - Page 6 Lift Operation 1. Lift must be fully lower and service bay clear of al personnel before the vehicle is loaded onto the lift. 2. Motorcycle Loading a. Put Motorcycle onto lift. Be sure motorcycle is center on lift from side to side. b.
- Page 8 Part No. Description Quantity Side Ramp Center Ramp Removable plate Side Extension Platform Vise Assembly Vise Handle Stop Plate Front Extension Extension Support Bar M10 Bolt Base Assembly Stabilizer Bar Power Unit Caster Cover Cylinder...
- Page 9 Pump Parts Breakdown...
-
Page 10: Flow Restrictor
Flow Restrictor C u s t o m e r S u p p l i e d Compressed Air Input Hose from lift connects here The flow restrictor is to control the lowering speed of the motorcycle lift table. The flow restrictor is a good solution to prevent rapid descent.
