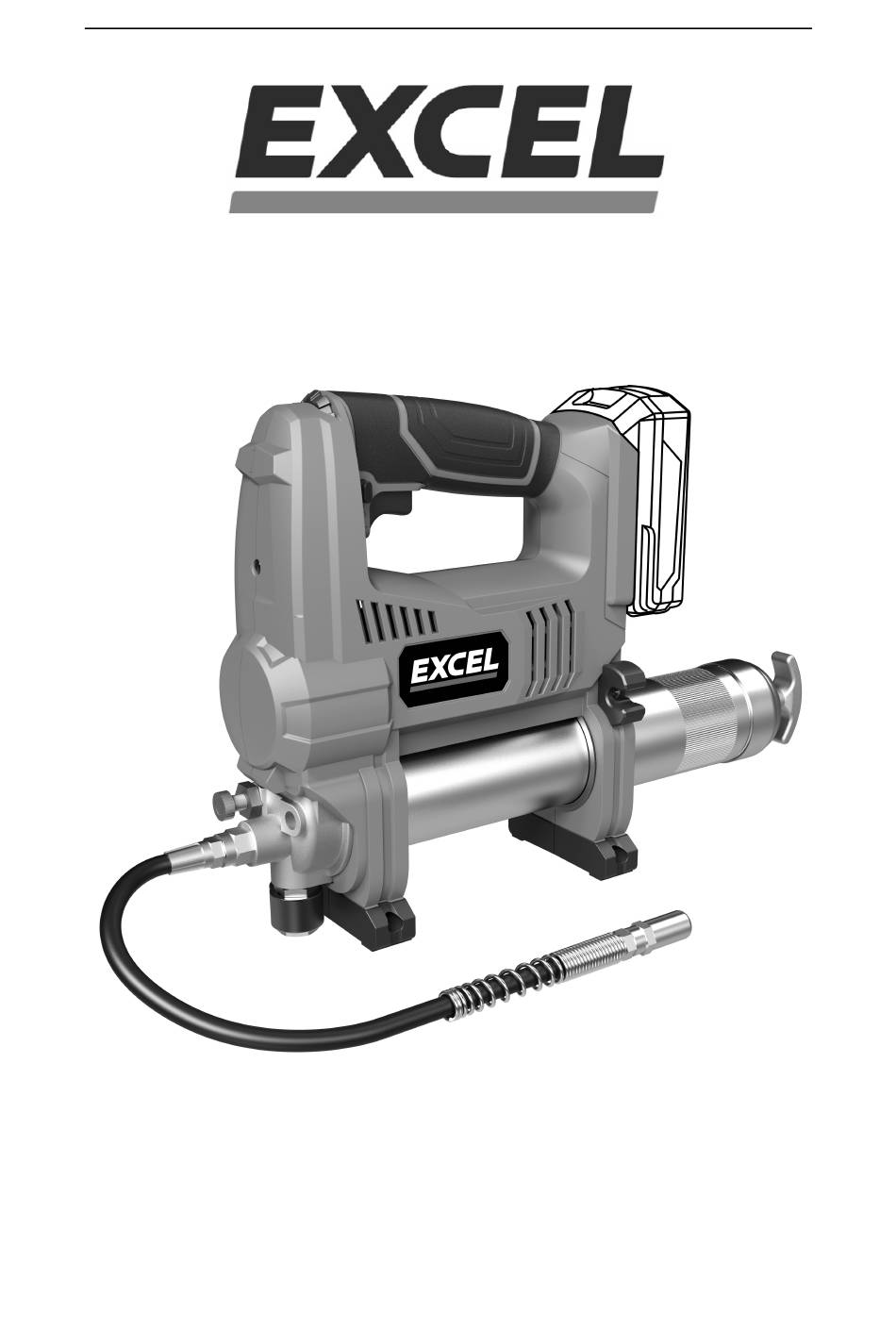

- Page 1 Original Instructions Cordless Grease gun 18V 30368 INSTRUCTION MANUAL...
-
Page 2: Description Of The Symbols
Original Instructions DESCRIPTION OF THE SYMBOLS WARNING – To reduce the risk of injury, user must read instruction manual. Before any use, refer to the corresponding section in this user manual. Complies with relevant European regulations The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. - Page 3 Original Instructions On adapter Read instruction manual before any use. Class II transformer. For indoor use only. GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
- Page 4 Original Instructions d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
- Page 5 Original Instructions 4. Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
- Page 6 Original Instructions d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified.
- Page 7 Original Instructions • WARNING:Output can be at high pressure.Do not direct discharge at yourself or others. • WARNING:The grease gun may generate high pressure-up to10,000 psi(690bar). Always wear gloves during operation.Keep hands clear of the exposed rubber portion of the hose. WARNING:Risk of fire.Grease may be flammable.Do not expose to fire or high temperatures.
- Page 8 Original Instructions Do not place the battery near a fire or in a place where the temperature is • high. Do not immerse the tool in water or any other liquid. This can damage the • battery prematurely. When transporting batteries, make sure their contacts are protected and •...
-
Page 9: Intended Use
Original Instructions charger than the one supplied. Do not place any object on top of the charger as it could cause overheating. • Do not place the charger near any heat source. Pull on the charger to disconnect it from the power source. Do not pull on •... -
Page 10: List Of Main Parts
Original Instructions LIST OF MAIN PARTS Variable speed trigger switch 2 Lock off button ON/OFF trigger switch LED work light Purge valves Flexible hose Flexible hose coupler Grease tube Cooling hole Grease tube cape Grease tube handle Hose bracket Safety valve Battery pack(excluded) TECHNICAL SPECIFICATIONS Product description... -
Page 11: Noise/Vibration Information
Original Instructions Max flow rate 282g/min Hose Length 76cm Barrel Capacity 16 oz.bulk or 14.5 oz.cartridge Sound pressure level L =3dB(A)) 76 dB Sound power level L =3dB(A)) 87 dB Level of vibration a (K=1,5m/s 0,5 m/s Battery and Charger a)BA-1820B,Li-ion 18V d.c. - Page 12 Original Instructions patterns avoid vibration risk. Vibration risk limitation suggestions: 1) wear glove during operation 2) limit operating time and shorten trigger time. Before using the equipment Battery charger (Fig.1) The lithium-ion battery can be charged at any time and will not develop a “memory”...
- Page 13 Original Instructions battery is hot after continuous use in the tool, allow it to cool down to room temperature before charging. This will extend the life of your batteries. WARNING: Always disconnect the battery pack from the tool before any assembly, adjustments or changing accessories.
- Page 14 Original Instructions Variable speed trigger switch LOCK-OFF BUTTON AND TRIGGER SWITCH Your grease gun is equipped with a lock-off button(2). To lock the trigger switch,press the lock-off button.Always lock the trigger switch(3) when carrying or storing the tool to eliminate unintentional starting. The lock-off button is open to indicate when the switch is in its unlocked position.
-
Page 15: Assembly And Adjustments
Original Instructions WARNING:The grease gun may generate high pressure.Do not remove or tamper with the pressure relief valve.Serious injury may occur. ASSEMBLY AND ADJUSTMENTS WARNING:To reduce the risk of serious personal injury, turn tool off, push the lock-off button to the OFF position, and remove the battery pack before making any adjustments or removing/installing attachments or accessories.An accidental start-up can cause injury. - Page 16 Original Instructions Removing Empty grease cartridge 1. Pull the grease tube handle out as far as it will go, then secure the grease tube rod into the retaining slot by moving the rod to the side. Ensure the rod is placed securely in the slot to prevent it from disengaging.
-
Page 17: Trouble Shotting
Original Instructions trigger and remove the coupler from the grease fitting.If the coupler does not release,there may still be residual pressure so it can be removed from the coupling.If the coupler leaks excessively or does not hold on to the grease fitting,it should be replaced. - Page 18 Original Instructions Storing Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand. Pack the device well or use the original packaging in order to avoid transit damage.
