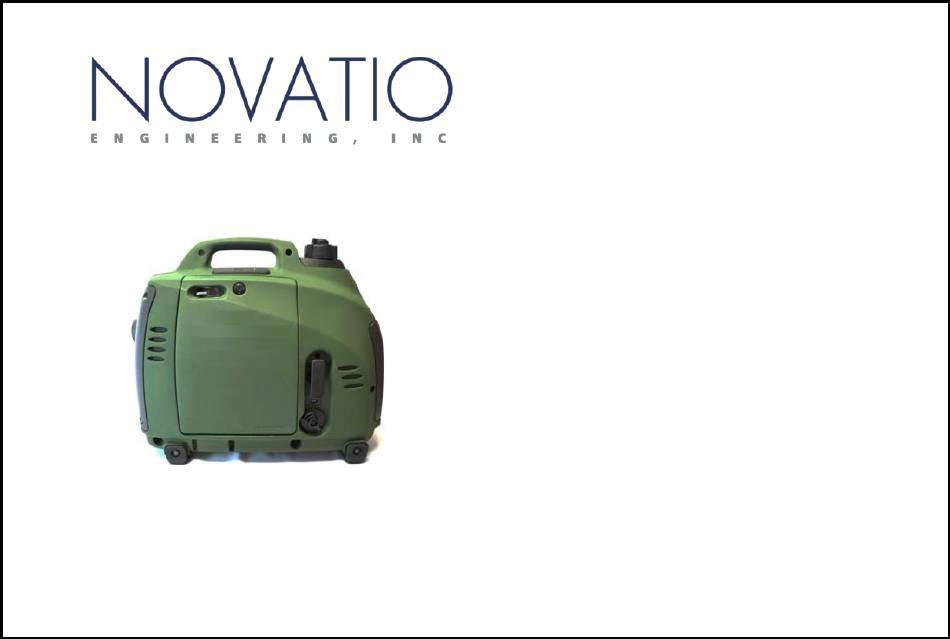

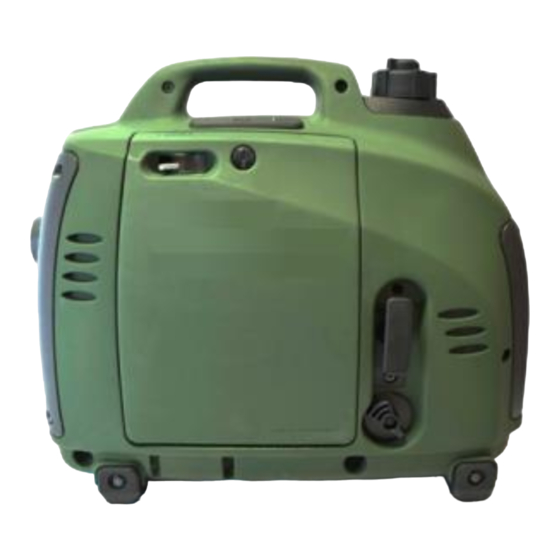

- Page 1 266 Calvary Street Waltham MA 02453 QUICK START GUIDE www.novatioengineering.com TROUBLESHOOTING CONTACT INFO 900W DEFENDER MAP0002000-E...
- Page 2 YSTEM PECIFICATIONS Honda EU!000i Platform Technology 33Pounds Dry Weight 17.8” x 11.5” x 14.9” System Dimensions L x W x H 120V 0-900 W continuous sea level AC Output 120V 0-750W W continuous above 4000 ft, 104°F 120V 1000W Peak Operating Range 0°F - 125°F Fuel Tank...
-
Page 3: Before Operation
BEFORE OPERATION Prior to starting engine, inspect the following every time: Refer to manual for detailed instructions. Check Oil – A low oil level will cause the Oil Alert system to shut down the engine. Check Air Filter – A dirty air filter will restrict air flow to the engine, reducing engine and generator performance. -
Page 4: Starting Engine
STARTING ENGINE 1. Turn FUEL TANK CAP VENT LEVER to ‘ON’ position. 4. Turn ENGINE SWITCH to ‘ON ’ position. 2. Turn ECO-THROTTLE SWITCH to ‘OFF’ position. 5. Ensure fuel selector switch is set to appropriate fuel. 3. Make sure CHOKE LEVER is in ‘open’ position to start. 6. - Page 5 STARTING ENGINE (cont’d) 1. If engine does not speed up after several seconds , briefly turn 3. Choke can typically be opened and some load applied at less than 1 CHOKE LEVER to ‘CLOSED’ position. minute after start-up, slightly longer if ambient temperatures are cold. If opened or too large a load applied too early, engine operation can become unsteady.
- Page 6 STARTING ENGINE (USING E-start) 4. Turn ENGINE SWITCH to ‘ON ’ position. 1. Plug Amphenol connector into front of generator. 2. Turn FUEL TANK CAP VENT LEVER to ‘ON’ position. 5. Ensure fuel selector switch is set to appropriate fuel. 3.
-
Page 9: Stopping Engine
STOPPING ENGINE Turn off or disconnect all appliances connected to the generator. 1. Turn ENGINE SWITCH to the ‘OFF’ position. 2. Allow engine to cool, turn FUEL TANK CAP VENT to ‘OFF’ position. - Page 10 AC OPERATION 1. Ensure that OUTPUT INDICATOR is illuminated. 2. Plug appliance into the receptacle.
- Page 11 DC OPERATION The NEI-1001-H-E has not been approved for charging external batteries, so caution must be used with generator DC output. Please contact Novatio for support if DC power is required.
-
Page 12: Maintenance And Service
Otherwise, consult Novatio Engineering for recommendations applicable to your individual needs and use. -
Page 13: Engine Oil
If generator is operated under unusual conditions, refer to complete manual. Otherwise, consult Novatio Engineering . [1] If operating generator in temperatures below 20°F, or if average load is less than 500W, change oil every 25 hours. If engine exhaust is carrying excessive white smoke, change oil. -
Page 14: Engine Oil Change
ENGINE OIL CHANGE 1. Open MAINTENANCE COVER carefully, tilting cover away from 3. With a suitable container in place, pour the oil by tipping the engine. engine toward the OIL FILLER NECK. 2. Tilt engine away from user (away from OIL FILLER NECK) to avoid 4. -
Page 15: Troubleshooting
Remove and dry off spark plug Other Contact Novatio Engineering, Inc. 2. Engine operating but not producing AC power GFCI disconnected Reset GFCI Overload Reduce load (if load is already below 1250W, contact Novatio Engineering) See troubleshooting for “rough operation and unsteady AC voltage” Other... - Page 16 Other Contact Novatio Engineering 4. Unsteady AC voltage or engine shuts down Low fuel levels Add fuel to fuel tank Overload Reduce load (if load is already below 1250W, contact Novatio Engineering) Engine in “Eco-mode” Set ECO-MODE SWITCH to ‘OFF’...
- Page 17 CONTACT Mike Schuler mschuler@novatioengineering.com 617 440 4410...
