How do I operate the Frigidaire FLCE752CAW washer and dryer combo?

To operate the washer:Sort laundry into loads based on recommended cycle, water temperature, fabric type, and soil level.Prepare items for washing by emptying pockets, brushing off lint, closing zippers, and placing delicates in a mesh bag.Pretreat stains as needed.Add liquid or powder detergent to the wash tub before adding the load. If using detergent packs, add them directly to the empty drum.Add other wash products like water conditioners if desired.Add bleach if desired, to the bleach dispenser or directly to the tub for powdered bleach.Add laundry load to the wash tub one item at a time, ensuring the dry load level is not higher than the upper row of holes.Add liquid fabric softener to the final rinse if desired.Select the washing cycle and settings using the WASHER cycle selector. Available cycles include Normal, Activewear, Delicates, Quick Wash, Rinse & Spin, Soak, Light Soil, Colors, Bulky, and Heavy Soil. Adjust Wash Temp and Water Level as needed. 1Close the washer lid and press the WASHER START|PAUSE button to begin. The lid will lock. 1Remove items promptly when the cycle is completed.To operate the dryer: Prepare load for drying by sorting items by fabric, weight, and construction. Check for stains and ensure buckles, buttons, and zippers are closed. Check that the lint filter is clean and in place before each load. Load the dryer loosely and close the door. Do not overload. Select the drying cycle and settings using the DRYER cycle selector. Available cycles include Normal, Activewear, Bulky, Delicates, Quick Dry, Timed Dry, and Air Fluff. Adjust Dry Temp as needed. Press the DRYER START|PAUSE button to begin. The dryer will not operate if the door is open. Remove items immediately when the cycle completes. For more information, see pages 27, 28, 29, 31, 32, 33, 34, 35, 36, 37 and 38 of the manual.

What should I do if my Frigidaire FLCE752CAW is not draining or spinning?

If your Frigidaire FLCE752CAW is not draining or spinning, the possible causes are a kinked or clogged drain hose or a lid lock malfunction. To resolve these issues, you should:Clean and straighten the drain hose.If the lid lock malfunctions, do not bypass it and instead call your authorized service provider. For more information, see page 50 of the manual.

Why is my Frigidaire FLCE752CAW not draining water?

If the washer is not draining water or drains slowly, the possible causes are a kinked or clogged drain hose or a lid lock malfunction. To resolve these issues, you should:Clean and straighten the drain hose.If the lid lock malfunctions, do not bypass it and instead call your authorized service provider. For more information, see page 50 of the manual.

Why is my Frigidaire FLCE752CAW leaking water?

If your Frigidaire FLCE752CAW is leaking water, the possible causes are loose fill hose connections at the faucet or washer or clogged house drain pipes. To resolve these issues, you should:Check and tighten hose connections and ensure rubber sealing washers are provided.Unclog drain pipes and contact a plumber if necessary. For more information, see page 50 of the manual.

Why is my Frigidaire FLCE752CAW making loud noises?

If your appliance is making loud noises, the issue could be:Rattling and clanking noise may be caused by foreign objects like coins or safety pins in the drum or pump. Stop the washer and check the drum. If the noise continues after restarting, objects may be in the pump, and you should contact an authorized service provider. To prevent this, fasten fasteners and turn items inside out.Thumping sound can occur with heavy wash loads, which is usually normal. If the thumping continues, the washer might be out of balance. Stop the washer and redistribute the wash load.Vibrating noise indicates the washer is not resting firmly on the floor or the wash load is unevenly distributed. Move the washer so it rests firmly on the floor and adjust the leveling legs. Redistribute the wash load. For more information, see page 47 of the manual.

What can cause clothes to be too wet after the spin cycle in the Frigidaire FLCE752CAW?

If clothes are too wet after the spin cycle, the washer may be overloaded or the load may be out of balance. To address this:Do not overload the washer.Rearrange the load to allow for proper spinning. For more information, see page 49 of the manual.

How can I prevent odors in my Frigidaire FLCE752CAW laundry center?

To prevent odors in your laundry center:Remove items from the washer as soon as the cycle ends, as excess odors may develop in items left in the washer.Dry the washer top, the area around the lid opening, and the underside of the lid after each use, ensuring these areas are dry before closing the lid.If the dryer drum becomes stained from non-colorfast fabrics, clean the drum with a damp cloth and a mild liquid household cleanser, then remove cleanser residue before drying the next load. For more information, see page 41 of the manual.

Why is my Frigidaire FLCE752CAW beeping?

The appliance may beep for several reasons depending on the action taken:When you press the WASHER START|PAUSE button once to begin the wash cycle, the unit will emit two short beeps.When you press the WASHER START|PAUSE button once while the washer is running to pause the wash cycle, the unit will emit one short beep.When you press the WASHER CANCEL button to cancel the wash cycle, the unit will emit one long beep.When you press the DRYER START|PAUSE button once to begin the drying cycle, the unit will emit one beep.When you open the dryer door with a cycle running, you will hear two beeps.Additionally, the chime feature, which provides sound from button presses and end of cycle reminders, may have been muted. To unmute it, press and hold the Wash Temp button for 3 seconds for the washer or the DRY Temp button for 3 seconds for the dryer. For more information, see pages 29, 30, 33 and 48 of the manual.

Why won't my Frigidaire FLCE752CAW start?

If your Frigidaire FLCE752CAW won't start, consider the following:For the washer, the lid may be open. Close the washer lid, as it will not operate when open. The electrical power cord may not be plugged in or the connection may be loose. Ensure the plug fits tightly in the wall outlet. A house fuse may be blown, a circuit breaker tripped, or a power outage may have occurred. Reset the circuit breaker or replace the fuse. Do not increase fuse capacity; if it's a circuit overload, have a qualified electrician correct it. If it's a power outage, contact your local electric company. The water supply may not be turned on; turn on the water supply faucets. The motor may be overheated; wait for the motor to cool down before attempting to restart.For the dryer, the electrical power cord may not be securely plugged in or the plug may be loose. Ensure the plug fits tightly in the wall outlet. A house fuse may be blown or a circuit breaker tripped. Reset the circuit breaker or replace the fuse. Ensure the electrical line is not overloaded. A thermal limiter may be tripped; call an authorized service person for replacement. For more information, see page 47 of the manual.

How often should I clean the lint filter on my Frigidaire FLCE752CAW dryer?

You should clean the lint filter before or after each load. The Clean Lint Filter LED will illuminate after each drying cycle as a reminder to clean the filter. This is not a warning of a clogged exhaust duct or filter. For more information, see pages 5, 31, 33 and 41 of the manual.

Why is my Frigidaire FLCE752CAW not filling with water?

If the washer is not filling with water or fills slowly, the possible causes are:The washer lid is open. Close the washer lid, as the washer will not operate when the lid is open.The water supply is not adequate in the area. Check another faucet in the house and wait until the water supply and pressure increase.The water supply faucets are not completely open. Fully open the hot and cold faucets.Water is being used elsewhere in the house. Water pressure must be at least 10 psi (69 kPa). Avoid running water elsewhere while the washer is filling.Water inlet hoses are kinked. Straighten the hoses. For more information, see page 50 of the manual.

What is the best way to clean the drum of the Frigidaire FLCE752CAW washer?

To clean the drum of the washer, if a dirty residue remains after washing extremely soiled items, wipe the tub with a nonabrasive household cleanser and rinse thoroughly with water. Additionally, if the base plate or tub becomes stained from fabric dye, clean these parts with a nonabrasive household cleanser to prevent dye transfer to future loads.

What wash and dry cycles are available on the Frigidaire FLCE752CAW?

The available wash cycles are:Normal: For normally soiled cottons, linens, towels, shirts, denims, and mixed loads.Activewear: For small loads of light-weight, synthetic apparel with light soil and perspiration.Delicates: For lightly soiled knits and delicates requiring gentle washing.Quick Wash: For small, lightly soiled loads in 35 minutes.Rinse & Spin: For a cold water rinse or to add fabric softener.Soak: To soak heavily soiled and stained items before washing.Light Soil: For lightly soiled cottons, linens, towels, shirts, denims, and mixed loads.Colors: For lightly soiled, dark, or highly dyed fabrics.Heavy Soil: For heavily soiled cottons, linens, towels, shirts, denims, and mixed loads.Bulky: For bulky items such as comforters, blankets, mattress pads, and sleeping bags.The available dry cycles are: Normal: For everyday fabrics including cottons, linens, and sheets. Bulky: For bulky items such as comforters, blankets, mattress pads, and sleeping bags. Delicates: For cottons, blends, and permanent press items with a no-iron finish. Activewear: For lightweight synthetic athletic apparel. Quick Dry: To quickly dry a small load (approx. 25 minutes). Timed Dry: Preset cycles of 15, 30, 60, or 90 minutes. Air Fluff: For loads requiring air drying only, with no heat.

How do I properly level the Frigidaire FLCE752CAW laundry center?

To properly level the laundry center and prevent excessive noise and vibration:Place a level on top of the washer lid with the laundry center within 4 feet (1 m) of its final location.Use adjustable pliers to adjust the leveling legs so the laundry center is level front-to-rear and side-to-side, and stable corner-to-corner.Press down on alternate corners and sides to check for any movement. Adjust the appropriate leg(s) so the laundry center sits solidly on the floor on all four legs. Keep the leveling leg extension at a minimum for best performance of the washer. For more information, see page 24 of the manual.

How do I adjust the water temperature settings on the Frigidaire FLCE752CAW?

You can adjust the water temperature settings by pressing the Wash Temp button to cycle through the available temperatures until the desired setting is selected. The LED will indicate the current selection. Available settings include Hot, Warm, and Cold. The actual temperature may vary depending on fiber content, colorfastness, soil level, distance from the water heater, water usage in other parts of the home, and seasonal ground water temperature. For more information, see page 28 of the manual.

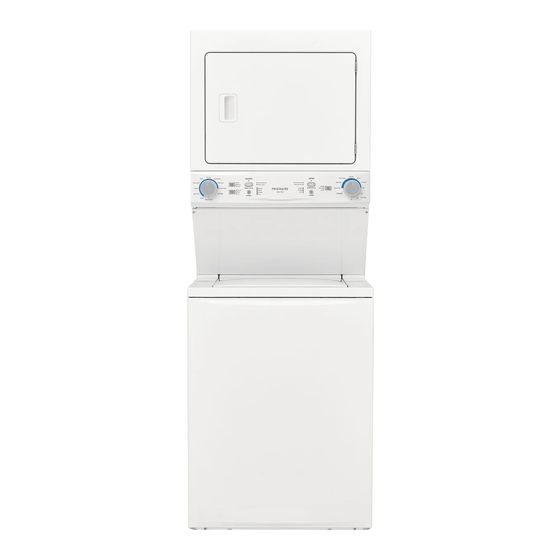

Frigidaire FLCE752CAW Use & Care Manual

Hide thumbs

Introduction .......................................................2

Important Safety Information ....................3

Features ..............................................................8

Pre-Installation Requirements ....................9

Installation ....................................................... 18

Controls And Settings ................................ 27

Frigidaire.com USA 1-800-374-4432

LAUNDRY CENTER

use

Operating Instructions ............................... 34

Stain Removal Guide................................... 39

Care and Cleaning ........................................ 41

Troubleshooting ..........................................44

Limited Warranty .......................................... 51

A11271204 (October 2020)

Frigidaire.ca Canada 1-800-265-8352

care

Table of Contents

How do I operate the Frigidaire FLCE752CAW washer and dryer combo?
To operate the washer:
1. Sort laundry into loads based on recommended cycle, water temperature, fabric type, and soil level.
2. Prepare items for washing by emptying pockets, brushing off lint, closing zippers, and placing delicates in a mesh bag.
3. Pretreat stains as needed.
4. Add liquid or powder detergent to the wash tub before adding the load. If using detergent packs, add them directly to the empty drum.
5. Add other wash products like water conditioners if desired.
6. Add bleach if desired, to the bleach dispenser or directly to the tub for powdered bleach.
7. Add laundry load to the wash tub one item at a time, ensuring the dry load level is not higher than the upper row of holes.
8. Add liquid fabric softener to the final rinse if desired.
9. Select the washing cycle and settings using the WASHER cycle selector. Available cycles include Normal, Activewear, Delicates, Quick Wash, Rinse & Spin, Soak, Light Soil, Colors, Bulky, and Heavy Soil. Adjust Wash Temp and Water Level as needed. 1
10. Close the washer lid and press the WASHER START|PAUSE button to begin. The lid will lock. 1
11. Remove items promptly when the cycle is completed.
To operate the dryer:
1. Prepare load for drying by sorting items by fabric, weight, and construction. Check for stains and ensure buckles, buttons, and zippers are closed.
2. Check that the lint filter is clean and in place before each load.
3. Load the dryer loosely and close the door. Do not overload.
4. Select the drying cycle and settings using the DRYER cycle selector. Available cycles include Normal, Activewear, Bulky, Delicates, Quick Dry, Timed Dry, and Air Fluff. Adjust Dry Temp as needed.
5. Press the DRYER START|PAUSE button to begin. The dryer will not operate if the door is open.
6. Remove items immediately when the cycle completes.
For more information, see pages 27, 28, 29, 31, 32, 33, 34, 35, 36, 37 and 38 of the manual.
Was this helpful?
What should I do if my Frigidaire FLCE752CAW is not draining or spinning?
If your Frigidaire FLCE752CAW is not draining or spinning, the possible causes are a kinked or clogged drain hose or a lid lock malfunction. To resolve these issues, you should:
- Clean and straighten the drain hose.
- If the lid lock malfunctions, do not bypass it and instead call your authorized service provider.
For more information, see page 50 of the manual.
Was this helpful?
Why is my Frigidaire FLCE752CAW not draining water?
If the washer is not draining water or drains slowly, the possible causes are a kinked or clogged drain hose or a lid lock malfunction. To resolve these issues, you should:
- Clean and straighten the drain hose.
- If the lid lock malfunctions, do not bypass it and instead call your authorized service provider.
For more information, see page 50 of the manual.
Was this helpful?
Why is my Frigidaire FLCE752CAW leaking water?
If your Frigidaire FLCE752CAW is leaking water, the possible causes are loose fill hose connections at the faucet or washer or clogged house drain pipes. To resolve these issues, you should:
- Check and tighten hose connections and ensure rubber sealing washers are provided.
- Unclog drain pipes and contact a plumber if necessary.
For more information, see page 50 of the manual.
Was this helpful?
Why is my Frigidaire FLCE752CAW making loud noises?
If your appliance is making loud noises, the issue could be:
- Rattling and clanking noise may be caused by foreign objects like coins or safety pins in the drum or pump. Stop the washer and check the drum. If the noise continues after restarting, objects may be in the pump, and you should contact an authorized service provider. To prevent this, fasten fasteners and turn items inside out.
- Thumping sound can occur with heavy wash loads, which is usually normal. If the thumping continues, the washer might be out of balance. Stop the washer and redistribute the wash load.
- Vibrating noise indicates the washer is not resting firmly on the floor or the wash load is unevenly distributed. Move the washer so it rests firmly on the floor and adjust the leveling legs. Redistribute the wash load.
For more information, see page 47 of the manual.
Was this helpful?
What can cause clothes to be too wet after the spin cycle in the Frigidaire FLCE752CAW?
If clothes are too wet after the spin cycle, the washer may be overloaded or the load may be out of balance. To address this:
- Do not overload the washer.
- Rearrange the load to allow for proper spinning.
For more information, see page 49 of the manual.
Was this helpful?
How can I prevent odors in my Frigidaire FLCE752CAW laundry center?
To prevent odors in your laundry center:
- Remove items from the washer as soon as the cycle ends, as excess odors may develop in items left in the washer.
- Dry the washer top, the area around the lid opening, and the underside of the lid after each use, ensuring these areas are dry before closing the lid.
- If the dryer drum becomes stained from non-colorfast fabrics, clean the drum with a damp cloth and a mild liquid household cleanser, then remove cleanser residue before drying the next load.
For more information, see page 41 of the manual.
Was this helpful?
Why is my Frigidaire FLCE752CAW beeping?
The appliance may beep for several reasons depending on the action taken:
- When you press the WASHER START|PAUSE button once to begin the wash cycle, the unit will emit two short beeps.
- When you press the WASHER START|PAUSE button once while the washer is running to pause the wash cycle, the unit will emit one short beep.
- When you press the WASHER CANCEL button to cancel the wash cycle, the unit will emit one long beep.
- When you press the DRYER START|PAUSE button once to begin the drying cycle, the unit will emit one beep.
- When you open the dryer door with a cycle running, you will hear two beeps.
Additionally, the chime feature, which provides sound from button presses and end of cycle reminders, may have been muted. To unmute it, press and hold the Wash Temp button for 3 seconds for the washer or the DRY Temp button for 3 seconds for the dryer.

For more information, see pages 29, 30, 33 and 48 of the manual.
Was this helpful?
Why won't my Frigidaire FLCE752CAW start?
If your Frigidaire FLCE752CAW won't start, consider the following:
- For the washer, the lid may be open. Close the washer lid, as it will not operate when open. The electrical power cord may not be plugged in or the connection may be loose. Ensure the plug fits tightly in the wall outlet. A house fuse may be blown, a circuit breaker tripped, or a power outage may have occurred. Reset the circuit breaker or replace the fuse. Do not increase fuse capacity; if it's a circuit overload, have a qualified electrician correct it. If it's a power outage, contact your local electric company. The water supply may not be turned on; turn on the water supply faucets. The motor may be overheated; wait for the motor to cool down before attempting to restart.
- For the dryer, the electrical power cord may not be securely plugged in or the plug may be loose. Ensure the plug fits tightly in the wall outlet. A house fuse may be blown or a circuit breaker tripped. Reset the circuit breaker or replace the fuse. Ensure the electrical line is not overloaded. A thermal limiter may be tripped; call an authorized service person for replacement.
For more information, see page 47 of the manual.
Was this helpful?
How often should I clean the lint filter on my Frigidaire FLCE752CAW dryer?

You should clean the lint filter before or after each load. The Clean Lint Filter LED will illuminate after each drying cycle as a reminder to clean the filter. This is not a warning of a clogged exhaust duct or filter.

For more information, see pages 5, 31, 33 and 41 of the manual.

Was this helpful?
Why is my Frigidaire FLCE752CAW not filling with water?
If the washer is not filling with water or fills slowly, the possible causes are:
- The washer lid is open. Close the washer lid, as the washer will not operate when the lid is open.
- The water supply is not adequate in the area. Check another faucet in the house and wait until the water supply and pressure increase.
- The water supply faucets are not completely open. Fully open the hot and cold faucets.
- Water is being used elsewhere in the house. Water pressure must be at least 10 psi (69 kPa). Avoid running water elsewhere while the washer is filling.
- Water inlet hoses are kinked. Straighten the hoses.
For more information, see page 50 of the manual.
Was this helpful?
What is the best way to clean the drum of the Frigidaire FLCE752CAW washer?

To clean the drum of the washer, if a dirty residue remains after washing extremely soiled items, wipe the tub with a nonabrasive household cleanser and rinse thoroughly with water. Additionally, if the base plate or tub becomes stained from fabric dye, clean these parts with a nonabrasive household cleanser to prevent dye transfer to future loads.

Was this helpful?
What wash and dry cycles are available on the Frigidaire FLCE752CAW?
The available wash cycles are:
- Normal: For normally soiled cottons, linens, towels, shirts, denims, and mixed loads.
- Activewear: For small loads of light-weight, synthetic apparel with light soil and perspiration.
- Delicates: For lightly soiled knits and delicates requiring gentle washing.
- Quick Wash: For small, lightly soiled loads in 35 minutes.
- Rinse & Spin: For a cold water rinse or to add fabric softener.
- Soak: To soak heavily soiled and stained items before washing.
- Light Soil: For lightly soiled cottons, linens, towels, shirts, denims, and mixed loads.
- Colors: For lightly soiled, dark, or highly dyed fabrics.
- Heavy Soil: For heavily soiled cottons, linens, towels, shirts, denims, and mixed loads.
- Bulky: For bulky items such as comforters, blankets, mattress pads, and sleeping bags.
The available dry cycles are:
- Normal: For everyday fabrics including cottons, linens, and sheets.
- Bulky: For bulky items such as comforters, blankets, mattress pads, and sleeping bags.
- Delicates: For cottons, blends, and permanent press items with a no-iron finish.
- Activewear: For lightweight synthetic athletic apparel.
- Quick Dry: To quickly dry a small load (approx. 25 minutes).
- Timed Dry: Preset cycles of 15, 30, 60, or 90 minutes.
- Air Fluff: For loads requiring air drying only, with no heat.
Was this helpful?
How do I properly level the Frigidaire FLCE752CAW laundry center?
To properly level the laundry center and prevent excessive noise and vibration:
1. Place a level on top of the washer lid with the laundry center within 4 feet (1 m) of its final location.
2. Use adjustable pliers to adjust the leveling legs so the laundry center is level front-to-rear and side-to-side, and stable corner-to-corner.
3. Press down on alternate corners and sides to check for any movement. Adjust the appropriate leg(s) so the laundry center sits solidly on the floor on all four legs. Keep the leveling leg extension at a minimum for best performance of the washer.
For more information, see page 24 of the manual.
Was this helpful?
How do I adjust the water temperature settings on the Frigidaire FLCE752CAW?

You can adjust the water temperature settings by pressing the Wash Temp button to cycle through the available temperatures until the desired setting is selected. The LED will indicate the current selection. Available settings include Hot, Warm, and Cold. The actual temperature may vary depending on fiber content, colorfastness, soil level, distance from the water heater, water usage in other parts of the home, and seasonal ground water temperature.

For more information, see page 28 of the manual.

Was this helpful?

Need help?

Do you have a question about the FLCE752CAW and is the answer not in the manual?

Questions and answers

Summary of Contents for Frigidaire FLCE752CAW

Page 1: Table Of Contents
Important Safety Information ....3 Stain Removal Guide........39 Features ..............8 Care and Cleaning ........41 Pre-Installation Requirements ....9 Troubleshooting ..........44 Installation ............18 Limited Warranty .......... 51 Controls And Settings ........ 27 A11271204 (October 2020) Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352...
Page 2: Introduction
Welcome to our Model Number Serial Number Thank you for bringing Frigidaire into your home! We see your purchase as the Purchase Date beginning of a long relationship together. This manual is your resource for the Use &...
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING FIRE or explosion hazard Failure to follow safety warning exactly could result in serious injury, death, or property damage. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Page 4 IMPORTANT SAFETY INFORMATION Recognize safety symbols, WARNING words and labels Safety items throughout this manual are Please read all instructions before using labeled with a WARNING or CAUTION this laundry center. based on the risk type as described below: Definitions This Use &...
Page 5 IMPORTANT SAFETY INFORMATION • DO NOT dry articles containing rubber, WARNING - risk of fire plastic or similar materials such as bras, galoshes, bath mats, rugs, bibs, baby pants, plastic bags, and pillows To reduce the risk of fire, electrical that may melt or burn.
Page 6 IMPORTANT SAFETY INFORMATION Protect children • To prevent personal injury or damage to the laundry center, the electrical • DO NOT allow children to play power cord of a gas dryer must be on or in the laundry center. Close plugged into a properly grounded supervision of children is necessary and polarized 3-prong outlet.
Page 7 IMPORTANT SAFETY INFORMATION Prevent injury and damage to the heavy loads on top. The laundry appliance center is not meant to support To prevent serious personal injury and weight. damage to the laundry center: • To reduce the risk of electric shock, •...
Page 8: Features
FEATURES Dryer Washer Washer Controls Washer Lid Lock Location Dryer Controls Leveling Leg...
Page 9: Pre-Installation Requirements
PRE-INSTALLATION REQUIREMENTS  Installation Checklist Shipping hardware outdoors Gas supply (Gas Dryer) ‰ Foam shipping restraint (inside wash tub) removed and stored ‰ Manual shutoff valve present in supply ‰ Foam shipping support (underneath ‰ All connections sealed with appliance) removed and stored approved sealer and wrench tight Leveling ‰...
Page 10 PRE-INSTALLATION REQUIREMENTS Electrical system Grounding type wall receptacle requirements Do not, under  any circumstances, NOTE cut, remove, or bypass the grounding prong. Because of potentially inconsistent voltage capabilities, the use of this dryer with power created by gas powered generators, solar powered generators, wind powered generators or any other generator other than the local utility...
Page 11 PRE-INSTALLATION REQUIREMENTS Electrical requirements for Installation MUST conform with local codes, or in the absence of local laundry center with gas dryer codes, with the National Fuel Gas Code, ANSI Z223.1 (latest edition). WARNING 2. The gas supply line should be 1/2 inch (1.27 cm) pipe.
Page 12 PRE-INSTALLATION REQUIREMENTS Drain system requirements WARNING Drain capable of eliminating 17 gals (64.3 L) per minute. FIRE HAZARD Failure to follow these instructions can create 2. A standpipe diameter of 1-1/4 in. excessive drying times and fire hazards. (3.18 cm) minimum. 3.
Page 13 PRE-INSTALLATION REQUIREMENTS WARNING WARNING FIRE HAZARD FIRE HAZARD A clothes dryer must be exhausted Failure to follow safety warnings outdoors. DO NOT exhaust dryer into exactly could result in serious injury, a chimney, a wall, a ceiling, an attic, a death, or property damage.
Page 14 PRE-INSTALLATION REQUIREMENTS In installations where the exhaust MAXIMUM LENGTH system is not described in the charts, of 4” (102 mm) Rigid Metal Duct the following method must be used LONG VENT MODEL FLCE7523AW to determine if the exhaust system is VENT HOOD TYPE acceptable: Connect an inclined or digital...
Page 15 PRE-INSTALLATION REQUIREMENTS Rear flush exhaust requirements Manufactured or mobile The laundry center may be exhausted home installation four (4) ways with rear flush installation: Straight back with articulating elbow Installation MUST conform to current back. Manufactured Home Construction & 2. Down with articulating elbow down. Safety Standard, Title 24 CFR Part 3280 (formerly the Federal Standard 3.
Page 16 PRE-INSTALLATION REQUIREMENTS Ventilation Examples Installation in a recess or closet A dryer installed in a recess or closet, MUST be exhausted outdoors. 2. No other fuel burning appliance shall be installed in the same recess or closet as a gas dryer. 120 sq.
Page 17 PRE-INSTALLATION REQUIREMENTS Clearance requirements WARNING MINIMUM INSTALLATION CLEARANCES - Inches (cm) EXPLOSION HAZARD SIDES REAR FRONT DO NOT install the laundry center where gasoline or other flammables are kept or Alcove/ 0" 0" 0" stored. If the laundry center is installed Open recess (0 cm)
Page 18: Installation
INSTALLATION Laundry center dimensions Front view gas supply pipe on rear 17.6" of gas unit (45 cm) 9.4" (24 cm) 5.5" 77" (14 cm) (196.5 cm) 4 in. (102 mm) exhaust vent power cord on rear of unit attachment drain location on water supply hose-...
Page 19 INSTALLATION Unpacking instructions 4. Carefully lower the laundry center to an upright position and remove the tape holding the lid shut. Remove the IMPORTANT foam tub block, all foam inserts, and other tub contents. To prevent vibration, possible machine damage and maximize performance, the following steps must be completed.
Page 20 INSTALLATION Connecting the gas Remove the shipping cap from gas pipe at the rear of the dryer. IMPORTANT DO NOT connect the dryer to L.P. gas Shutoff Valve - Open position service without converting the gas valve. An L.P. conversion kit must be installed by a qualified gas technician.
Page 21 INSTALLATION Grounding the electric dryer (USA) WARNING WARNING ELECTRICAL SHOCK HAZARD • A U.L.-approved strain relief must Improper grounding of the laundry be installed onto power cord. If the center may cause serious injury or strain relief is not attached, the cord death.
Page 22 INSTALLATION For a grounded, cord-connected dryer: 2. The plug must be plugged into an appropriate outlet that is properly The laundry center MUST be installed and grounded in grounded. In the event of a accordance with all local codes malfunction or breakdown, and ordinances.
Page 23 INSTALLATION 6. Attach the remaining two power Turn off power supply to outlet. cord outer conductors to the outer, 2. Remove the screw securing the BRASS colored terminals on the terminal block access cover on the terminal block. Tighten both screws back of the dryer.
Page 24 INSTALLATION 8. Attach the RED and BLACK power 3. Press down on alternate cord conductors to the outer, BRASS corners and colored terminals on the terminal sides and block. Tighten both screws securely. feel for the slightest BRASS movement. terminals Adjust the appropriate leg(s) so the laundry center sits solidly on the floor on ALL four legs.
Page 25 INSTALLATION Tighten by hand until snug. Then tighten each supply connection another 2/3 turn with pliers. DO NOT cross thread or over-tighten these connections. 4. Connect the HOT inlet hose to the HOT water supply and Clamp the COLD inlet hose to the COLD water supply.
Page 26 INSTALLATION Grounding type wall receptacle Insert Less Than 8.5" (21.5 cm) Do not, under any circumstances, cut, remove, or bypass the grounding prong. Cable Tie Power cord with 3-prong grounded plug 2. Turn on the power at the circuit breaker/fuse box. 3.
Page 27: Controls And Settings
CONTROLS AND SETTINGS Washer controls and settings This manual covers many models and not all cycles, options, or features listed are available on every model. Consoles shown above for reference only. Your model may differ. Wash cycle selection Rinse & Spin Select this cycle for loads that require a cold water rinse or to add fabric softener For best results...
Page 28 CONTROLS AND SETTINGS Wash cycle settings MaxFill Select the MaxFill water level setting if Wash temp (water temperature) the tub is over one half (1/2) full. Med (Medium) Select the Medium water level setting if the tub is between one third (1/3) and one half (1/2) full.
Page 29 CONTROLS AND SETTINGS Washer setting chart These temperatures and water levels are available with the following cycles Wash Temperature         Warm          Cold   ...
Page 30 CONTROLS AND SETTINGS Wash cycle indicator lights WARNING The washing cycle indicator lights To reduce the risk of fire or serious provide information injury to persons or property, comply during the wash with the basic warnings listed below: cycle. • Read and comply with all instructions The Close Washer on stain removal products.
Page 31 CONTROLS AND SETTINGS Dryer controls and settings This manual covers many models and not all cycles, options, or features listed are available on every model. Consoles shown above for reference only. Your model may differ. Dry cycle selection Auto dry cycles ...
Page 32 CONTROLS AND SETTINGS Timed dry cycles High Recommended for durable fabrics and towels. WARNING Normal Recommended for most cotton fabrics. FIRE HAZARD To avoid fire hazard, DO NOT use heat Recommended for delicate fabrics. to dry items containing feathers or down, foam rubber, plastics similarly textured, rubber-like materials.
Page 33 CONTROLS AND SETTINGS Drying cycle controls Drying cycle indicator lights (Start, Pause, and Cancel) The drying cycle START indicator lights Press DRYER provide information START|PAUSE button during the dry cycle. once to begin the drying cycle. The unit will emit T h e C l o s e D r ye r one beep before the Door advisory LED...
Page 34: Operating Instructions
OPERATING INSTRUCTIONS Operating the washer CAUTION WARNING To avoid serious personal injury, DO NOT operate washer if safety lid lock To reduce the risk of fire, electric shock is missing, damaged or operating or injury to persons, read the Important improperly.
Page 35 OPERATING INSTRUCTIONS STEPS TIPS IMPORTANT 4. Add liquid • The amount of detergent • For best results add the detergent/ required depends on the type recommended quantity of detergent of detergent, load size, and detergent packs (One or Two) packs or water hardness.
Page 36 OPERATING INSTRUCTIONS STEPS TIPS IMPORTANT 8. Add liquid • Add diluted fabric softener • To prevent staining, do not to the final rinse following pour liquid fabric softener fabric fabric softener manufacturer’s directly on to wash load. softener to instructions. the final rinse •...
Page 37 OPERATING INSTRUCTIONS Operating the dryer WARNING CAUTION To reduce the risk of fire, electric shock • DO NOT operate dryer without lint or injury to persons, read the Important filter in place. Safety Information in this Use & Care • ALWAYS clean filter after each load. Guide before operating your dryer.
Page 38 OPERATING INSTRUCTIONS STEPS TIPS IMPORTANT 4. Select the • See Drying Cycle Selection and Drying • For best results, cycle and Cycle Settings on the following pages. follow fabric care settings for label on items to • Over-drying can cause wrinkles, shrinkage, each load.
Page 39: Stain Removal Guide
STAIN REMOVAL GUIDE Safe stain removal procedures WARNING • Remove stains promptly. • Follow the recommended treatment Never use highly flammable solvents, in the stain removal chart on the next such as gasoline, inside the home. page. Vapors can explode on contact with flames or sparks.
Page 40 STAIN REMOVAL GUIDE Stain Removal Suggestions STAIN TREATMENT Adhesive tape, Apply ice. Scrape off excess. Place stain face down on paper rubber cement, towels. Saturate with prewash stain remover or nonflammable dry cleaning fluid. Baby formula, dairy Use product containing enzymes to pretreat or soak stains. products, egg Soak for 30 minutes or more.
Page 41: Care And Cleaning
CARE AND CLEANING Cleaning Inside of Dryer WARNING WARNING FIRE HAZARD A clothes dryer produces combustible lint. The dryer must be connected to an FIRE HAZARD / outdoors exhaust. Regularly inspect the HARMFUL VAPOR HAZARD outdoor exhaust opening and remove DO NOT use any type spray cleanser when any accumulation of lint around the cleaning the dryer interior.
Page 42 CARE AND CLEANING • The base plate or tub may become stained from fabric dye. Clean these parts with a nonabrasive household cleanser. This prevents dye transfer to future loads. IMPORTANT DO NOT store or place laundry products on top of laundry center at any time.
Page 43 CARE AND CLEANING Winterizing Instructions Water inlet hose inspection Periodically inspect all water inlet hoses for water leaks, wear, cuts, corrosion and IMPORTANT bulges. Replace all hoses, if any sign of the above is visible. All hoses should be Winterize the laundry center if it replaced every 5 years to reduce the risk is stored in an area where freezing of hose failures.
Page 44: Troubleshooting
TROUBLESHOOTING Common washing inquiries Many washing problems involve poor soil and stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these suggestions provided by The Soap and Detergent Association. PROBLEM POSSIBLE SOLUTIONS PREVENTIVE CAUSES MEASURES Blue stains •...
Page 45 TROUBLESHOOTING Common washing inquiries (continued) PROBLEM POSSIBLE SOLUTIONS PREVENTIVE CAUSES MEASURES Pilling • Pilling is normal • Use a lint brush or • Use fabric softener with synthetic shaver to remove pills. in washer to lubricate (Fibers ball and permanent fibers.
Page 46 TROUBLESHOOTING Common drying inquiries Many drying problems involve poor drying results, excess lint and residues of lint and scum, and fabric damage. For satisfactory drying results, follow these suggestions provided by The Soap and Detergent Association. PROBLEM POSSIBLE SOLUTIONS PREVENTIVE MEASURES CAUSES Greasy, oily •...
Page 47 TROUBLESHOOTING Before Calling Before calling for service, review this list. It may save both time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this laundry center. PROBLEM POSSIBLE CAUSES SOLUTIONS NOISE Rattling and •...
Page 48 TROUBLESHOOTING Before Calling (continued) PROBLEM POSSIBLE CAUSES SOLUTIONS No sound • The chime feature has been • Press and hold the Wash Temp muted button for 3 seconds to unmute from button the chime (on some models). Once press or unmuted, the sound from the button end of cycle press and end of cycle reminder will...
Page 49 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS Excessive • Dryer is overloaded. • DO NOT overload. See Operating Instructions. wrinkling • Items left in dryer too long. • Remove items as soon as cycle ends. • Insufficient sorting of items. • See Operating Instructions. •...
Page 50 TROUBLESHOOTING Before Calling (continued) PROBLEM POSSIBLE CAUSES SOLUTIONS Water does • Washer lid is open. • Close washer lid. The washer will not operate when the lid is open. not enter washer or it • Water supply is not adequate •...
Page 51: Limited Warranty
Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice. Canada 1.800.265.8352 1-800-374-4432 Electrolux Canada Corp. Frigidaire 5855 Terry Fox Way 10200 David Taylor Drive Mississauga, Ontario, Canada Charlotte, NC 28262 L5V 3E4...
Page 52 Our home is your home. Visit us if you need help with any of these things: owner support accessories service registration (See your registration card for more information.) Frigidaire.com 1-800-374-4432 Frigidaire.ca 1-800-265-8352...

Frigidaire FLCE752CAW Use & Care Manual

Table of Contents

Frequently Asked Questions (15)

Need help?

Questions and answers

Related Manuals for Frigidaire FLCE752CAW

Summary of Contents for Frigidaire FLCE752CAW

Table of Contents
